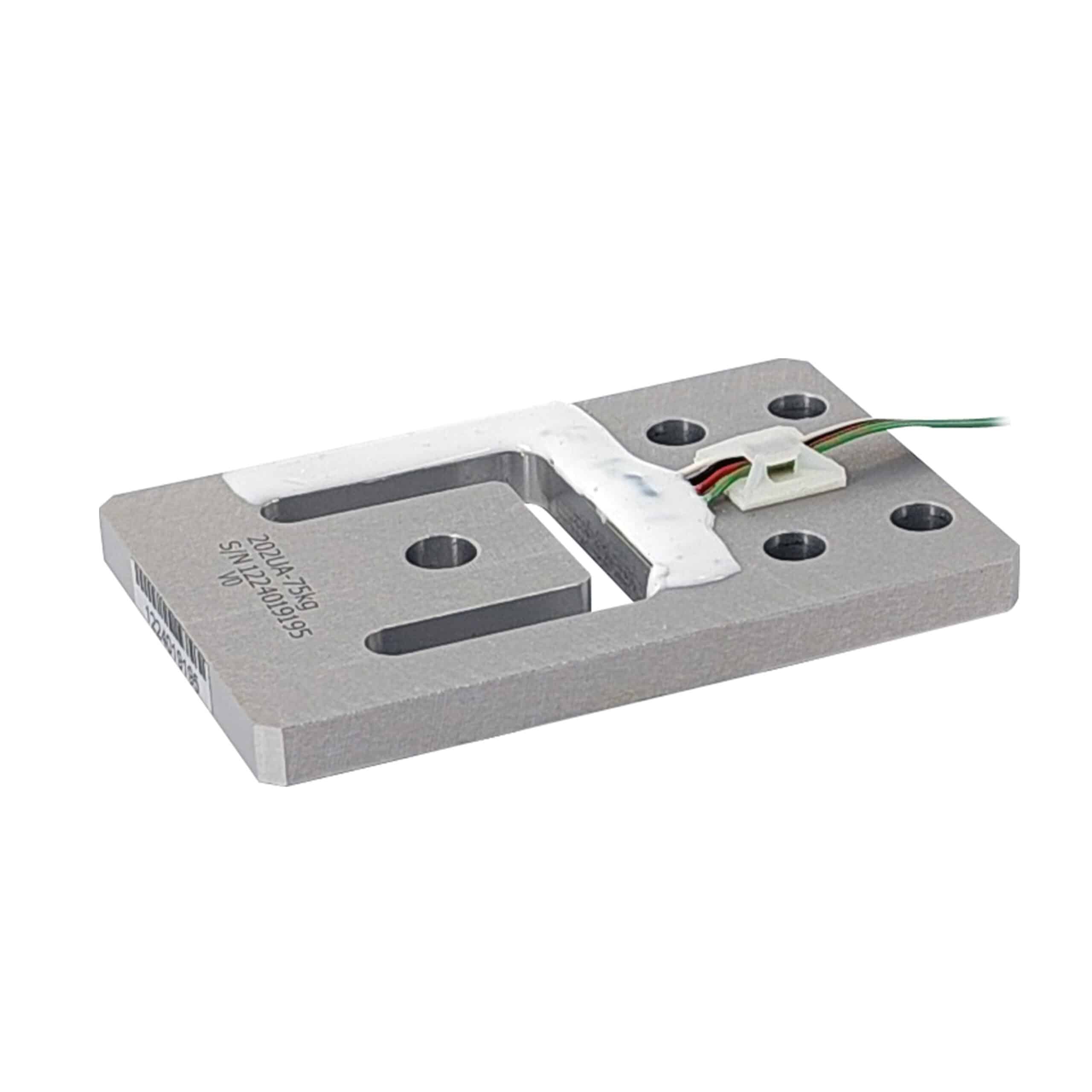

ANYLOAD 202UA Low-Profile Aluminum Planar Load Cell

The ANYLOAD 202UA Low-Profile Aluminum Planar Load Cell is commonly used in postal scales, retail check out scales, medical equipment, airport baggage measurements, and other applications where the space is limited.

Environmentally sealed, the 202UA has an IP65 protection rating that makes it able to withstand exposure to dust and water jets.

$84.00$144.00

Clear
SKU: AL-202UA Categories: ,
Weight1 lbs
Capacity

, , , ,

Key Features

This miniature load cell is designed to provide reliable, precise weight measurements in applications where space is limited.

  • Aluminum material
  • Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
  • Full Scale Output: 0.9mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP65
  • CE and RoHS certified

Available options: 202UA-3.75kg, 202UA-7.5kg, 202UA-75kg, 202UA-150kg, 202UA-375kg

Please contact us with any product interfacing inquiries.



Interchangeable Cross Reference
ManufacturerModel
FlintecPB
Rice LakeRL BLP
202UA Low-Profile Aluminum Planar Load Cell Specifications
Rated Capacity3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
Full Scale Output0.9mV/V ± 0.1%
Zero Balance± 0.02mV/V
Non-linearity< ± 0.020%
Repeatability< ± 0.017%
Hysteresis Error< ± 0.015%
Creep in 30 minutes< ± 0.015%
Input Resistance1190Ω ± 10Ω
Output Resistance1000Ω ± 10Ω
Recommended Excitation10V (15V Maximum)
Insulation Resistance> 2GΩ (50V DC)
Temperature Effect on Sensitivity< ± 0.0015% of Cn/k
Temperature Effect on Zero Balance< ± 0.0030% of Cn/k
Compensated Temperature Range10°C to 50°C/14°F to 122°F
Service Temperature Range30°C to 70°C/-20°F to 160°F
Storage Temperature Range-50°C to 85°C/-58°F to 185°F
Safe Overload150% of full scale
Breaking Overload300% of full scale
Seal TypeEnvironmentally sealed
IP RatingIP65
