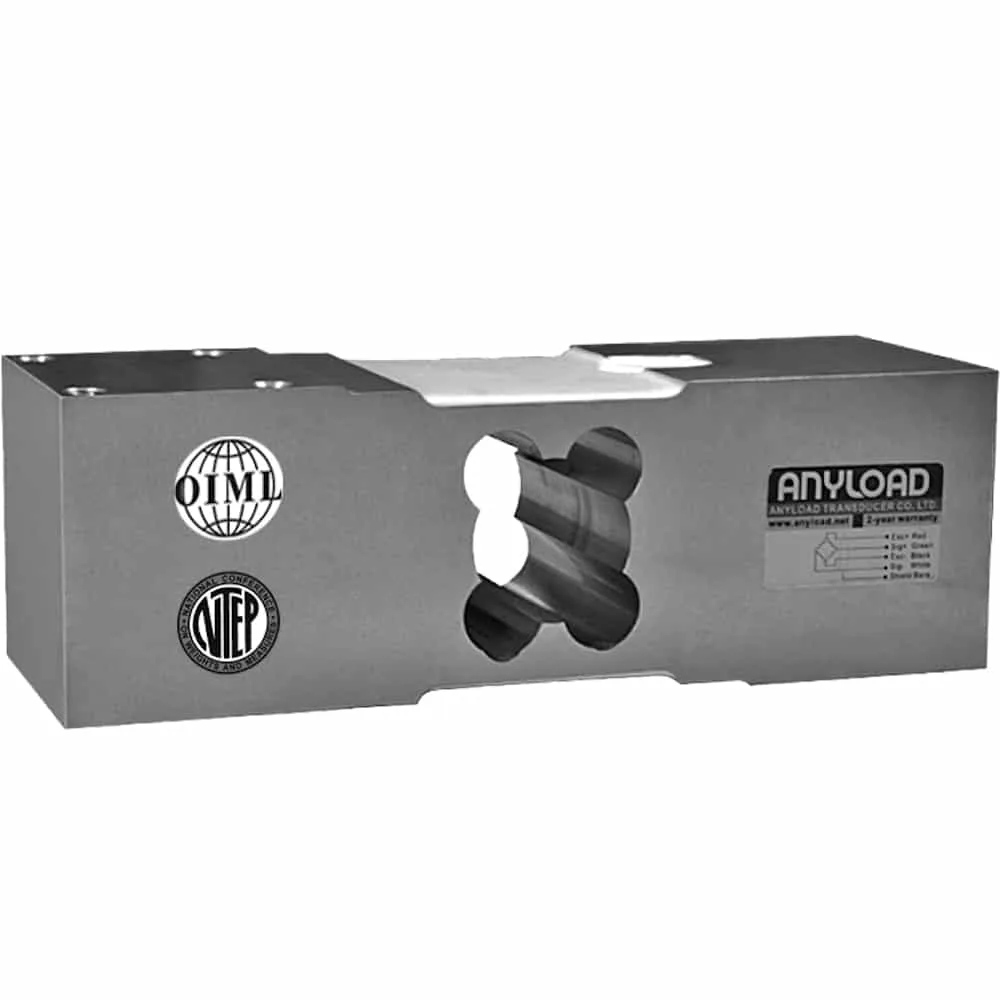

ANYLOAD 108MA Aluminum Single Point Load Cell
The ANYLOAD 108MA is widely used in process supervision systems, packaging devices, and other mid-weight industrial weighing applications. Available in capacities from 50kg to 660kg, its aluminum body is rated IP66. Complies with multiple industry standards. The 108MA has metric mounting threads; for imperial, see the 108MAUN.
| Quantity | Price |
|---|---|
| 1 - 9 | $215.00 |
| 10 - 24 | $204.25 |
| 25 - 49 | $197.80 |
| 50 - 99 | $191.35 |
| 100 + | $182.75 |
ANYLOAD 108MA Key Features
- Aluminum material
- Thread: Metric
- Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:4000 Class III, Single Cell certified from 200kg-2t
- OIML C3 certified from 50kg-500kg
- CE and RoHS certified
Available options: 108MA-50kg, 108MA-75kg, 108MA-100kg, 108MA-150kg, 108MA-200kg, 108MA-250kg, 108MA-300kg, 108MA-500kg, 108MA-635kg, 108MA-660kg
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 108MA Load Cell Specifications
| Rated Capacity | 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg |
| Reference Max. Platform Size | 610mm x 700mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.017% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Technical Documents
 |
108MA Single Point Load Cell Datasheet |
|
CE Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108MA Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Mettler-Toledo | MT1260 |
