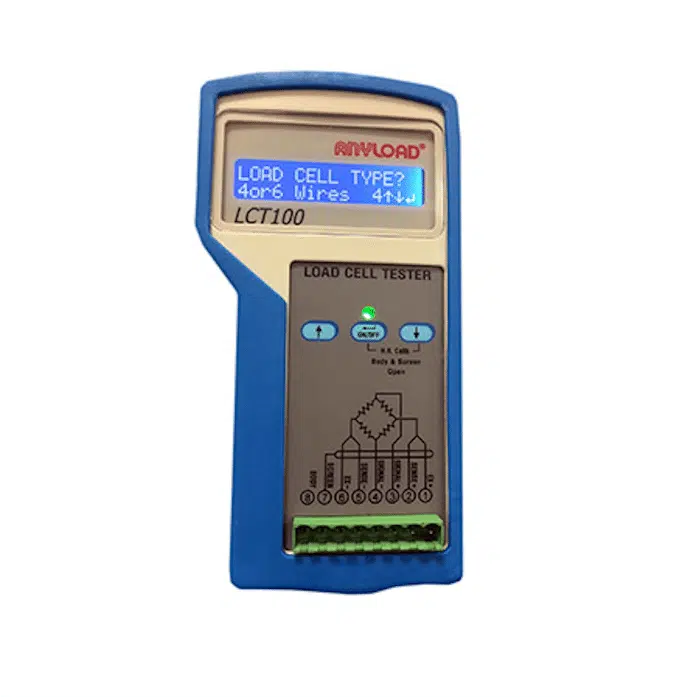

• photo of an anyload multi-tester device to troubleshoot load cells

ANYLOAD LCT100 Load Cell Tester

The ANYLOAD LCT100 Load Cell Tester is a stand-alone hand-held device to fully troubleshoot strain gauge load cells. It is very user-friendly and can check all standard load cells available in the market (4 or 6 wires at all rated gain output).

$2,483.00

Quantity Price
1 - 9 $2,483.00
10 - 24 $2,358.85
25 - 49 $2,284.36
50 - 99 $2,209.87
100 + $2,110.55
Tacuna Systems Price Match Guarantee

ANYLOAD LCT100 Key Features

  • Compatible with any standard 4 or 6 wire load cell at all rated gain/output levels
  • Provides the user with all essential data needed about the tested load cell: Bridge resistance and integrity, physical distortion and insulation resistance
  • Can be used to check multi load-cell scale alignment
  • Continuous signal reading enables testing linearity and repeatability
  • Full test within seconds
  • Enclosure material: ABS
  • Battery supply: 4 AA batteries

This device replaces the following, traditionally used to properly test a load cell:

Required Test Traditionally Required Equipment
Bridge resistance and cable integrity DVM (Digital Voltmeter)
Insulation to detect moisture ingress Megger tester to check up to 5000 Mega Ohms resistance
Zero balance to point on physical distortion or metal fatigue 5.5 Digits DVM Power Supply Calculator
Linearity 5.5 Digits DVM Power Supply Calculator

All the above required tests can now be easily conducted and finished in less than a minute with the Load Cell Tester-LCT100.

Contact us for any inquiries on load cell interfacing.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Specifications

ANYLOAD LCT100 Specifications

Input and Output Resistance Up to 5000Ω at 0.5Ω resolution
Sense Resistance ( for 6-wire L/C ) Up to 500Ω at 0.1Ω resolution
Insulation Resistance Max:> 5000 MΩ, Min:<10HΩ
Load Cell Output in percentage of full scale ± 250% at 0.01% resolution (input resistance > 175Ω)
Gain Adjustment 0.1 – 5mV/V in steps of 0.01mV/V
Bridge Testing 1.25V DC
High Resistance Testing 10V DC
A/D Resolution 16 bits
Resistance Accuracy ± 0.5Ω
High Resistance Accuracy ± 10%
Load Cell Output Accuracy 0.1%
Power Source 4 AA batteries
Connector 8-pin screw terminal
Enclosure Material ABS
Display 16×2 alphanumeric
Size 150mm x 80mm x 28mm
5.9in x 3.15in x 1.1in
Weight 250 grams
8.8 oz (without batteries)
