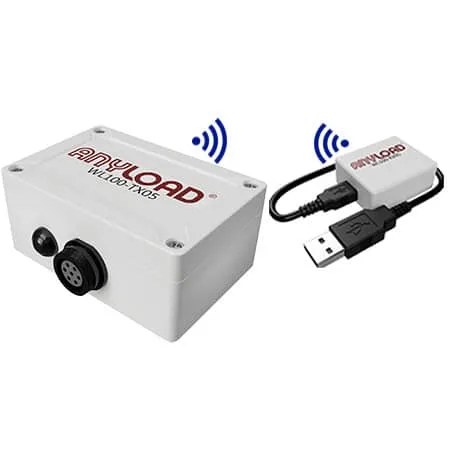

ANYLOAD WL100 Wireless Transmitter-Receiver
The ANYLOAD WL100 is an ultra-low power, high-accuracy wireless transmitter and receiver set. It is compatible with any resistive bridge sensor.
The WL100 transmitter converts any load cell, scale, pressure sensor, torque sensor and resistive sensor to wireless. Additionally, its receiver can collect data from multiple sensors. Boasting 7000 hours of operation on 4 AA batteries, it offers 1000m outdoor or 70m indoor transmission range.
$1,313.00
WL100 Wireless Transmitter Receiver Key Features
- Worldwide Emissions Standard Approval
- Transmission Frequency: 2.4Ghz ISM Band
- No External Antenna
- Supports up to eight 350-ohm load cells
- 1000 Meters Outdoor and 70 Meters Indoor Range
- AES-128 Wireless Encryption
- 7000 Hours of Operation on 4 AA Batteries
- 0.002% Full Scale Electronic Accuracy
- Software available at this link
Contact us for any inquiries prior to purchase.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
WL100 General Specifications
| Wireless Frequency | 2.4 GHz ISM Band |
| Transmission Range | Up to 70m indoors; 1000m outdoors without obstruction |
| Wireless Security | AES-128 Encryption |
| Bridge Resistance Options | Up to 8 350Ω load cells; minimum 40Ω; Higher resistance recommended (minimum 1000Ω) to extend battery life |
| Electronics Accuracy | 0.002% of full scale |
| Power Supply | 4xAA Batteries |
| Operation Time | Up to 7000 hours with a 350Ω bridge and 1Hz sampling rate |
| Storage Temperature | -40°C to 80°C / -40°F to 176°F without battery |
| Operating Temperature | -10°C to 50°C / 14°F to 122°F |
| Dimensions | 45 mm x 30 mm x 15 mm (without battery) |
Technical Documents
 |
Datasheet for ANYLOAD WL100 |
 |
Manual for WL100 |
 |
WL100 Introduction Video |
