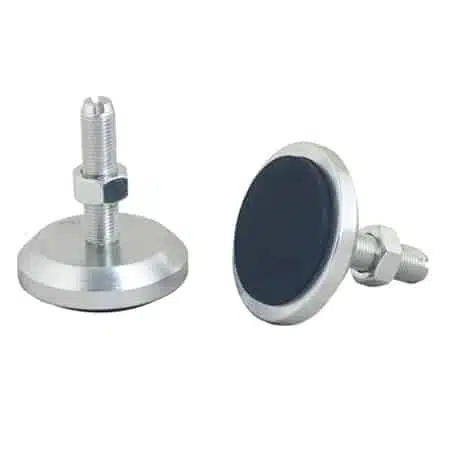

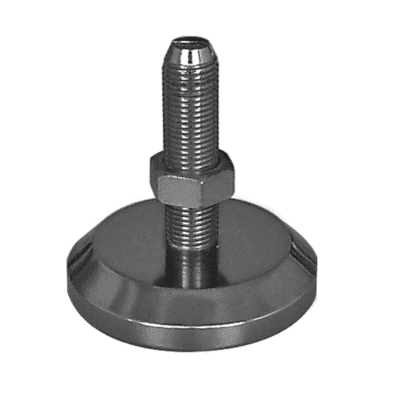

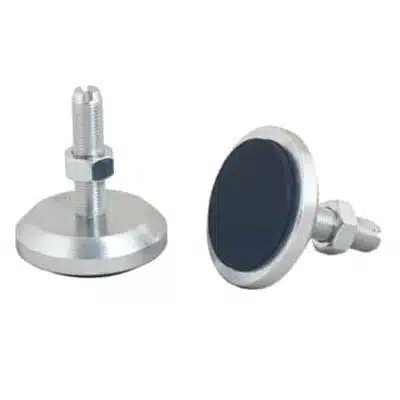

ANYLOAD FMF Load Cell Feet

$21.00$40.00

ANYLOAD FMF mounting feet are made of hardened alloy steel. They feature a rubber elastomeric base for grip. Also, the top of their threaded stud is 10% less in diameter than the threaded portion for easier installation. These mounting feet are adjustable in height and have a fixed foot design.

This product is designed for use in scales on flat surfaces. For environments with uneven flooring, see the ANYLOAD AMF-F mounting foot.

Clear
SKU: FMF Category:

ANYLOAD FMF Key Features

  • Alloy steel with plated finish
  • Rubber elastomeric base
  • Adjustable height
  • Includes jam nut
  • Imperial thread sizes: 1/2″ (20UNF), 3/4″(16UNF)
  • Metric thread sizes: M12, M18
  • 50mm, 60mm or 70mm base circumference options

Available standard options: FMF50-20UNF (50mm base circumference; 1/2″ threads), FMF60-20UNF (60mm base circumference; 1/2″ threads), FMF70-16UNF (70mm base circumference; 3/4″ threads)

Other options available. Please contact us with any questions.

Technical Documents

pdf icon    FMF Datasheet
