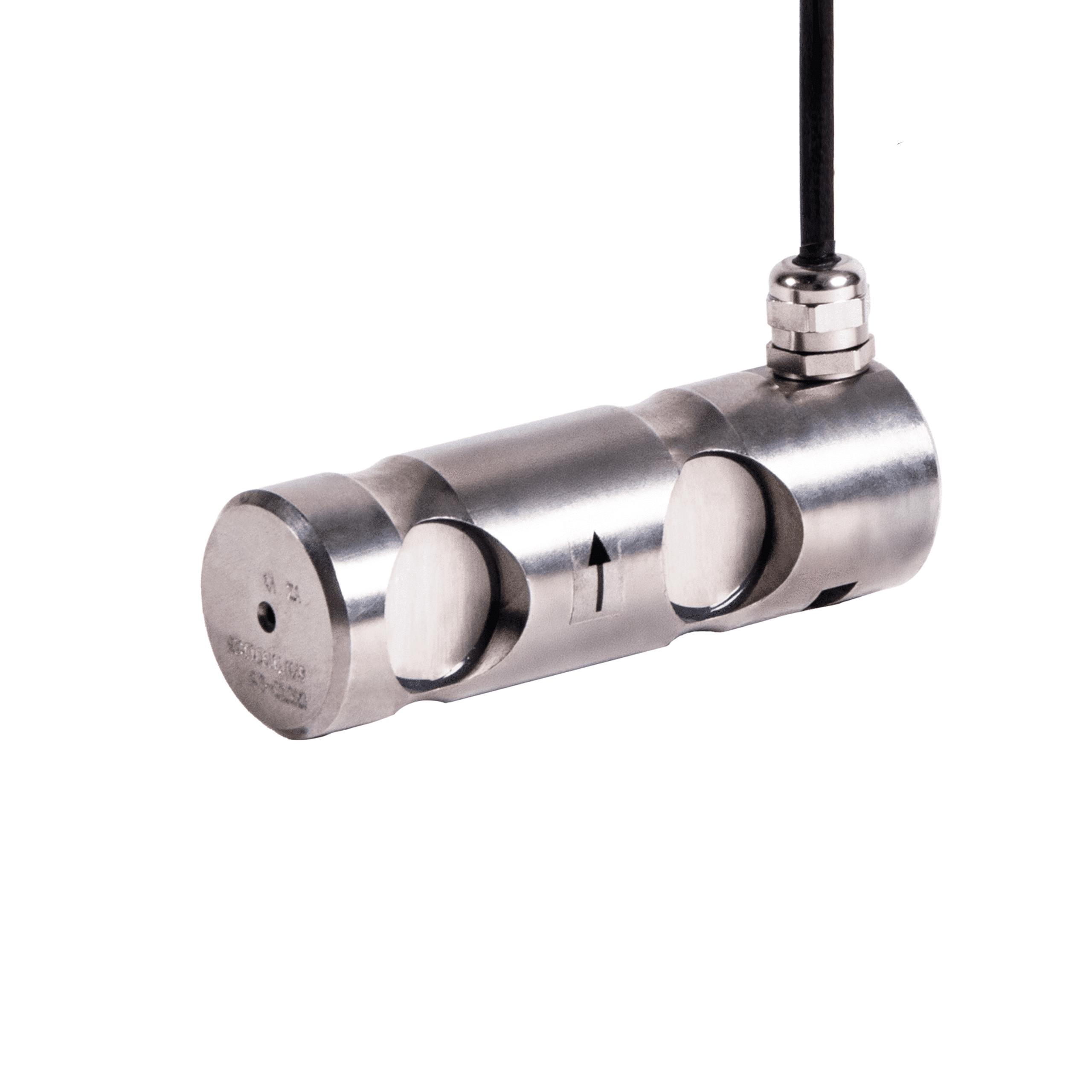

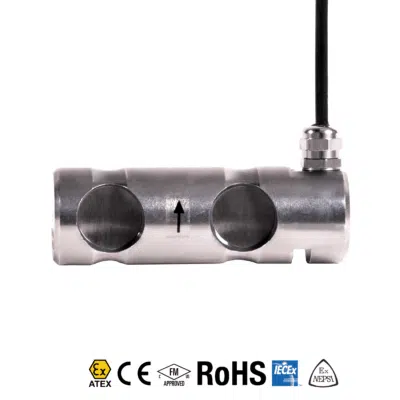

ANYLOAD 535TS Stainless Steel Load Pin
The ANYLOAD 535TS load pin is constructed with 2Cr13 stainless steel and comes in 2t, 5t, 10t, 20t, 40t, 70t, and 100t capacities. Environmentally sealed, it offers IP67 ingress protection.
Custom dimensions and capacities are available—please contact us with any product interfacing inquiries.
| Quantity | Price |
|---|---|
| 1 - 9 | $675.00 |
| 10 - 24 | $641.25 |
| 25 - 49 | $621.00 |
| 50 - 99 | $600.75 |
| 100 + | $573.75 |
ANYLOAD 535TS Key Features
- 2Cr13 Stainless steel
- Rated Capacities: 2t, 5t, 10t, 20t, 40t, 70t, 100t
- Full Scale Output: 1mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex certified
Available options: 535TS-2000kg-YZ, 535TS-5000kg-YZ, 535TS-10000kg-YZ, 535TS-20000kb-YZ, 535TS-40000kb-YZ, 535TS-70000kb-YZ, 535TS-100000kg-YZ
Please contact us with any product interfacing inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD 535TS Load Pin Specifications

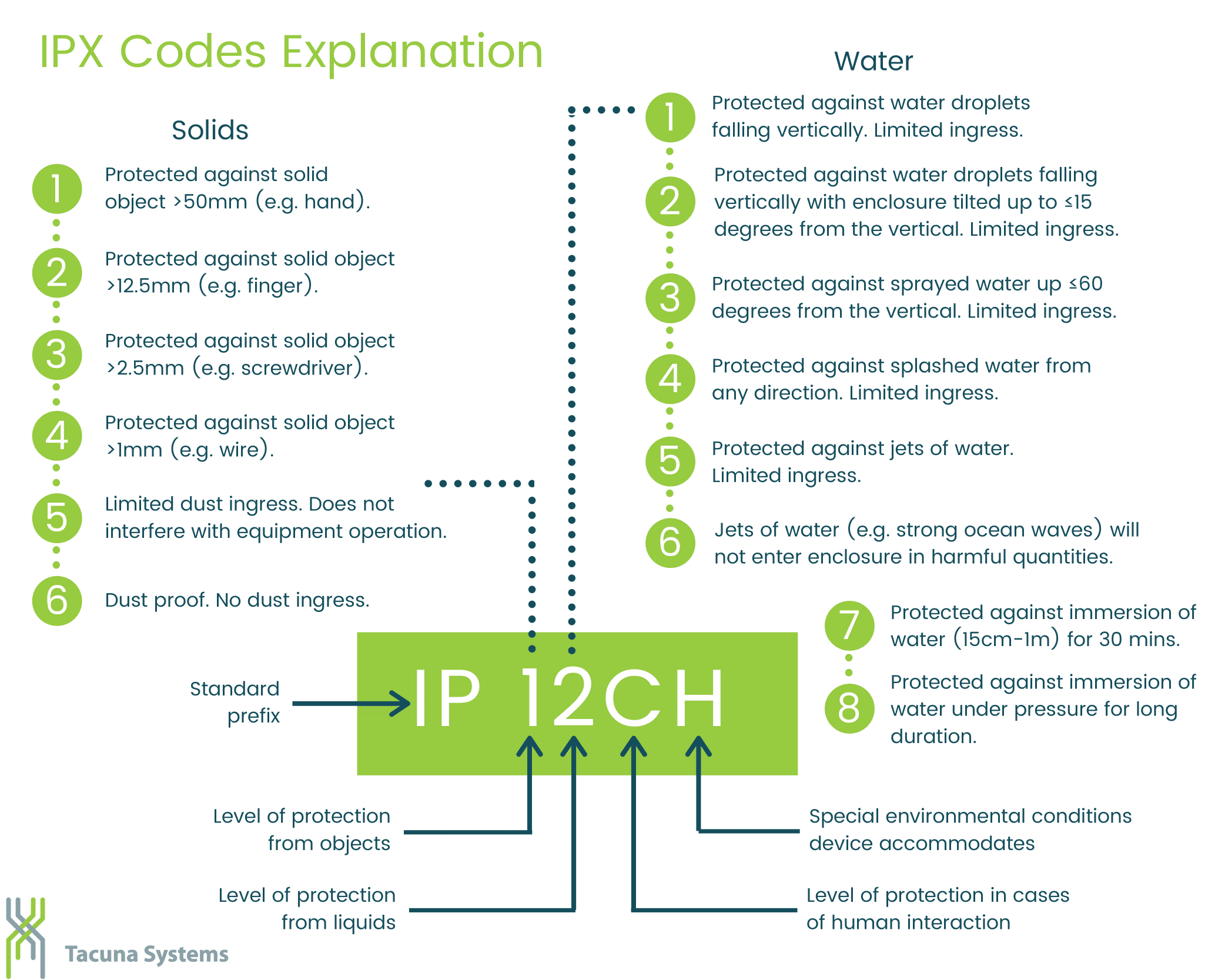

| Rated Capacity | 2t, 5t, 10t, 20t, 40t, 70t, 100t |
| Full Scale Output | 1mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.50% |
| Repeatability | < ± 0.30% |
| Hysteresis Error | < ± 0.50% |
| Creep in 30 minutes | < ± 0.20% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.020% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.020% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Technical Documents
 |
ANYLOAD 535TS Stainless Steel Load Pin Datasheet |
|
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
