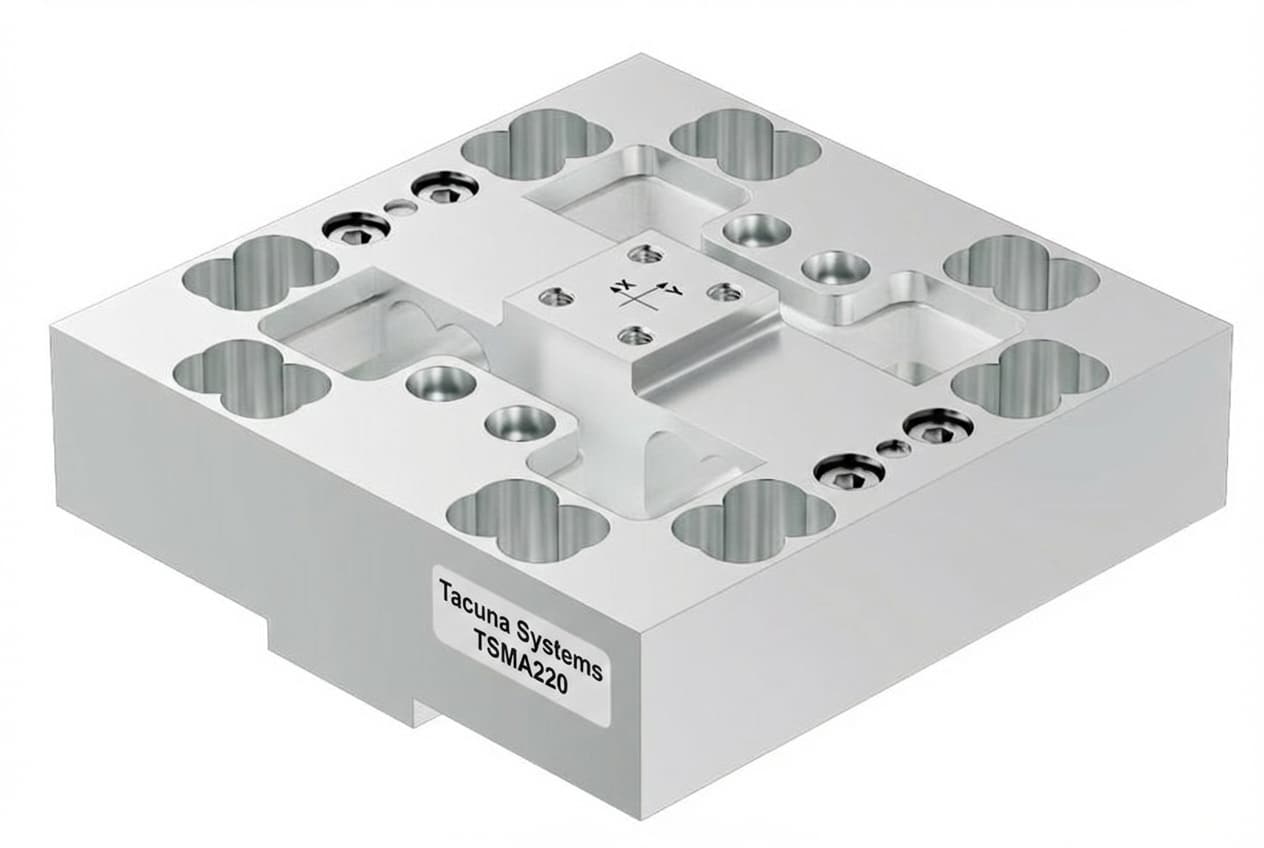

Tacuna Systems TSMA220 3-Axis Load Cell
The Tacuna Systems TSMA220 3-Axis Load Cell is engineered for precise multidirectional force measurement. It features three independent full bridge outputs with capacities of 100N, 200N, 500N, and 1000N and a safe overload of 150% FS. Delivering reliable precision from -35°C to +70°C, it features a linearity error of ≤±0.2% FS, and temperature sensitivity of ≤±0.2% FS/10°C. The device includes 3, 2-meter cables from a robust aluminum alloy spring element.
For lesser rated capacities, see the TSMA110 3-axis load cell.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,695.00 |
| 10 - 24 | $1,610.25 |
| 25 - 49 | $1,559.40 |
| 50 - 99 | $1,508.55 |
| 100 + | $1,440.75 |
Tacuna Systems TSMA220 3-Axis Load Cell Features
The Tacuna Systems TSMA220 3-Axis Load Cell offers a highly precise and durable solution for applications requiring simultaneous multi-axis analysis. This innovative load cell provides three independent full-bridge outputs with capacities of 2000N and 5000N, and a maximum safe overload of 150% FS.
With an impressive accuracy class, linearity error of ≤±0.2% FS, and a sensitivity impact due to temperature changes also capped at ≤±0.2% FS/10°C, the TSMA220 ensures reliable performance across a temperature range of -35°C to +70°C. Its robust, aluminum alloy construction includes 3, 2-meter cables with a 3.8mm diameter.
- Material: Aluminum Alloy
- Rated Capacities: 2000N, 5000N
- High Accuracy: ≤±0.2% FS
- Linearity Error: ≤±0.2% FS
- Temperature Stability: ≤±0.2% FS per 10°C.
- Output Sensitivity: 1.0±0.1 mV/V.
- Electrical Resistance: 350±10Ω.
- High Insulation Resistance: ≥5000 MΩ at 50 VDC
- Zero Balance: ±0.1 mV/V
- Temperature Range: -10°C to +40°C and -35°C to +70°C.
- Excitation Voltage: 5V to 10V DC, with a maximum of 18V DC.
- Safe Overload: 150%
- Cable Specifications: 2m cable with a diameter of Φ3.8mm
Available Options: 2000N & 5000N.
Please Contact us with any product-related questions.
Specifications
The Tacuna Systems TSMA220 Load Cell Specifications
| Rated Capacity | 2000N, 5000N |
| Material | Aluminum Alloy |
| Accuracy Class | ±0.2% FS |
| Linearity Error | 0.2% FS |
| Temperature Effect on Sensitivity | ±0.2% FS per 10°C |
| Temperature Effect on Zero | ±0.2% FS per 10°C |
| Output Sensitivity | 1.0 ± 0.1 mV/V |
| Input Resistance | 350 ± 10O |
| Output Resistance | 350 ± 10O |
| Insulation Resistance | 5000 MO at 50V DC |
| Zero Balance | ±0.1 mV/V |
| Temperature Compensation Range | -10°C to +40°C |
| Temperature Allowance Range | -35°C to +70°C |
| Recommended Excitation | 5 to 10 V DC |
| Maximum Excitation | 18 V DC |
| Safe Overload | 150% of Full Scale |
| Force Measurement | Multidirectional with 3 independent full-bridge outputs |
| Cable Length | 2 Meters |
| Cable Diameter | F3.8 mm |
