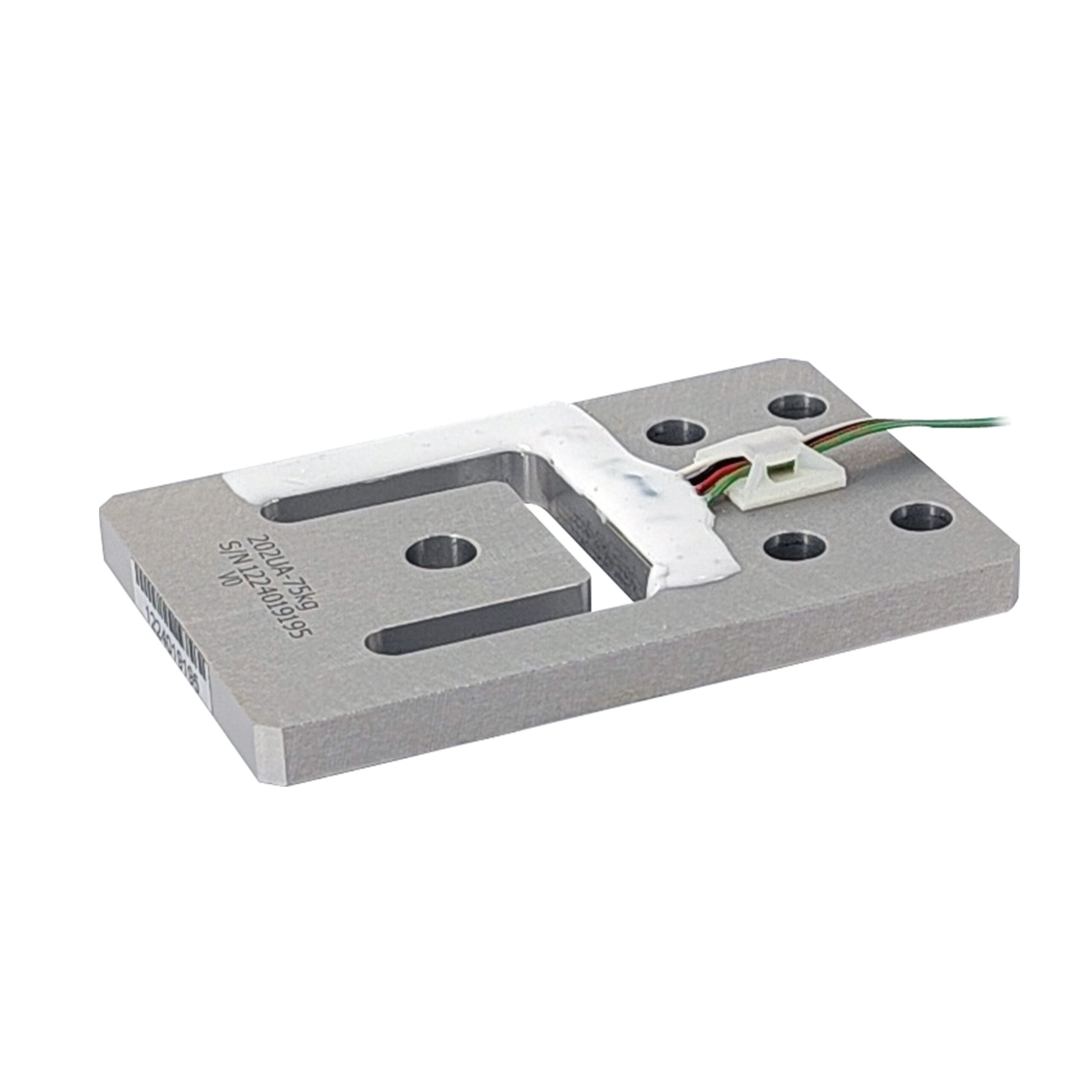

ANYLOAD 202UA Low-Profile Aluminum Planar Load Cell
The ANYLOAD 202UA Low-Profile Planar Load Cell is popular in postal scales, retail checkout, medical equipment, airport baggage scales, and other applications where the space is limited. With its environmentally sealed aluminum body, the 202UA has an IP65 protection rating. This product comes in 7.5kg, 75kg, 150kg, and 375kg capacities.
See the ANYLOAD 202WH for a steel planar load cell option.
| Quantity | Price |
|---|---|
| 1 - 9 | $84.00 |
| 10 - 24 | $79.80 |
| 25 - 49 | $77.28 |
| 50 - 99 | $74.76 |
| 100 + | $71.40 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 202UA Aluminum Planar Load Cell Features
This planar load cell provides reliable, precise weight measurements in applications where space is limited.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
- Full-Scale Output: 0.9mV/V ± 0.1%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS-Certified
Available Options: 3.75kg, 7.5kg, 15kg, 75kg, 150kg, 375kg
Please Contact us with any product-related questions.
Specifications
ANYLOAD 202UA Load Cell Specifications
| Rated Capacity | 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg |
| Full-Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.020% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.015% |
| Creep in 30 minutes | < ± 0.015% |
| Input Resistance | 1190Ω ± 10Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0015% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |
Technical Documents
 |
ANYLOAD 202UA Low-Profile Aluminum Planar Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 202UA Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Flintec | PB |
| Rice Lake | RL BLP** |
**C1 of RL BLP is of 1/2-20 UNC
