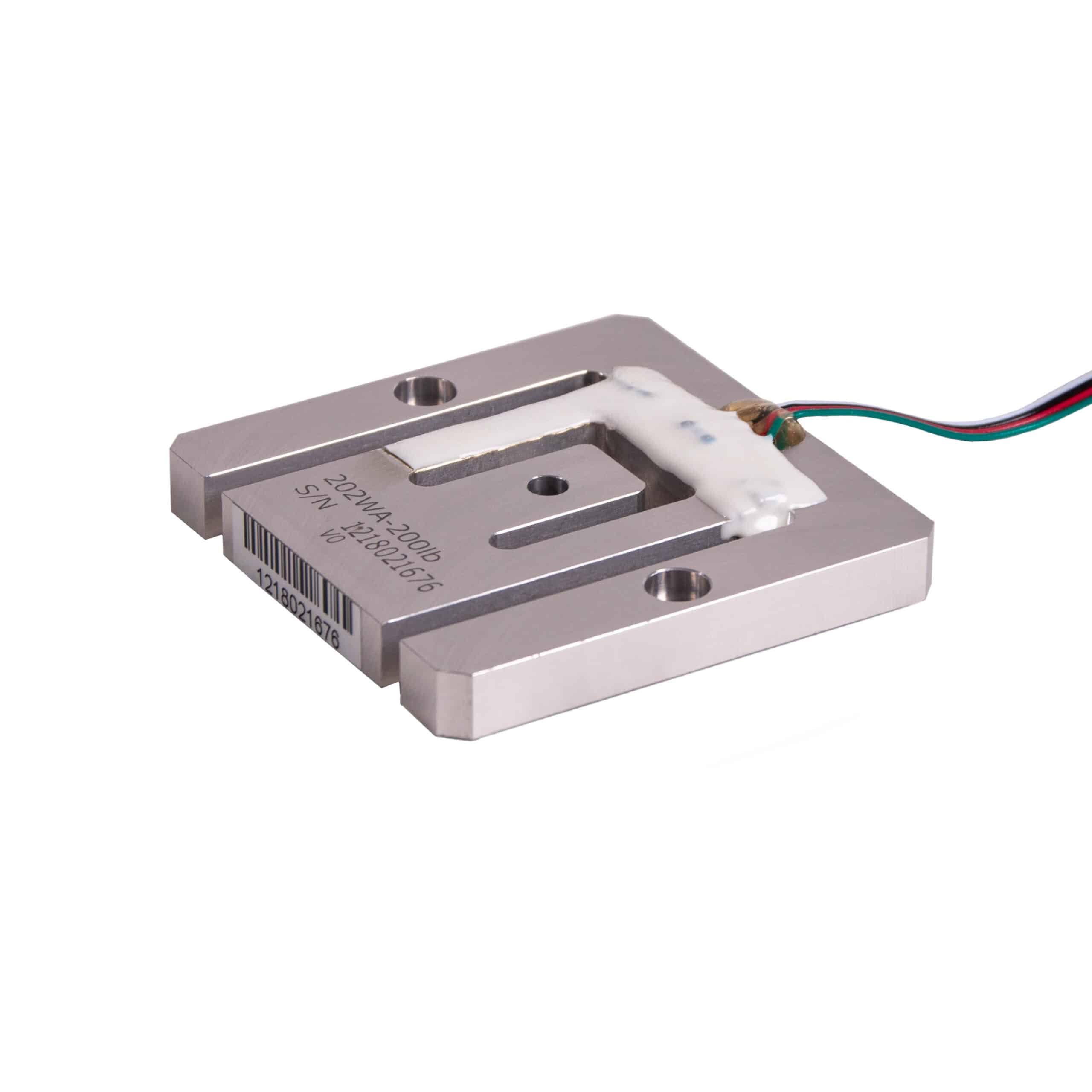

ANYLOAD 202WA Low-Profile Aluminum Planar Load Cell
The ANYLOAD 202WA Low-Profile Aluminum Planar Load Cell is a compact device optimized to provide accurate weight measurements in limited-clearance applications. Rated IP65, is appropriate for harsh environments. It also meets leading safety standards. This product is available in 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, and 300kg capacities.
See the ANYLOAD 202WH for a steel planar load cell option.
| Quantity | Price |
|---|---|
| 1 - 9 | $96.00 |
| 10 - 24 | $91.20 |
| 25 - 49 | $88.32 |
| 50 - 99 | $85.44 |
| 100 + | $81.60 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference3d
- Reviews (0)
ANYLOAD 202WA Features
This planar load cell is designed to provide reliable, precise weight measurements in applications where space is limited.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, 300kg
- Full-Scale Output: 0.9mV/V ± 0.05%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150%
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS Certified
Available Options: 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, & 300kg.
Please Contact us with any product-related questions.
Specifications
ANYLOAD 202W Load Cell Specifications
| Rated Capacity | 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, 300kg |
| Full-Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 1204Ω ± 5Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |
Technical Documents
 |
ANYLOAD 202WA Low-Profile Aluminum Planar Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
202WA-(12.5-18.75)lb |
|
202WA-25lb |
|
202WA-37.5lb |
|
202WA-50lb |
|
202WA-100lb |
|
202WA-200lb |
|
202WA-200kg |
|
202WA-300kg |
Interchangeable Cross Reference3d
ANYLOAD 202WA Interchangeable Cross Reference
| Manufacturer | Equivalent Model |
| Flintec | PBW |
