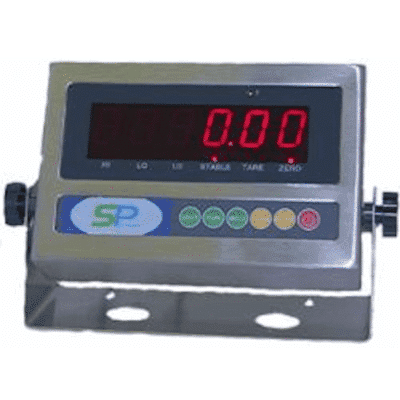

AmCells DIN-3 Digital Indicator



The AmCells DIN-3 is a versatile, general purpose digital indicator with counting and check-weighing functions. The keypad features sealed, color-coded membrane switches and a fast, accurate, 1″ digit LED for easy reading. All AmCells DIN-3 indicators include automatic zero tracking, audible alarm for pre-set weights, and automatic tare. They also feature an accumulation function that stores individual measurements and recalls them as an accumulated total.

This indicator is compatible with all capacities and brands of load cells sold by Tacuna Systems.

$650.00

Quantity Price
1 - 9 $650.00
10 - 24 $617.50
25 - 49 $598.00
50 - 99 $578.50
100 + $552.50
Tacuna Systems Price Match Guarantee

AmCells DIN-3 Features

  • Stainless Steel Housing
  • Sealed Membrane Push Button Keypad with Color-coded Switches
  • Functions:
  • Bright 1″ LED Display
  • Functions: automatic zero tracking, audible alarm at pre-set weights, automatic tare, accumulation function

This indicator must be calibrated to the paired load cell. Perform this calibration in-house with a known load (2/3 of full capacity). Alternatively, Tacuna Systems can provide Load Cell Calibration Service when arranged at the time of purchase.

Available options: DIN-3 Digital Indicator

Please contact us with any questions.

Tacuna Systems Commitment

We strive to help our diverse customer base achieve their desired outcomes. As a small business, we take great pride in providing free consultation for product design & prototyping to ensure our valued clients have the right equipment to be successful. Our engineering specialists have extensive R&D experience in strain gauge load cell technology, and we are well-known for our in-house designed customizable signal conditioners and amplifiers.

Specifications

AmCells DIN-3 Specifications:

  • Zero Range: 0mV~8mV
  • Max Input: 15mV
  • ADC: Σ-Δ
  • Internal Resolution: 999,999 Counts
  • External Resolution: 1/30,000
  • Interface: Serial RS-232 (can be used with USB to serial converter)
  • Stabilization Time: 1 Seconds typical (configurable)
  • Operating Temperature: 0°C – 40°C / 32°F – 104°F
  • Power Supply: AC adapter or optional internal battery (contact us to configure this option).
  • Display: 6 Digit 1″ LED Digital Display
  • Housing: Stainless Steel
  • Load Cell Driven Voltage: Max 5V/150mA
  • Other Functions: Real-Time Clock and Units Conversion, Customized Unit Setting
  • Load Cells: Up to four 350 ohms cells with optional summing junction

Technical Documents

  DIN-3 Digital Indicator Manual
