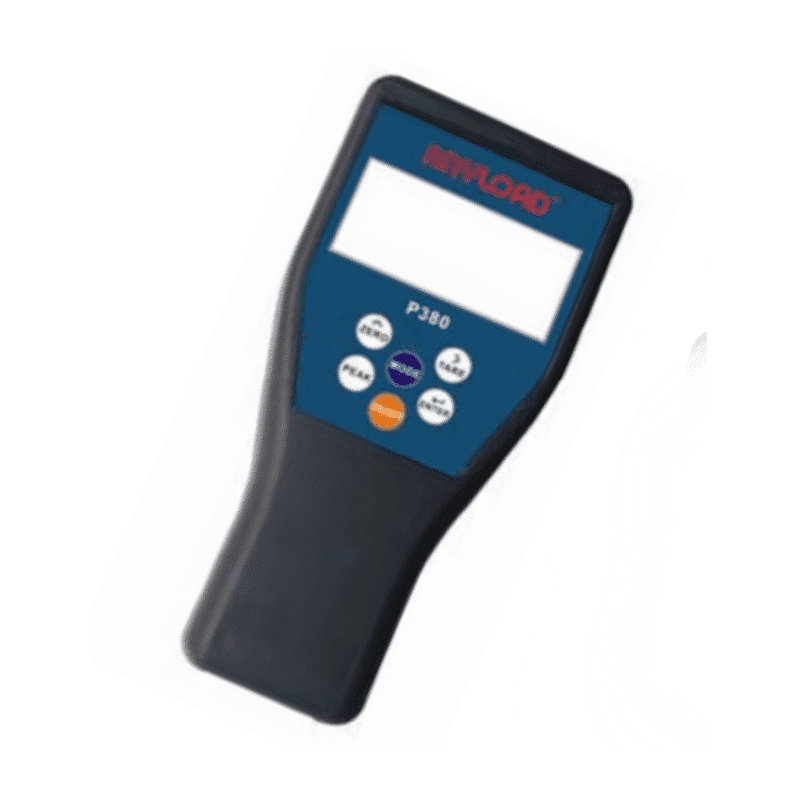

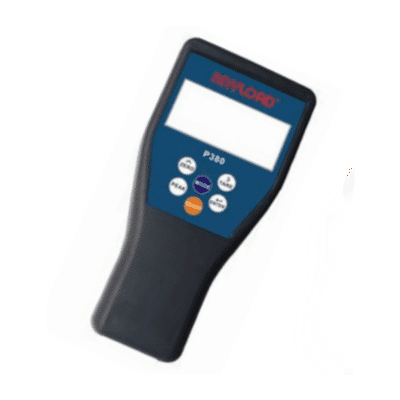

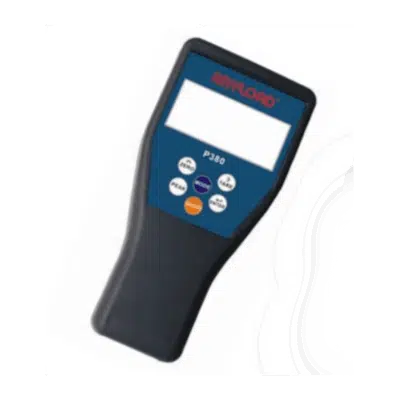

ANYLOAD P380 Wireless Display
The ANYLOAD P380 is a handheld wireless load cell indicator featuring an LCD with backlight and two-way communication with the ANYLOAD OCSD Dynamometer. The 5-digit display shows tare, zero, peak, stability and battery status. Its concealed antenna can transmit up to 70m over one of 128 available channels using 2.4GHz radio frequency. A RS232 communication port allows data to be exported continuously or batch, and provides printer access. The P380 offers one programmable set point that can be used for control applications. Four AA rechargeable batteries provide up to 50 hours of operation.
Other frequencies and configurations available – please contact us with any questions.
$765.00
| Quantity | Price |
|---|---|
| 1 - 9 | $765.00 |
| 10 - 24 | $726.75 |
| 25 - 49 | $703.80 |
| 50 - 99 | $680.85 |
| 100 + | $650.25 |
ANYLOAD P380 Wireless Load Cell Display Features:
- Hand-held wireless indicator
- LCD display with backlight
- Display indicates battery power status, tare, zero, peak and stable
- Relay Setting: One programmable set point is available for safety or other control applications
- Updating Rate: 12 times per second
- Radio Frequency: 2.4 GHz wireless transmission up to 70 meters with 128 available channels
- Power Supply: 4 x AA alkaline batteries
- Battery Life: 50 hours of continuous operation
- Concealed antenna as integral part of the design
- Indicator can only be used with the OCSD Dynamometer
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD P380 Wireless Display General Specifications:
| Dimensions | 220mm x 105mm x 50mm/8.66in x 5.9in x 1.97in |
| Communication | Wireless two-way |
| Display | LCD |
| Digits | 5 digits |
| Digit Height | 25mm/0.98in |
| Antenna | Concealed |
| Updating Rate | 12 times per second |
| Radio Frequency | 2.4GHz |
| Transmission Distance | 70m/229.66in |
| Working Temperature | -20°C to 60°C/-4°F to 140°F |
| Power Supply | 4 x AA alkaline batteries |
| Battery Life | 50 hours |
