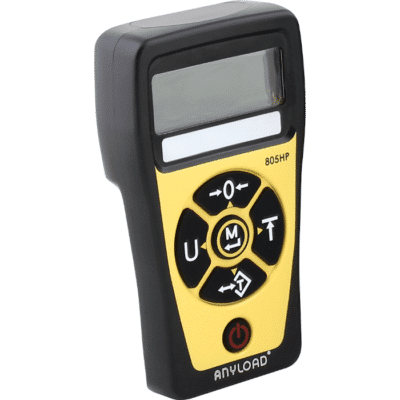

ANYLOAD 805HP-WL Wireless Hand Held Indicator

The ANYLOAD 805HP-WL  is a general purpose, durable hand-held load cell indicator providing high accuracy, reliability, and multiple functions. It can drive up to eight (8) 350Ω or thirty two (32) 1000Ω load cells with a wireless transmission module and junction box. This indicator has an LCD 6-digit display with LED backlight, multiple units (kg, g, t, lb, Klb, N, kN, oz, or user-defined), and non-volatile memory. Battery life is up to 100 hours and has a range of up to 75ft unobstructed.

With a IP65 ABS washdown enclosure, the 805HP-WL wireless digital indicator is ideal for use in Transportation, Entertainment, Aerospace, Military, Food and Agricultural industry.

$923.00

Quantity Price
1 - 9 $923.00
10 - 24 $876.85
25 - 49 $849.16
50 - 99 $821.47
100 + $784.55
Tacuna Systems Price Match Guarantee

ANYLOAD 805HP-WL Key Features

  • 3xAA alkaline batteries works up to 100 hours on 20°C at the lowest power set up
  • Wireless Distance: Up to 75m without obstruction
  • Material: ABS
  • IP Rating: IP65
  • LCD 6-digit display with LED backlight
  • Non-volatile memory for reliable data saving
  • Units of Measurement: kg, g, t, lb, Klb, N, kN, oz, user-defined unit
  • Configurable 2 set-points for precaution and warning
  • User-selectable display interval
  • Overloading recording
  • 10 user-selectable analog-to-digital converting frequency
  • Weight calibration and digital calibration
  • User-selectable auto power-off and power-saving timing
  • Functions: Auto-Zero Tracking, Auto-Zero, Manual-Zero, Hold, Peak-Hold, TARE

This indicator is compatible with all Tacuna Systems load cells – all capacities, all brands. However, this ANYLOAD digital weighing indicator must be calibrated to the paired load cell. This can be done by the user with a known load (2/3 of full capacity) or with Tacuna Systems Load Cell Calibration Service.

Contact us for any inquiries on load cell interfacing.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Indicator Functions

ANYLOAD 805HP-WL Indicator Functions

Auto Zero Tracking Yes
Auto Zero / Manual Zero Yes
Hold / Peak Hold Yes
Tare Yes
Gross/Net Yes
Overload warning and alarm Yes
Single and multi-point calibration Yes
Weight and Digit calibration Yes
Resolution Switch ( 0.001 to 50 ) Yes
Available units can be enabled/disabled: kg/g/t/oz/N/kN/lb/klb/User’s unit Yes
Backlight-off set ( Power Saving ) Yes
Auto-off set Yes
Idle set Yes
Battery Saving set Yes
Accumulate weighing values Yes

Specifications

 ANYLOAD 805HP-WL General Specifications

Enclosure Material ABS
Units of Measurement kg, g, t, lb, Klb, N, kN, oz, user-defined unit
Working Humidity <90% RH
Working Temperature -20°C to 70°C/-4°F to 158°F
Dimensions (mm) 170mm x 98mm x 34mm
Dimensions (in) 16.7in x 3.9in x 1.34in
Display Type LCD
Display Digits 6 digits
Digit Height 16.8mm/0.66in
Display Dimensions 72mm x 27mm/2.8in x 1.1in
Power Supply 3xAA Alkaline Batteries
IP Rating IP65

ANYLOAD 805HP-WL Technical Specifications

Division: 0.001; 0.002; 0.005; 0.01; 0.02; 0.05; 0.1; 0.2; 0.5; 1; 2; 5; 10; 20; 50
Tare Range: 100% Full Scale
Max. Number of Load Cells: 8x350Ohms; 32x1000Ohms
Max. Power Consumption: 6.25mW
Wireless Distance Up to 75m without obstruction.

Technical Documents

ANYLOAD 805HP-WL Datasheet
805HP-WL manual ( Software Version 2.06 )
805HP-WL manual ( Software Version 2.18 )
CE Certificate of Conformity
RoHS Certificate of Conformity

Tutorial Videos

Calibration Tutorial Video
User Settings Video
Wireless Pairing Video
