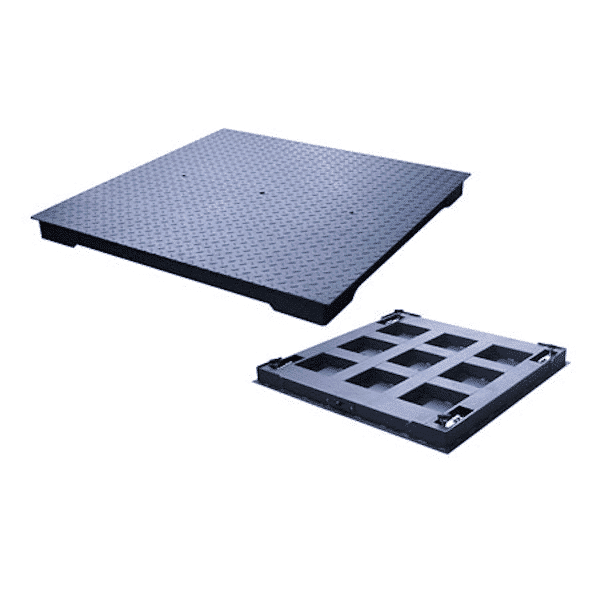

• photo of an ANYLOAD FSP-HD floor scale

ANYLOAD FSP-HD Heavy Duty Mild Steel Floor Scale

The ANYLOAD FSP-HD heavy duty mild steel industrial floor scale features industrial grade durability. It is engineered with a symmetrical 6mm thick rigid steel channel frame and checkered 6mm thick deck plate with rugged diamond safety tread for slip resistance. ANYLOAD’s FSP series of floor scales include ANYLOAD alloy steel load cells, adjustable alloy steel feet and a built-in junction box. They also  include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for easier change of scale location and for scale leveling. All ANYLOAD heavy duty floor scales are covered under warranty for a period of 5 years and are available in standard as well as custom sizes. The ANYLOAD FSP-HD is legal for trade and certified by Measurement Canada and NTEP.

Quantity Price
1 - 9 $3,195.00
10 - 24 $3,035.25
25 - 49 $2,939.40
50 - 99 $2,843.55
100 + $2,715.75
Tacuna Systems Price Match Guarantee
SKU: FSP-HD Category:

ANYLOAD FSP-HD Floor Scale Key Features

    • NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
    • NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
    • OIML MAA, Measurement Ukraine, CE, RoHS and ExNepsi certified load cells
    • NTEP certified floor scales: 3’x3′ to 5’x5′-1Klb to 10Klb Class III
    • Measurement Canada certified floor scales: 3×3-5Klb, 4×4-5Klb, 5×5-5Klb
    • 6mm thick rigid steel channel frame
    • Pre-trimmed corners
    • Threaded eye bolt holes for easy lifting

ANYLOAD FSP-HD Floor Scale Includes:

    • IP67 alloy steel load cells 563YH, OIML MAA & NTEP certified
    • 4 heavy duty swivel mild steel feet AMF-F-3/4 or AMF-F-M18 with removable rubber base
    • 2 eyebolts
    • 1 IP67 aluminum junction box J04EA-16
    • 1 level bubble

Available options: FSP-4×4-HD-5Klb, FSP-4×4-HD-10Klb

Contact us for any inquiries on other configurations or options.


FSP-HD Dimensions

Part Number Rated Capacity Load Cell Capacity Size (LxWxH) in Inches Weight
FSP4x4-HD-5Klb 5Klb 563YH-LE2.5Klb 48″ X 48″ X 4″ 185kg / 419lb
FSP4x4-HD-10Klb 10Klb 563YH-5Klb 48″ X 48″ X 4″ 185kg / 419lb

Technical Documents

FSP-HD Data Sheet
FSP-HD Brochure
FSP Series Installation Guide
certificate icon NTEP Certificate of Conformance
certificate icon Measurement Canada Approval
certificate icon OIML Certificate of Conformity
certificate icon CE Certificate of Conformity
certificate icon RoHS Certificate of Conformity
certificate icon Explosion Protection Certificate of Conformity
certificate icon Measurement Ukraine Certificate
