ANYLOAD FSP-GI Hot Dip Galvanized Mild Steel Floor Scale

$1,935.00$2,573.00

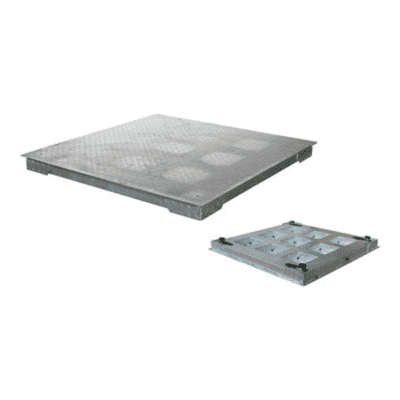

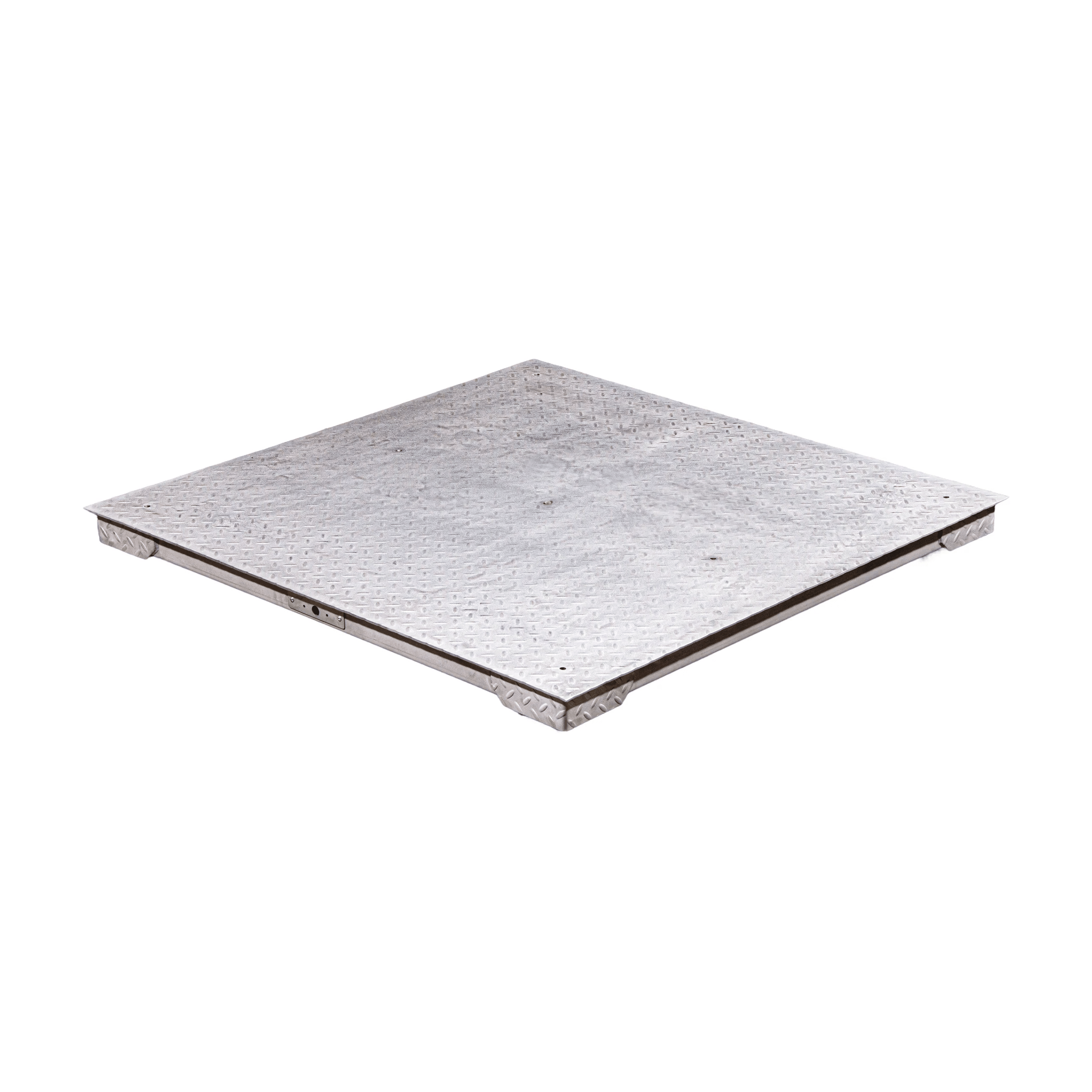

The ANYLOAD FSP-GI hot dip galvanized mild steel floor scale features industrial grade durability. It is engineered with a rigid steel symmetrical grid channel frame and 5mm thick deck plate with checkered safety tread for slip resistance. ANYLOAD’s FSP series of floor scales include ANYLOAD alloy steel load cells, adjustable alloy steel feet and a built-in junction box. They also include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for easier change of scale location and for scale leveling. All ANYLOAD FSP floor scales are covered under warranty for a period of 5 years and are available in standard as well as custom sizes. The ANYLOAD FSP-GI is legal for trade and certified by Measurement Canada and NTEP.

Clear
SKU: FSP-GI Category:

ANYLOAD FSP-GI Floor Scale Key Features

    • NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
    • NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
    • OIML, MAA, Measurement Ukraine, CE, RoHS and ExNepsi certified load cells
    • NTEP certified floor scales: 3’x3′ to 5’x5′-1Klb to 10Klb Class III
    • Measurement Canada certified floor scales: 3×3-5Klb, 4×4-5Klb, 5×5-5Klb

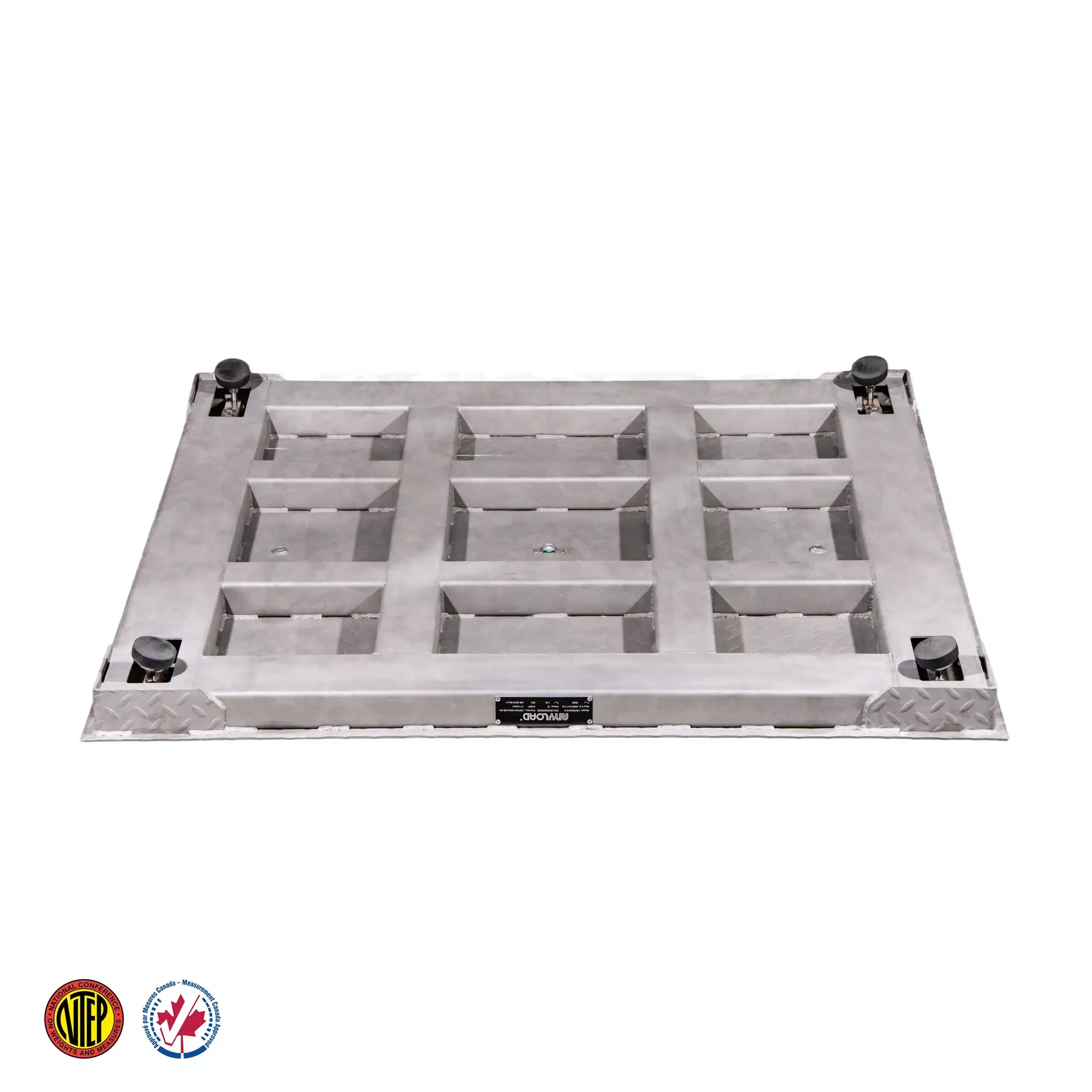

    • Rigid steel channel frame
    • Pre-trimmed corners

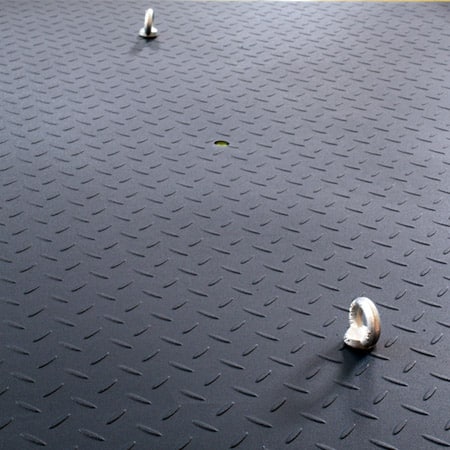

    • Threaded eye bolt holes for easy lifting
    • Powder coating

ANYLOAD FSP-GI Floor Scale Complete Set Includes:

    • IP67 alloy steel load cells 563YH, OIML MAA & NTEP certified
    • 4 heavy duty swivel mild steel feet AMF with removable rubber base
    • 2 eyebolts
    • 1 IP67 aluminum junction box J04EA-16

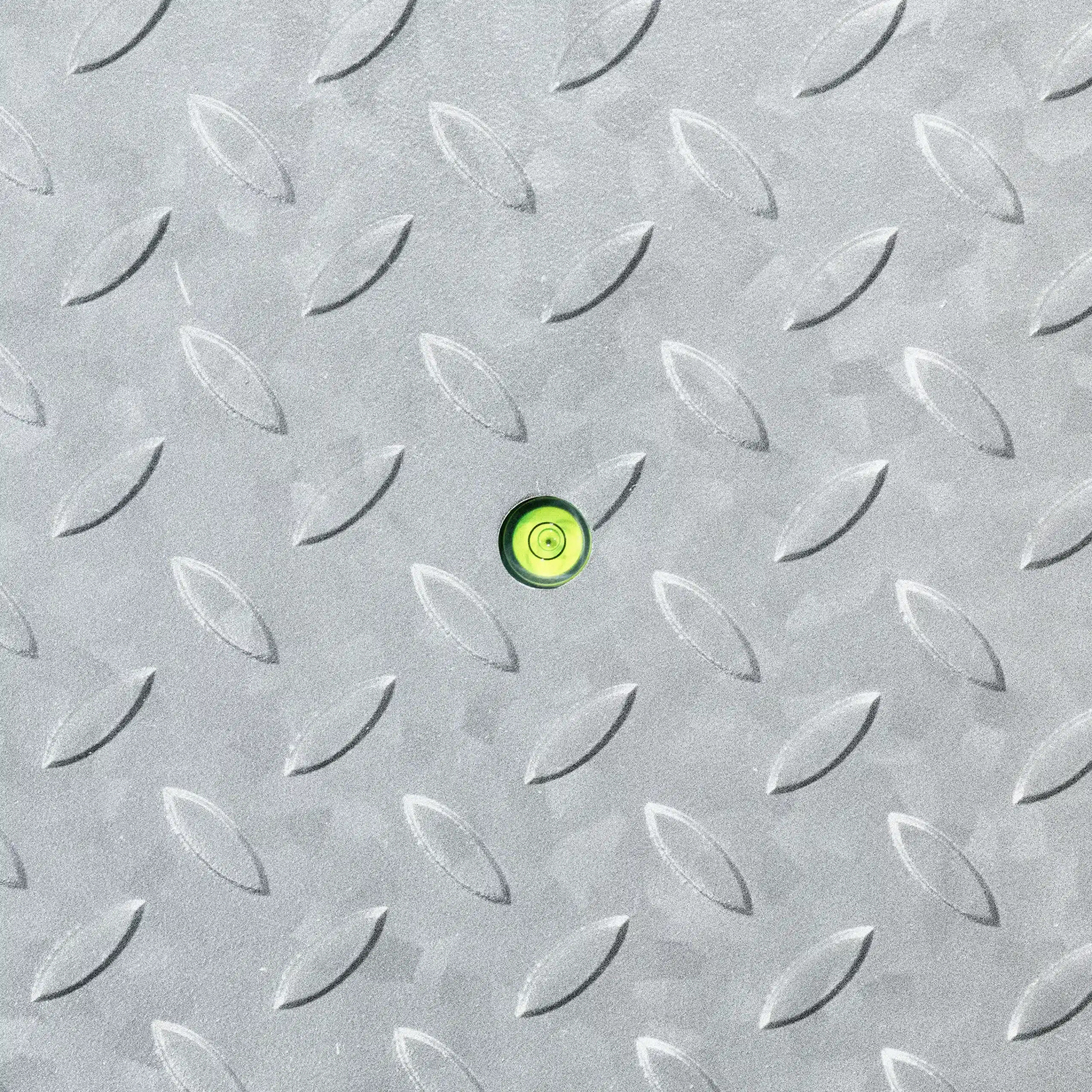

    • 1 level bubble

Available options: FSP4x4-GI-5Klb complete set or shell only

Contact us for any inquiries on other configurations or options.

Specifications

FSP-GI Dimensions

Part Number Rated Capacity Load Cell Capacity Size (LxWxH) in Inches Weight
FSP4x4-5Klb-GI 5Klb 563YH-2.5Klb 48″ X 48″ X 4″ 138kg / 304lb

Technical Documents

FSP-GI Data Sheet
FSP-GI Brochure
FSP Series Installation Guide
certificate icon NTEP Certificate of Conformance
certificate icon Measurement Canada Approval
certificate icon OIML Certificate of Conformity
certificate icon CE Certificate of Conformity
certificate icon RoHS Certificate of Conformity
certificate icon Explosion Protection Certificate of Conformity
certificate icon Measurement Ukraine Certificate
