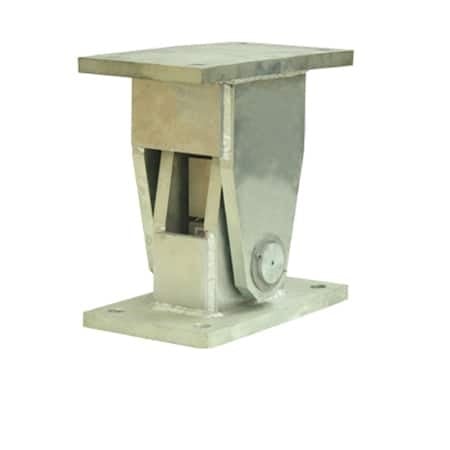

ANYLOAD 110BHM1 Alloy Steel Compression Weigh Module

The AL-110BHM1 features anti-lifting protection to prevent load from tipping. It is also designed to allow free swaying movements.

$119.95$3,599.95

Clear
SKU: AL-110BHM1 Category:

Key Features

  • Assembles: 110BH tension link load cell
  • Material: Alloy steel
  • Capacities: 1t-75t
  • NTEP certified load cells from 5t-50t
  • OIML certified load cells from 10t-50t
  • CE , RoHS and Ex certified load cells
  • Anti-lifting protection to prevent load from tipping
  • Allows for free swaying movements and high accuracy load reading
  • Load cell not included

Available options: 110BHM1-2000kg, 110BHM1-5000kg, 110BHM1- 10000kg, 110BHM1-20000kg, 110BHM1-30000kg, 110BHM1-50000kg, 110BHM1-75000kg, 110BHM1-100000kg, 110BHM1-1000kg

Please contact us with any product inquiries.







101NSGS Stainless Steel S-Beam Load Cell Specifications
Rated Capacity 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
Full Scale Output 3mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67
