ANYLOAD MK4-563YHM4 Weigh Module Kit

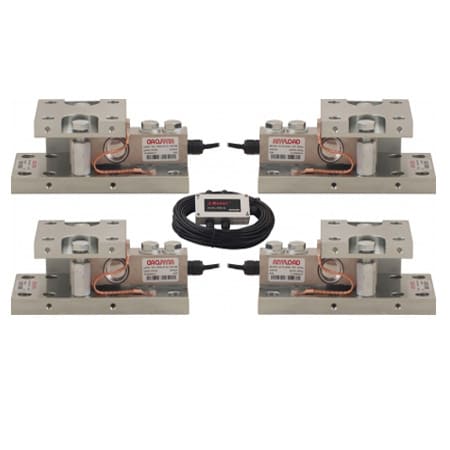

The ANYLOAD MK4-563YHM4 weigh module kit includes four 563YH true shear beam load cells and weigh modules, a junction box, and a 65ft cable. Designed with a rocker pin-loading system for optimal alignment and thermal expansion, each module is protected against overload and uplift. The low-profile kit features additional bolt holes for easy installation, matching typical tank leg bolt patterns. Ideal for outdoor tank and vessel weighing, the kit is IP67 water-resistant, ensuring durability and reliability in various applications.

See the MK4-102EHM2 (alloy steel, double-ended shear beam) and MK4-563RSM5 (stainless steel, single-ended shear beam) kits for other capacity options.

Quantity Price
1 - 9 $1,948.00
10 - 24 $1,850.60
25 - 49 $1,792.16
50 - 99 $1,733.72
100 + $1,655.80
Tacuna Systems Price Match Guarantee
SKU: MK4-563YHM4 Categories: ,

ANYLOAD MK4-563YHM4 Features

The ANYLOAD MK4-563YHM4 weigh module kit is a comprehensive solution for tank and hopper weighing applications. It features four best-selling 563YH true shear beam load cells and weigh modules, ensuring high accuracy and reliability. The kit includes a junction box and a 65ft (20m) shielded cable, providing all necessary components for installation. The innovative rocker pin-loading design allows for optimal alignment and thermal expansion, while each weigh module is fully protected from overload and uplift. The low-profile kit is designed for easy installation, with additional bolt holes in the bottom plate matching typical tank leg bolt patterns. Ideal for a wide range of weighing applications, including outdoor tank and vessel weighing, the MK4-563YHM4 kit offers IP67 water resistance for enhanced durability and performance in harsh environments.

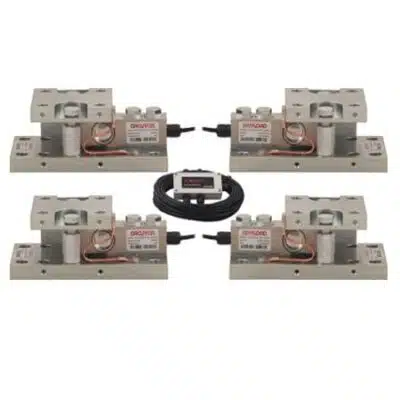

The complete ANYLOAD MK4-563YHM4 set consists of 4 ANYLOAD 563YH single-ended shear beam load cells, 4 563YHM4 stainless weigh modules, a J04SA-16 junction box, and a CB4 20m PVC cable (5.1mm x20m).

  • NTEP-certified true shear beam load cells (from 250lb-20Klb & 200kg-5t)
  • OIML-certified true shear beam load cells (from 1Klb-20Klb & 500kg-10t)
  • All load cells have CE, RoHS, and ExNepsi certification
  • “Jacking” capability for ease of load cell removal/installation
  • Uplift protection and overload protection
  • Allowance for thermal expansion
  • The top plate mounts directly to the vessel/tank leg
  • Conventional wiring and color code

Available Options: 100lb, 250lb, 500lb, 1Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb & 10Klb.

Please contact us with any product inquiries.

Part Numbers

MK4-563YHM4 Load Cell Kit Options

Load Cell Capacity Part No. Shipping Weight (kg / lb) Approx.
100lb MK4-563YHM4-100lb-S 22.0kg / 48.5lb
250lb MK4-563YHM4-200lb-S 22.0kg / 48.5lb
500lb MK4-563YHM4-500lb-S 22.0kg / 48.5lb
1Klb MK4-563YHM4-1Klb-S 22.0kg / 48.5lb
1.5Klb MK4-563YHM4-1.5Klb-S 22.0kg / 48.5lb
2Klb MK4-563YHM4-2Klb-S 22.0kg / 48.5lb
2.5Klb MK4-563YHM4-2.5Klb-S 22.0kg / 48.5lb
4Klb MK4-563YHM4-4Klb-S 22.0kg / 48.5lb
SE5Klb MK4-563YHM4-SE5Klb-S 22.0kg / 48.5lb
5Klb MK4-563YHM4-5Klb-S 25.0kg / 55.1lb
10Klb MK4-563YHM4-10Klb-S 25.0kg / 55.1lb
