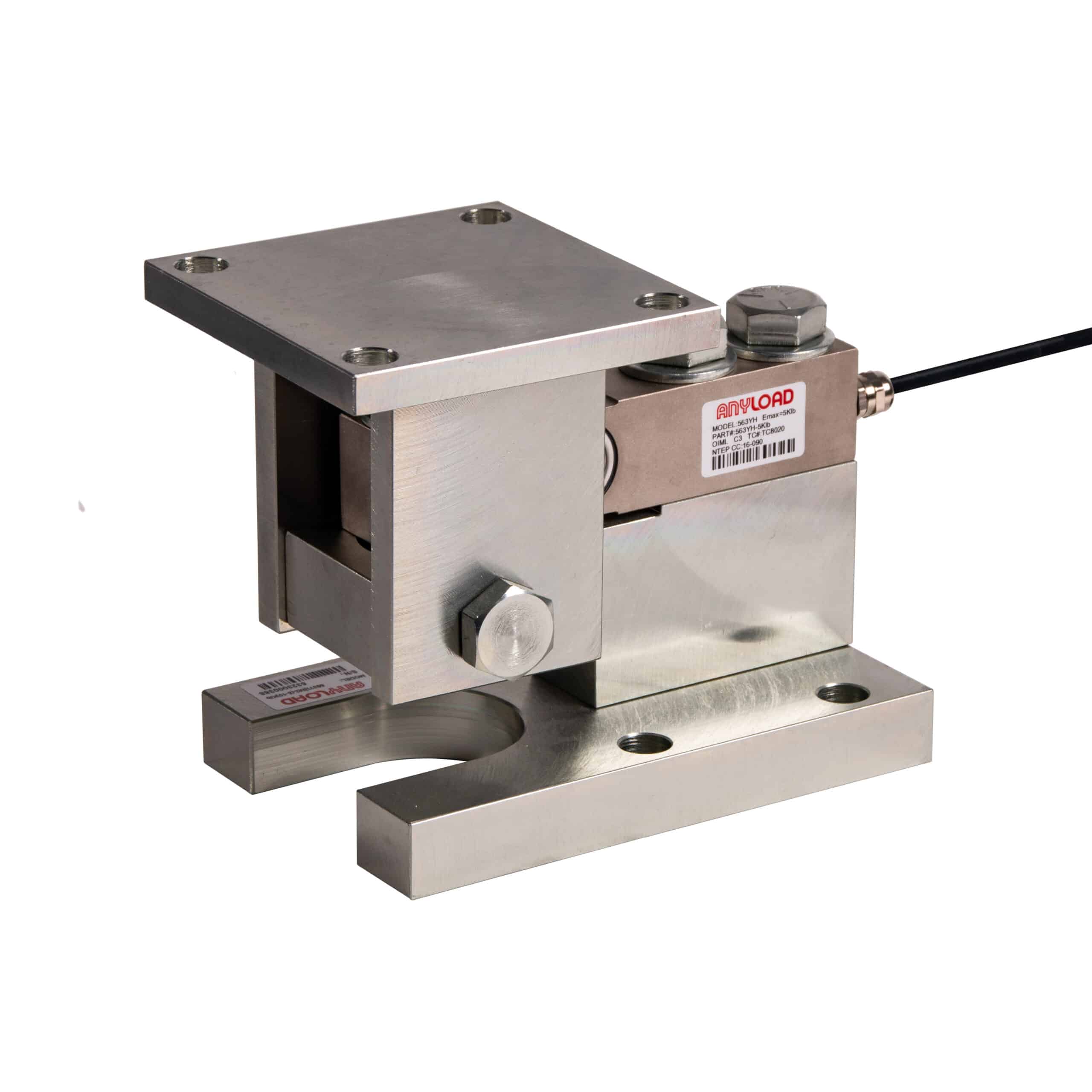

AnyLoad 563YHM2 Alloy Steel Compression Weigh Module

$265.95$325.95

Clear
SKU: AL-563YHM2 Category:

Description

The AnyLoad 563YHM2 alloy steel compression weigh module is designed for weighing applications that demand high accuracy and performance. This weigh module assembles the 563YH single ended beam load cell, and it is available in 100lb-10Klb/100kg-5t capacities. It is constructed with alloy steel, and it is optimized to provide accurate measurements. The AnyLoad 563YHM2 alloy steel compression weigh module is center pivoted and offers self-checking capability. In addition, it converts tension loads to compression loads for the load cell. This weigh module is suitable for NTEP approved load cells (1Klb-10Klb), OIML approved load cells (500kg-2.5t) and CE, RoHS and Ex approved load cells. The AL-563YHM2 is ideal for a wide range of applications including tank systems, silo weighing, hopper weighing, and production line weighing systems. This weigh module is interchangeable with Rice Lake’s RL1800.

Other capacities and configurations available – please contact us with any questions about this load cell module.

AnyLoad 563YHM2 Compression Weigh Module Features:

  • Assembles: 563YH single ended beam load cell
  • Material: Alloy steel
  • Capacities: 100lb-10Klb/100kg-5t
  • NTEP certified load cells from 1Klb-10Klb
  • OIML certified load cells from 500kg-2.5t
  • CE , RoHS and Ex certified load cells
  • Center pivoted and self-checking
  • Tension load applied to the load cell is converted to compression load application for the weigh module
  • Load cell not included

AnyLoad 563YHM2 Compression Weigh Module Interchangable Crossreference:

ManufacturerModel
Rice LakeRL1800



AnyLoad 563YHM2 Alloy Steel Compression Weigh Module Datasheet:

View Datasheet



AnyLoad 563YHM2 Alloy Steel Compression Weigh Module Drawings:

View Drawings-563YHM2(500-SE5K)lb

View Drawings-563YHM2(5-10)Klb
