ANYLOAD DGB-D Digiboard, Digital Amplifier

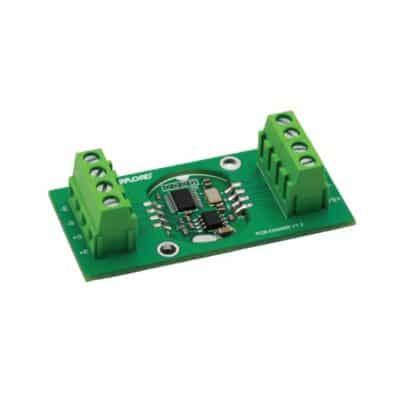

This compact 24-bit A/D converter module features a high-speed processor, strong anti-interference capability, and support for up to 9-point linear calibration. It connects directly to one 350Ω load cell or up to four via a junction box and is compatible with various strain gauge bridge-type load cells, including tension, compression, and torque types. With a 24.6mm diameter, it can be embedded for built-in signal amplification or integrated as a DGB-D chip for digital signal conditioning and transmission.
Contact us with any product-related or implementation-related questions.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $354.00 |
| 10-24 | 10 - 24 | 5% $336.30 |
| 25-49 | 25 - 49 | 8% $325.68 |
| 50-99 | 50 - 99 | 11% $315.06 |
| 100+ | 100 + | 15% $300.90 |
ANYLOAD DGB-D Digiboard, Digital Amplifier Features
The ANYLOAD DGB-D Digiboard digital amplifier uses a 24-bit A/D converter and a high-speed processor, and it can perform up to 9-point linear calibration with software used for calibration. One input port connects directly to one 350Ω load cell, or through a junction box to a maximum of four. It has reverse polarity protection, a 9-24 V DC power supply, and 5 V DC excitation voltage to the load cell. The output signal is RS-232, RS-485, or CAN Bus, depending on the model. The chip is 24.6mm in diameter and can be embedded within load cells.
Features:
- One input port can connect directly to 1 ×350Ω load cell, or a maximum of 4 × 350Ω (or higher resistance) load cells through a junction box
- 24-bit A/D Converter, high-speed processor
- Internal digital filter and strong anti-interference ability
- Can perform up to 9-point linear calibration
- Applied to all kinds of strain gauge bridge-type load cells, such as tension, compression, torque, and so on
- Reverse polarity protection
- The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification.
- Software is used for calibration.
- DGB-D Chips can be integrated into load cells for built-in digital signal conditioning/transmission (special order required)
Contact us with any product-related or implementation-related questions.
|
ANYLOAD – Amplifier Manager Software – Calibration Guide
|
Specifications
ANYLOAD DGB-D Digiboard, Digital Amplifier General Specifications
| Power Supply | 9-24 V DC |
| Power Consumption | 0.36 W @12 V DC |
| Input Range | -3.9 to +3.9 mV/V |
| Excitation voltage to load cell | 5 V DC |
| Working Temperature | -22°F – 122°F / -30°C – 50°C |
| Output Signal | RS-232 (DGB-DM2507B) / RS-485 (DGB-DM2508B) / CAN Bus (DGB-DC2508B) |
| Non-linearity | ≤0.01% |
| Temperature Coefficient | ≤100ppm/°C |
Technical Documents
| DGB-D Amplifier Datasheet | |
| DGB-DM2507x-DM2508x Manual DGB-DC2508x Manual |
|
| Software – Amplifier Manager |
Applications
Typical applications for the DGB-D:
- Embedded weighing systems in agricultural and construction equipment
- On-board vehicle weighing and load monitoring systems
- Industrial automation and PLC-based control systems
- Custom electronics and instrumentation platforms
- Force, torque, and strain measurement systems requiring digital output
