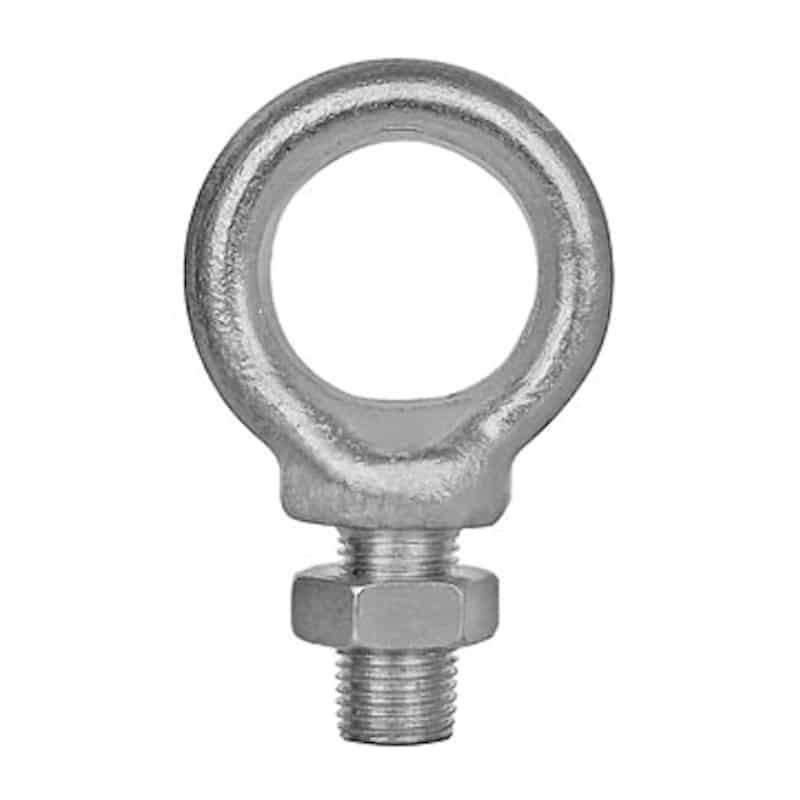

ANYLOAD EYE Eye Bolt
This ANYLOAD EYE Eye Bolt is made of cast alloy steel material is ideally used for assembly in tension weighing applications.
A single jam nut is supplied for each order.
$15.00 – $55.00
ANYLOAD EYE Eye Bolt Features
When selecting an appropriate eye bolt for your weighing application, be sure to verify the bolt’s rated capacity. Regular eye bolts typically are for vertical loads only.
For applications with greater rated capacities, see the ANYLOAD EYH Eye Bolt.
- Cast alloy steel construction
- Each order comes with one jam nut
- Imperial thread sizes: 1/4″ (28UNF), 1/2″ (20 UNF), 3/4″ (16UNF), 1″ (14UNF)
- Metric thread sizes: M12 eye bolts
Available standard options: EYE-1/4″, EYE-1/2″, EYE-3/4″, EYE-1″
Please contact us with any product questions.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
EYE Eye Bolt Specifications
| Part No. | Safe Working Load | Shipping Weight (kg) |
|---|---|---|
| EYE-1/4″ | 0.7Klb | 0.1 |
| EYE-1/2″ | 1.3Klb | 0.1 |
| EYE-3/4″ | 5.5Klb | 0.4 |
| EYE-M12 | 0.6t | 0.1 |
Technical Documents
EYE Eye Bolt DatasheetOnly logged in customers who have purchased this product may leave a review.
