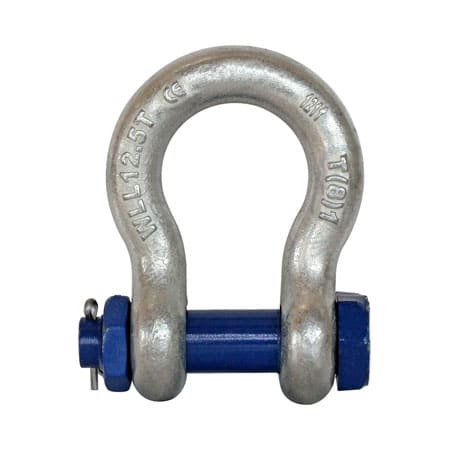

• photo of anyload shackle

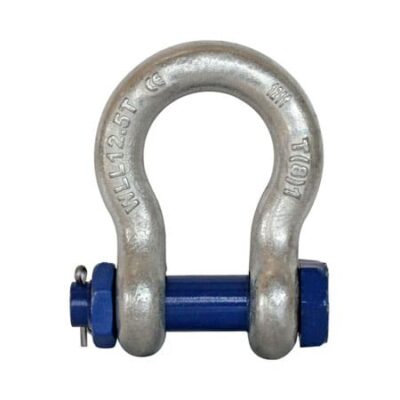

  • AnyLoad TBX Shackle

ANYLOAD TBX Shackle

The ANYLOAD TBX Shackle is a high tensile, omega shaped bolt anchor shackle made of alloy steel. It features a large range of capacities with 4x rated breaking overload for superior strength. This product meets ISO2415-2004 criteria. For a similar, more cost-effective option see the ANYLOAD SBX shackle.

Quantity Price
1 - 9 $53.00
10 - 24 $50.35
25 - 49 $48.76
50 - 99 $47.17
100 + $45.05
Tacuna Systems Price Match Guarantee

ANYLOAD TBX Key Features

  • Alloy steel material
  • High tensile bolt type anchor shackle
  • Rated capacity options:  2t, 2.5t, 3.25t, 5t, 7t, 9.5t, 12.5t, 15t, 18t, 21t, 30t, 40t, 50t, 80t, 110t
  • Proof tested to 2x the Working Load Limit (WLL)
  • WLL permanently engraved on shackles
  • Breaking Load: 4x of WLL
  • Approved for use at -40°C – 204°C (-40°F – 400°F)
  • Quality requirements meet ISO2415-2004

Available options: TBX-2000kg, TBX-2500kg, TBX-5000kg, TBX-12500kg, TBX-21000kg, TBX-30000kg, TBX-500000kg

Please contact us with any load cell interfacing inquiries.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Specifications

ANYLOAD TBX Shackle Product Matching Guide

TBX Working Load Limit (kg) Corresponding ANYLOAD Load Cell
2000 110ES: 1t
2500 110ES: 2.5t
110RH: 2t
5000 110ES: 5t
110RH: 5t
12500 110BH: 10t
110ES: 10t
110RH: 10t
21000 110ES: 20t
110RH: 20t
30000 110ES: 30t
110RH: 30t
50000 110ES: 50t
110RH: 50t

Technical Documents

  ANYLOAD TBX Shackle Datasheet
