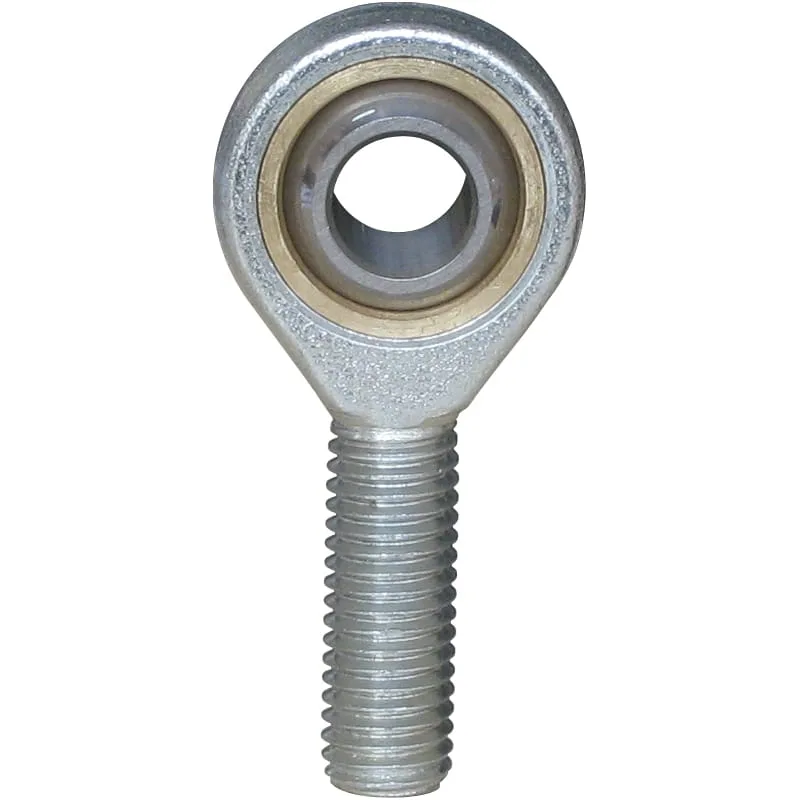

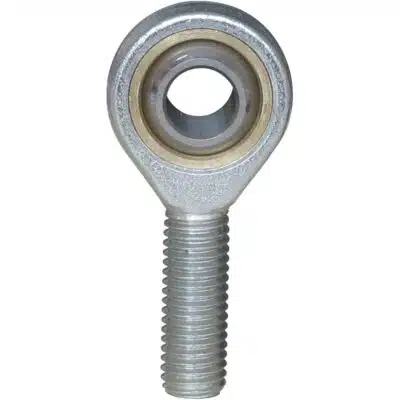

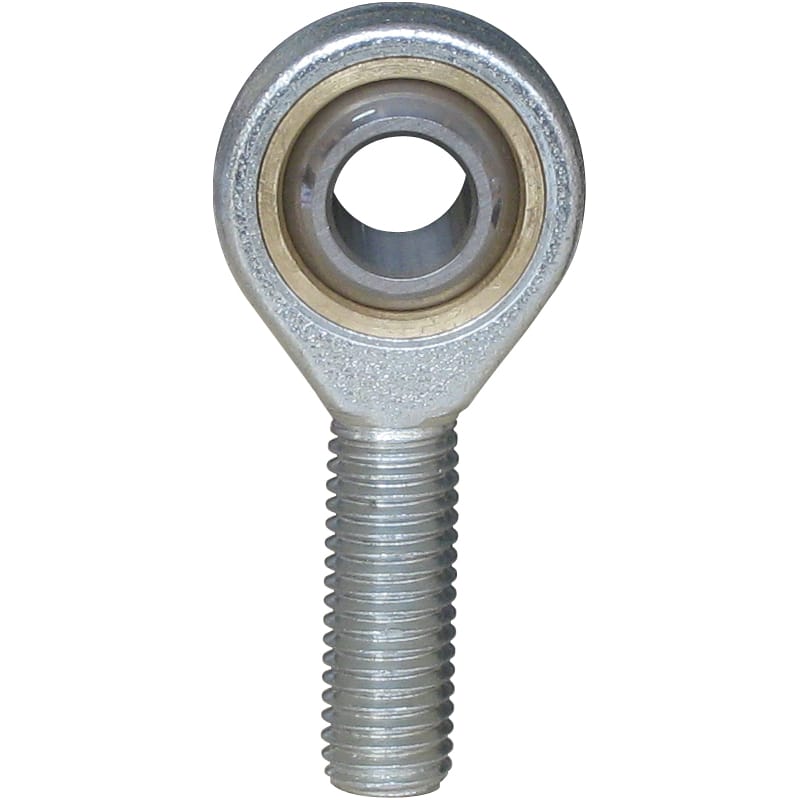

ANYLOAD RE Load Cell Rod End
This ANYLOAD RE Rod End is made of alloy steel and available with either imperial or metric threads. These rod ends feature a high safe loading rate for tension weighing assemblies. For greater loading capacities, see the ANYLOAD REH Rod End product.
$9.00 – $47.50
ANYLOAD RE Rod End
Our selection of ANYLOAD rod ends are designed to optimize your load system’s setup and prevent damage in tension weighing applications. Constructed to withstand harsh industrial environments, our ANYLOAD rod ends can be used in tensile applications that involve hoppers, vessels, tanks and more.
- Constructed with alloy steel
- Imperial thread sizes: 1/4″, 1/2″, 3/4″, 1″, 1 1/4″
- Metric thread sizes: M6, M12, M16, M18, M20, M24, M30, M36
Available options: RE-1/4″ (28UNF), RE-1/2″ (20UNF), RE-3/4″ (16UNF), RE-M6, RE-M12, RE-M24
Please contact us regarding availability of other capacities.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
RE Load Cell Rod End Specifications
Part No. | Safe Working Load | Shipping Weight (kg) |
RE-1/4″ | 500lb | 0.1 |
RE-1/2″ | 2Klb | 0.1 |
RE-3/4″ | 5Klb | 0.3 |
RE-1″ | 10Klb | 0.9 |
RE-1-1/4″ | 15Klb | 1.7 |
RE-M6 | 0.1t | 0.1 |
RE-M12 | 1.5t | 0.1 |
RE-M16 | 1.7t | 0.2 |
RE-M18 | 2t | 0.3 |
RE-M24 | 3t | 0.6 |
RE-M30 | 4.5t | 1.0 |
Technical Documents
