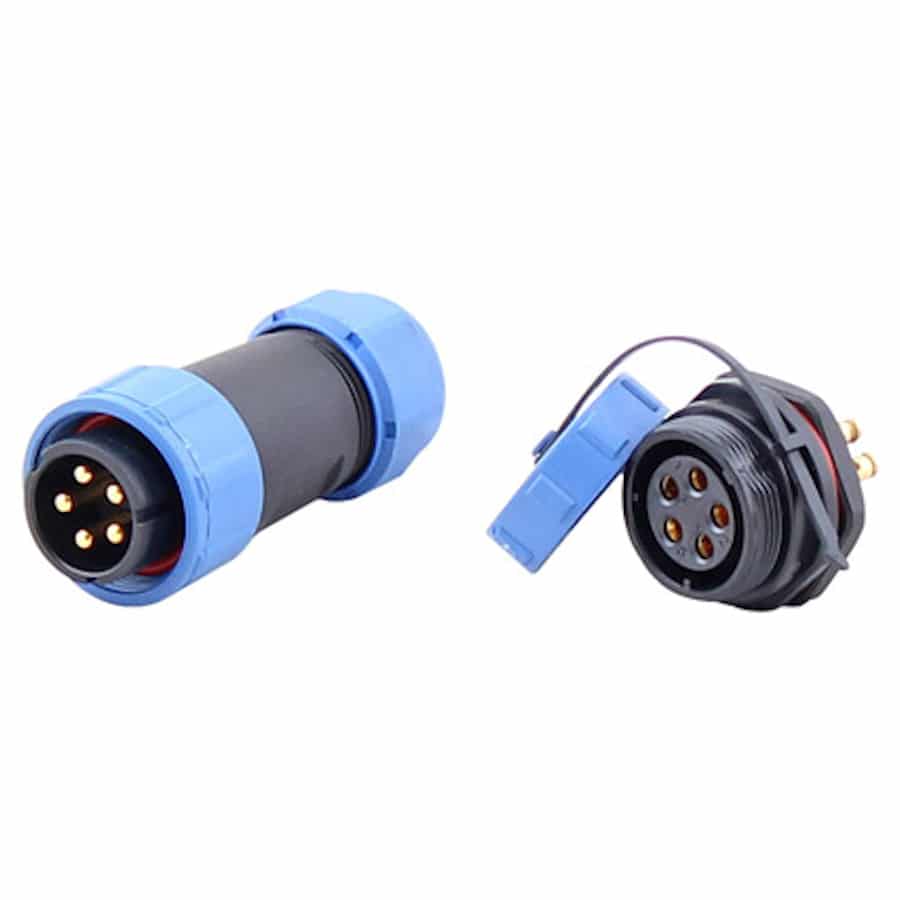

ANYLOAD CCS Cable Connector
The ANYLOAD CCS Cable Connector is available in three models with 5 or 7 contacts. It has an IP68 ingress protection rating for use in harsh environments.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $55.00 |
10-24 | 10 - 24 | 5% $52.25 |
25-49 | 25 - 49 | 8% $50.60 |
50-99 | 50 - 99 | 11% $48.95 |
100+ | 100 + | 15% $46.75 |
ANYLOAD CCS Cable Connector
This ANYLOAD CCS Cable Connector features a water-resistant design and has an IP68 protection class rating. This cable connector is suitable for industrial environments where there is humidity exposure. Available for purchase in three options (see Specifications tab).
- 5 or 7 pin contacts
- IP Rating: IP68
- Water-resistant
- Connector with threaded coupling
Available options: CCS-5-L, CCS-5-S, CCS-7-L
Please contact us with any product interfacing inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
CCS Cable Connector Specifications
Part Number | CCS-5-S | CCS-5-L | CCS-7-L |
Rated Current | 30A | 30A | 15A |
No. of Contacts | 5 | 5 | 7 |
Contact Diameter | φ3mm×5 | φ3mm×5 | φ2mm×7 |
Contact Resistance | 1MΩ | 1MΩ | 2.5MΩ |
Wire Size mm / AWG | ≤4.17/11 | ≤4.17/11 | ≤2/14 |
Termination | Screw | Screw | Solder |
Cable Outer Diameter | φ4.5-7mm | φ7-12mm | φ7-12mm |
Shell Material | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 |
Insert Material | PPS, max temperature 260°C | PPS, max temperature 260°C | PPS, max temperature 260°C |
Contact Material | Brass with gold plating | Brass with gold plating | Brass with gold plating |
Rated Voltage (AC) | 500V | 500V | 500V |
Test Voltage/min (AC) | 1500V | 1500V | 1500V |
Mating Cycle | >500 | >500 | >500 |
Input Resistance | 2000MΩ | 2000MΩ | 2000MΩ |
Working Temperature | 40°C to 85°C / -40°F to 185°F | 40°C to 85°C / -40°F to 185°F | 40°C to 85°C / -40°F to 185°F |
Protection Class | IP68 | IP68 | IP68 |
