ANYLOAD CCP Cable Connector
The ANYLOAD CCP Cable Connector is available in three models with 5 or 7 contacts.
With an ingress protection rating of IP68, this cable is suitable for harsh industrial environments. For more options, check out the ANYLOAD CCS Cable Connector.
| Quantity | Price |
|---|---|
| 1 - 9 | $55.00 |
| 10 - 24 | $52.25 |
| 25 - 49 | $50.60 |
| 50 - 99 | $48.95 |
| 100 + | $46.75 |
ANYLOAD CCP Cable Connector

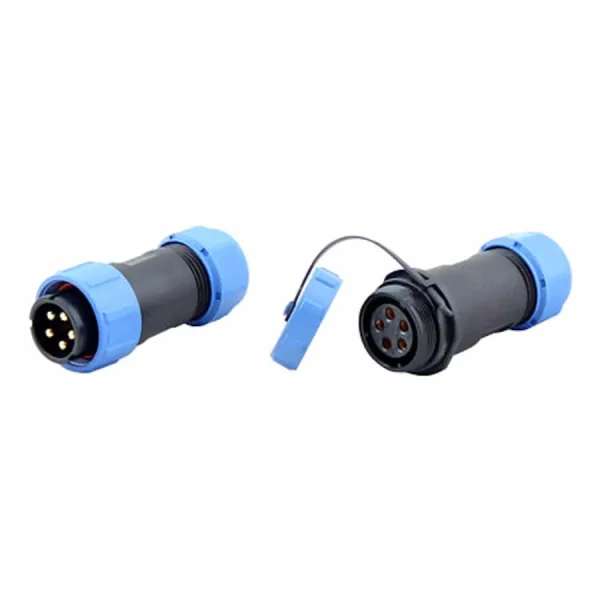

This ANYLOAD CCP Cable Connector features a water-resistant design and has an IP68 protection class rating. This cable connector is suitable for industrial environments where there is humidity exposure. Available for purchase in three options (see Specifications tab).
- Available with 5 or 7 contacts
- IP Rating: IP68
- Connector with threaded coupling
- Inline cable connection
- Note: The CCP5-S option has a smaller outer cable diameter compared to the CCP5-L
Available options: CCP-5-L, CCP-5-S, CCP-7-L
Other capacities and configurations for this CCP connector are available—please contact us with any product inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
CB6 Load Cell Cable Specifications
| Part No. | CCP-5-S | CCP-5-S1 | CCP-5-L | CCP-5-L1 | CCP-7-L |
| Rated Current | 30A | 30A | 30A | 30A | 15A |
| No. of Contacts | 5 | 5 | 5 | 5 | 7 |
| Contact Diameter | φ3mm×5 | φ3mm×5 | φ3mm×5 | φ3mm×5 | φ2mm×7 |
| Contact Resistance | 1MΩ | 1MΩ | 1MΩ | 1MΩ | 2.5MΩ |
| Wire Size mm/AWG | ≤4.17/11 | ≤4.17/11 | ≤4.17/11 | ≤4.17/11 | ≤2/14 |
| Termination | Screw | Solder | Screw | Solder | Solder |
| Cable Outer Diameter | φ4.5-7mm | φ4.5-7mm | φ7-12mm | φ7-12mm | φ7-12mm |
| Shell Material | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 | PC, Nylon66, fire resistance: V-0 |
| Insert Material | PPS, max temperature 260°C | PPS, max temperature 260°C | PPS, max temperature 260°C | PPS, max temperature 260°C | PPS, max temperature 260°C |
| Contact Material | Brass with gold plating | Brass with gold plating | Brass with gold plating | Brass with gold plating | Brass with gold plating |
| Rated Voltage (AC) | 500V | 500V | 500V | 500V | 500V |
| Test Voltage/min (AC) | 1500V | 1500V | 1500V | 1500V | 1500V |
| Mating Cycle | >500 | >500 | >500 | >500 | >500 |
| Input Resistance | 2000MΩ | 2000MΩ | 2000MΩ | 2000MΩ | 2000MΩ |
| Working Temperature | -40C to 85C / -40F to 185F | -40C to 85C / -40F to 185F | -40C to 85C / -40F to 185F | -40C to 85C / -40F to 185F | -40C to 85C / -40F to 185F |
| Protection Class | IP68 | IP68 | IP68 | IP68 | IP68 |
CCP Cable Connector Part Numbers
| Part No. | Contacts | Termination | Shipping Weight (kg) |
| CCP-5-S | 5 | Screw | 0.06 |
| CCP-5-S1 | 5 | Solder | 0.06 |
| CCP-5-L | 5 | Screw | 0.06 |
| CCP-5-L1 | 5 | Solder | 0.06 |
| CCP-7-L | 7 | Solder | 0.06 |
