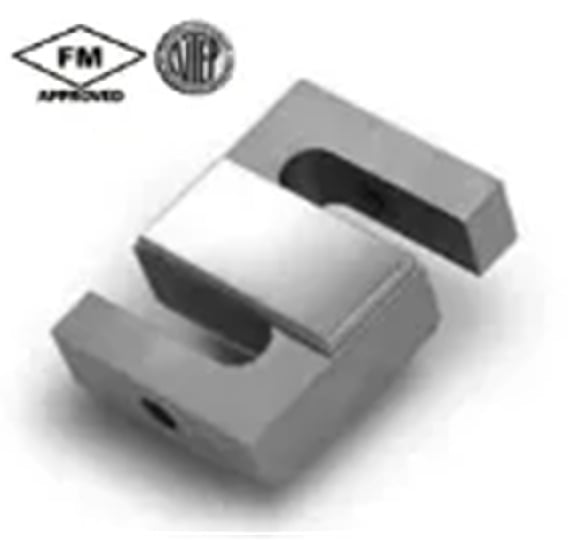

AmCells STS Series S-Type Stainless Steel Load Cell


The AmCells STS S-Type load cell is ideal for hoppers, tank leveling, truck scales, crane scales, or any weigh application requiring the durability of stainless steel. It comes in a wide range of capacities from 50lbs to 40,000lbs.

Limited stock exists for 20Klb and 40Klb capacities; please contact us before ordering.

Quantity Price
1 - 9 $299.95
10 - 24 $284.95
25 - 49 $275.95
50 - 99 $266.96
100 + $254.96
Tacuna Systems Price Match Guarantee
SKU: STS Category:

AmCells STS Features

AmCells STS Series S-Type Stainless Steel Load Cells measure compression and tension loads and are easily mounted from top and bottom with threaded holes.

  • Stainless Steel
  • Meets OIML and HB44 III Standards
  • Cable Length: 20 ft.

Available options: STS-50lb, STS-150lb, STS-200lb, STS-500lb, STS-750lb, STS-1000lb, STS-1500lb, STS-2000lb, STS-2500lb, STS-3000lb, STS-5000lb, STS-10000lb, STS-15000lb

Please contact us for Availability: STS-20000lb, STS-40000lb



AmCells STS Series S-Type Stainless Steel Load Cell Specifications

Rated Output (R.O.) 3.0 MV/V ± 1%
Zero Balance ± 2% of R.O.
Non-Linearity 0.02% of R.O.
Hysteresis 0.02% of R.O.
Non-Repeatability 0.02% of R.O.
Creep in 1 hour 0.05% of Load
Insulation > 5,000MΩ
Input Impedance 385Ω ± 30Ω
Output Impedance 350Ω ± 4Ω
Safety Overload 150% of F.S.
Ultimate Overload 200% of F.S.
Compensated Temperature Range -10 to 40 °C
Operating Temperature Range -40 to 80 °C
Temperature Effect on Output 20 ppm/°C

Interchangeable Cross Reference

AmCells STS Interchangeable Cross Reference

Manufacturer Equivalent Model
Artech Industries Inc. SS20210
Rice Lake RL20001
Revere 9363
Sensor 60050
Tedea 616/620
Transcell BSS SS
Celtron STC SS
