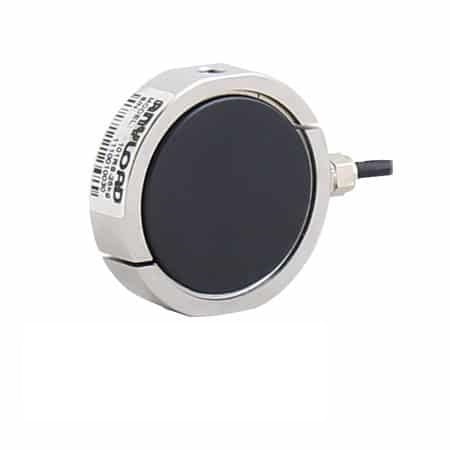

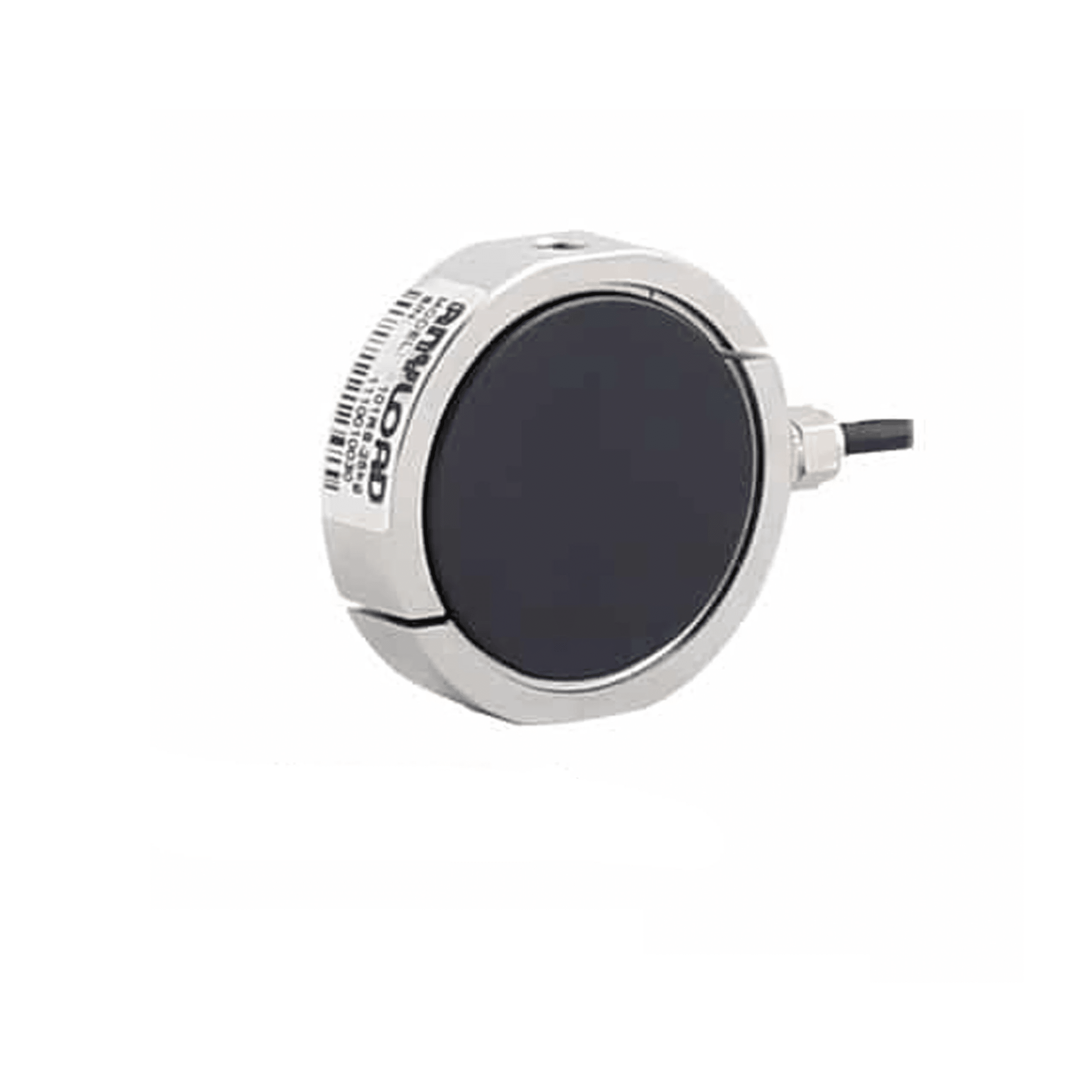

ANYLOAD 101RS Tension Load Cell
The ANYLOAD 101RS is a sleek, durable S-beam load cell made from 17-4PH stainless steel, designed for both tension and compression measurements in compact applications. Measuring approximately 2 inches in diameter, it is ideal for medical, laboratory, and portable devices. With intrinsic overload stops and an IP66 ingress protection rating, it performs reliably in challenging environments. Available in capacities ranging from 100 to 750 Newtons, this versatile transducer meets a variety of weighing and force measurement needs.
| Quantity | Price |
|---|---|
| 1 - 9 | $820.00 |
| 10 - 24 | $779.00 |
| 25 - 49 | $754.40 |
| 50 - 99 | $729.80 |
| 100 + | $697.00 |
ANYLOAD 101RS Features
The ANYLOAD 101RS is a sleek and durable S-beam type load cell, built for reliable tension and compression measurements in compact or lightweight applications, such as testing instruments and hand-held portable devices. Constructed from 17-4PH stainless steel, it features intrinsic overload stops for both tension and compression, ensuring robust performance. With a compact size of approximately 2 inches in diameter, it is ideal for precise measurements in medical, laboratory, and other environments requiring compact solutions. The IP66 water-resistant rating allows it to perform reliably in challenging conditions. Available in capacities ranging from 100 to 750 Newtons, the 101RS is a versatile solution for a variety of weighing and force measurement needs. This environmentally sealed transducer meets leading international safety requirements, making it a trusted choice for accurate and dependable measurements.
- Material: 17-4PH Stainless Steel
- Rated Capacities: 100N, 250N, 500N, 750N
- Full-Scale Output: 2mV/V ± 1.0%
- Safe Overload: 150%
- Breaking Overload: 300%
- Overload stops in both compressive and tensile directions
- Environmentally Sealed; IP Rating: IP66
- CE, RoHS, and ExNEPSI-certified
Available Options: 100N, 250N, 500N & 750N.
Please contact us with any product-related questions.
Specifications
ANYLOAD 101RS Tension Load Cell Specifications
| Rated Capacity | 100N, 250N, 500N, 750N |
| Full-Scale Output | 2mV/V ± 1.0% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.020% |
| Hysteresis Error | < ± 0.010% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP65 |
Technical Documents
 |
101RS Tension Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
 |
101RS-(10-75)kg |
