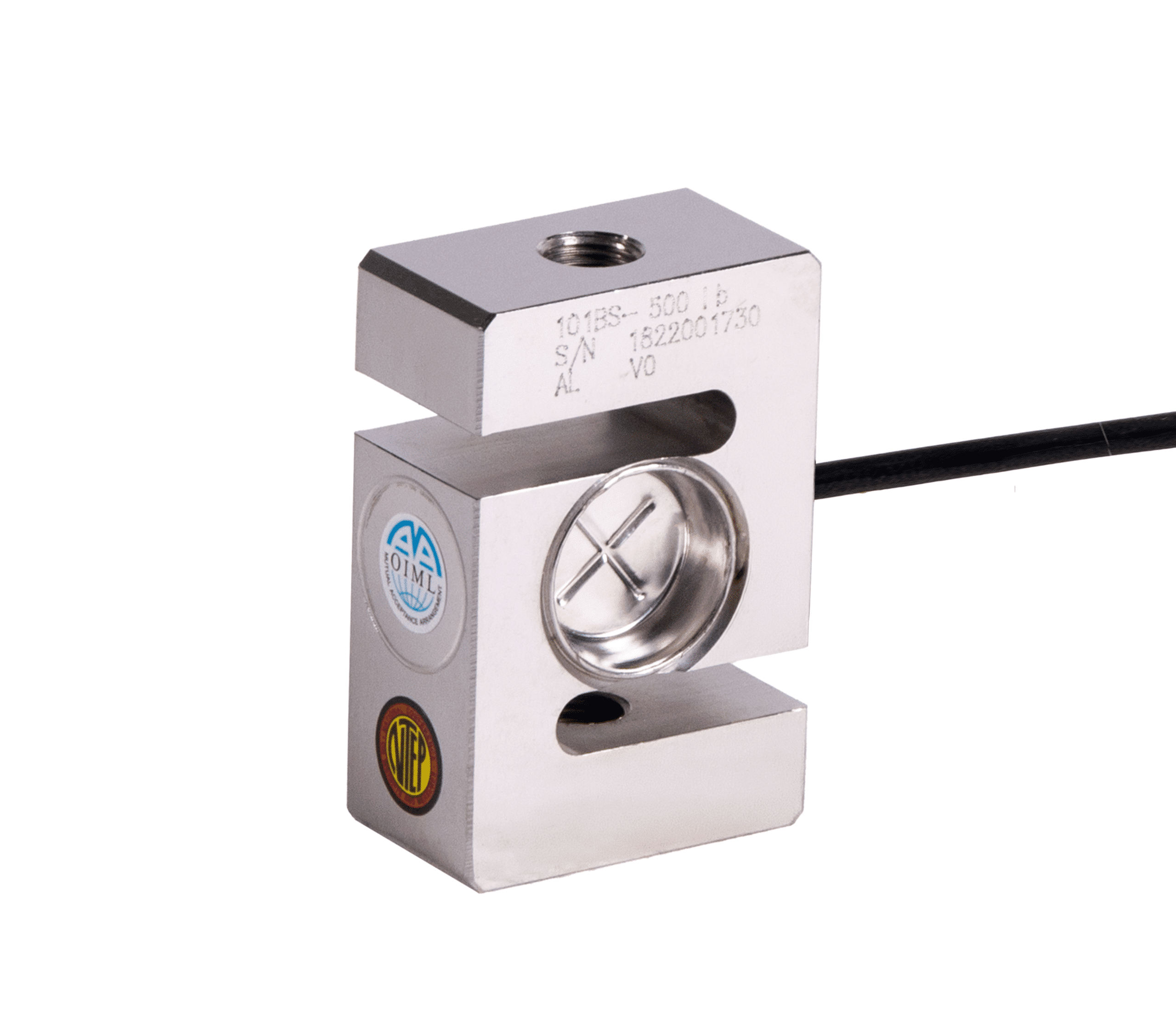

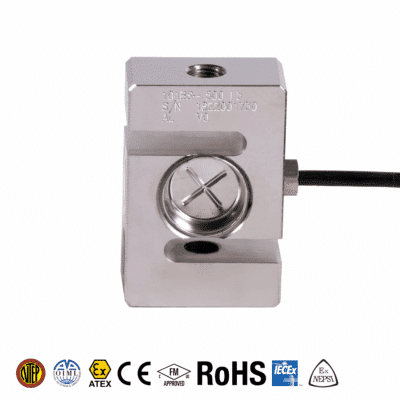

ANYLOAD 101BS Stainless Steel S-Beam Load Cell
The ANYLOAD 101BS S-Beam Load Cell, with a capacity range of 500lb to 20,000lb, is made from IP68-rated stainless steel, ideal for harsh environments like chemical and food processing. Approved by OIML and NTEP, it’s used for hopper weighing and process weighing and is interchangeable with models like Vishay Sensortronics 60063 and Rice Lake RL20001HE. It meets leading international safety standards as well.
Other capacities and configurations are available – please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $300.00 |
10-24 | 10 - 24 | 5% $285.00 |
25-49 | 25 - 49 | 8% $276.00 |
50-99 | 50 - 99 | 11% $267.00 |
100+ | 100 + | 15% $255.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 101BS Features
The ANYLOAD 101BS S-Beam Load Cell, with capacities from 500lb to 20,000lb, is made from IP68-rated stainless steel, making it water- and corrosion-resistant for harsh environments. Furthermore, it is OIML C3/C4.5 and NTEP approved, ensuring it meets international standards. As a result, it is ideal for industries like chemical processing and food production. Additionally, it is interchangeable with models such as Vishay Sensortronics 60063 and Rice Lake RL20001HE for added flexibility.
- Material: Stainless Steel
- Rated Capacities: 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:3 000 Class III, Single Cell certified from 100lb-3Klb
- NTEP 1:4 500 Class III, Single Cell certified from 5Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS, and Ex certified
Available Options: 500lb, 1Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb & 20Klb.
Please contact us with any product-related questions.
Specifications
ANYLOAD 101BS Stainless Steel S-Beam Load Cell Specifications
Rated Capacity | 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.030% |
Hysteresis Error | < ± 0.030% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 400Ω ± 20Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
3D Drawing
101BS-10klb | |
---|---|
101BS-20klb | |
101BS-5t | |
101BS-10t | |
101BS-(500-3000)lb | |
101BS-5klb | |
101BS-(300-1000)kg | |
101BS-(2-3)t |
Interchangeable Cross Reference
ANYLOAD 101BS Interchangeable Cross Reference
Manufacturer | Equivalent Model | |
Coti Global | CGSB-SSW | |
Flintec | ULB | |
HBM | RSC* | |
Rice Lake | RL20001HE | |
Vishay Celtron | STC HSS | |
Vishay Sensortronics | 60063 | |
Vishay Tedea-Huntleigh | 616** | |
Vishay Tedea-Huntleigh | 620 |
* Glue sealed
**Vishay Tedea-Huntleigh 616 is interchangeable with ANYLOAD 101BSGS
