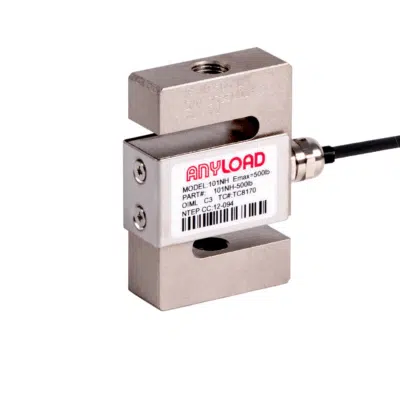

ANYLOAD 101NH Alloy Steel S-Beam Load Cell
The ANYLOAD 101NH S-Beam Load Cell is available in 50lb-20,000lb rated capacities. Its construction is nickel-plated alloy steel, and it has an IP67 rating.
Other capacities and configurations available – please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $143.00 |
10-24 | 10 - 24 | 5% $135.85 |
25-49 | 25 - 49 | 8% $131.56 |
50-99 | 50 - 99 | 11% $127.27 |
100+ | 100 + | 15% $121.55 |
SKU: 101NH
Category: S-Type
ANYLOAD 101NH Key Features
- Alloy steel material
- Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
- Full Scale Output: 3mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:3 000 Class III, Single Cell certified from 100lb-3Klb
- NTEP 1:4 500 Class III, Single Cell certified from 5Klb-20Klb
- OIML MAA C3, Y=17 000 certified from 200kg-1.5t
- OIML MAA C4.5, Y=14 000 certified from 2t-10t
- CE, RoHS and Ex certified
Available options: 101NH-50lb, 101NH-100lb, 101NH-200lb, 101NH-250lb, 101NH-500lb, 101NH-750lb, 101NH-1000lb, 101NH-1500lb, 101NH-2000lb, 101NH-2500lb, 101NH-3000lb, 101NH-5000lb, 101NH-10000lb, 101NH-15000lb, 101NH-20000lb
Installation Module: ANYLOAD 101NHM2
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 101NH Stainless Steel S-Beam Load Cell Specifications
Rated Capacity | 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb |
Full Scale Output | 3.0mV/V ± 1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 101NH Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Coti Global | CGSB / CSGB-1 |
Rice Lake | RL20000 |
Rice Lake | RL20001 |
Vishay Celtron | STC |
Vishay Revere Transducers | 363 |
Vishay Sensortronics | 60001 |
