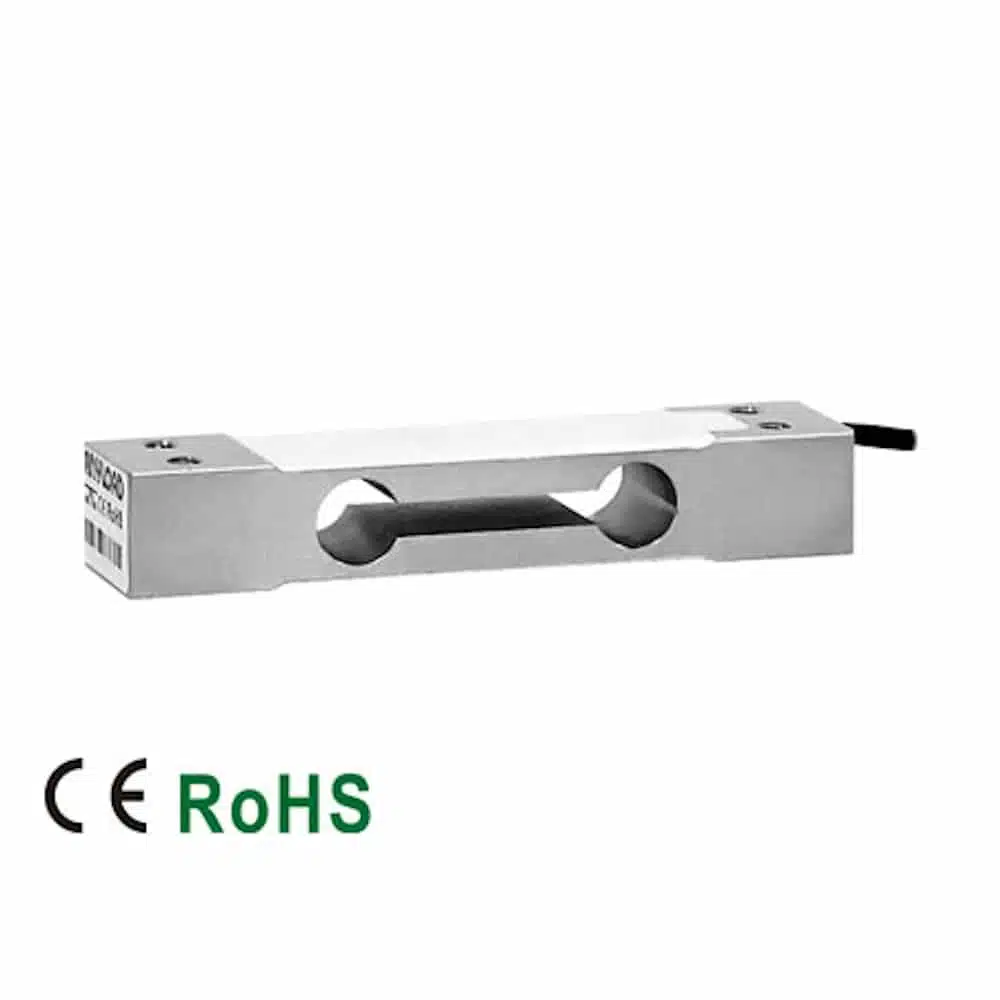

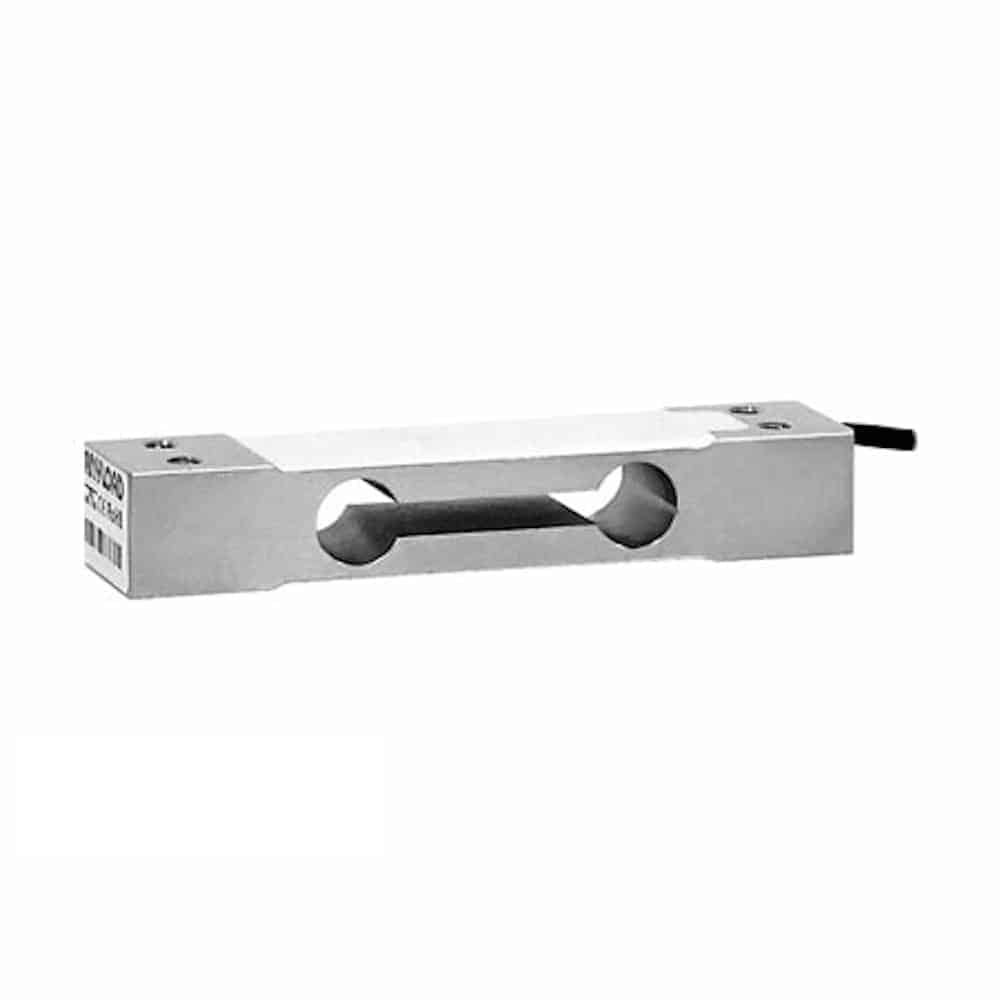

ANYLOAD 108BS Stainless Steel Single Point Load Cell
The ANYLOAD 108BS Stainless Steel Single Point Load Cell is a highly accurate, low-capacity weighing solution with IP66 water and corrosion resistance. It offers excellent off-center load compensation and a 150% safe overload allowance, making it ideal for platform scales, retail scales, logistics scales, and check weighing. Available in capacities from 10kg to 80kg, this model is also interchangeable with the Mettler-Toledo SSP1022.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $290.00 |
10-24 | 10 - 24 | 5% $275.50 |
25-49 | 25 - 49 | 8% $266.80 |
50-99 | 50 - 99 | 11% $258.10 |
100+ | 100 + | 15% $246.50 |
ANYLOAD 108BS Features
The ANYLOAD 108BS Stainless Steel Single Point Load Cell is a highly accurate and robust weighing solution designed for low-capacity applications ranging from 10kg to 80kg. Constructed from durable stainless steel, this load cell offers exceptional water and corrosion resistance, making it ideal for demanding environments. With an IP66 rating, it ensures reliable performance in harsh conditions, while its superior 150% safe overload allowance and excellent off-center load compensation provide precise measurements. Commonly used in platform scales, retail scales, logistics scales, and check weighing, the 108BS is also interchangeable with the Mettler-Toledo SSP1022, ensuring seamless integration into existing systems.
- Material: 17-4PH Stainless steel
- Rated Capacities: 10kg, 20kg, 30kg, 40kg, 50kg, 80kg
- Cable length: 0.5m
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
Available Options: 10kg, 20kg, 30kg, 40kg, 50kg & 80kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108BS Load Cell Specifications
Rated Capacity | 10kg, 20kg, 30kg, 40kg, 50kg, 80kg |
Reference Max. Platform Size | 400mm x 400mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108BS Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108BS Equivalent
Manufacturer | Equivalent Model |
Mettler-Toledo | SSP1022 |
