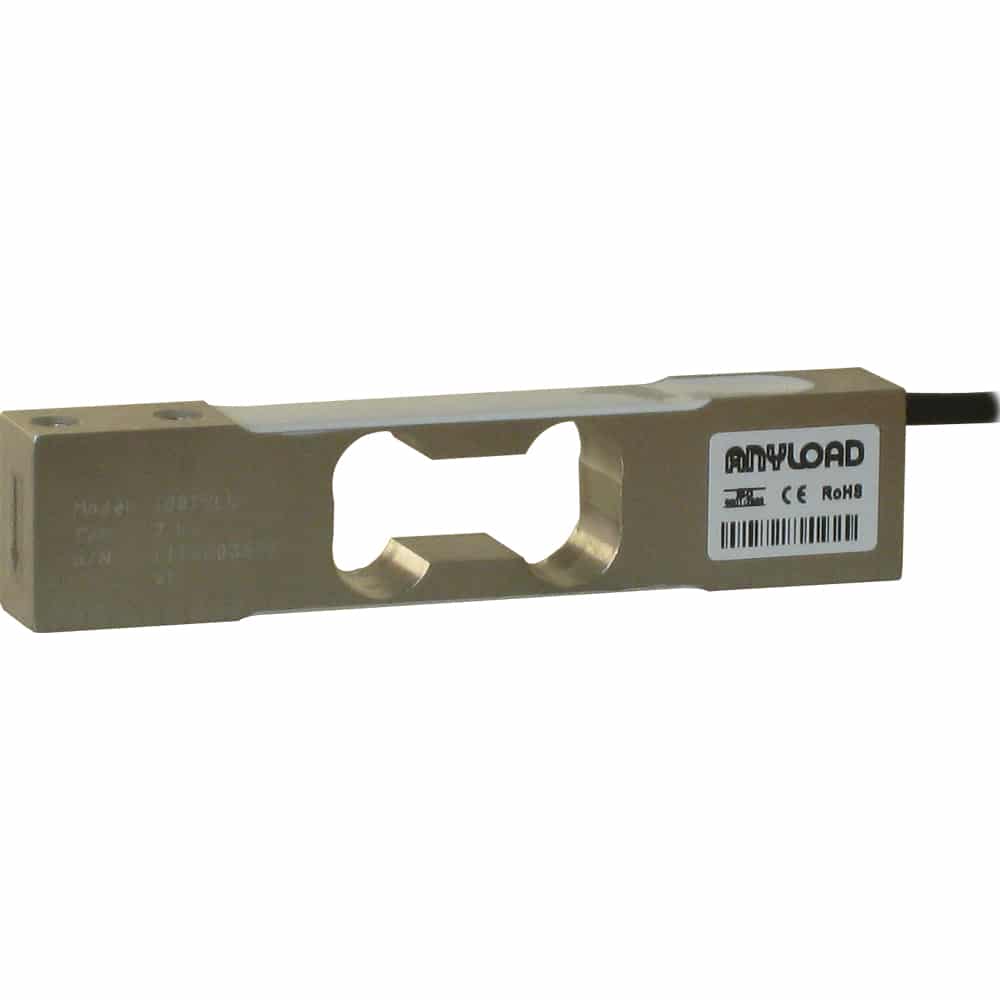

ANYLOAD 108TSLL Stainless Steel Single Point Load Cell

$270.00

The ANYLOAD 108TSLL is made of 2Cr13 stainless steel and available in 7kg-60kg rated capacities. Rated IP66, it is capable of withstanding harsh environments.

Other capacities and configurations available—please contact us with any questions.

Clear
SKU: 108TSLL-YZ Category:

ANYLOAD 108TSLL Key Features

  • 2Cr13 Stainless steel material
  • Rated Capacities: 7kg, 10kg, 15kg, 30kg, 60kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified

Available options: 108TSLL-7kg-YZ, 108TSLL-10kg-YZ, 108TSLL-15kg-YZ, 108TSLL-30kg-YZ, 108TSLL-60kg-YZ

Please contact us with any product interfacing inquiries.

Specifications

ANYLOAD 108TSLL Load Cell Specifications

Rated Capacity 7kg, 10kg, 15kg, 30kg, 60kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Documents

108TSLL Stainless Steel Single Point Load Cell Datasheet
CE Certificate of Conformity
RoHS Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 108TSLL Interchangeable Cross Reference

Manufacturer Equivalent Model
HBM PWS
Coti Global CG-PWS
Rice Lake RL1380
