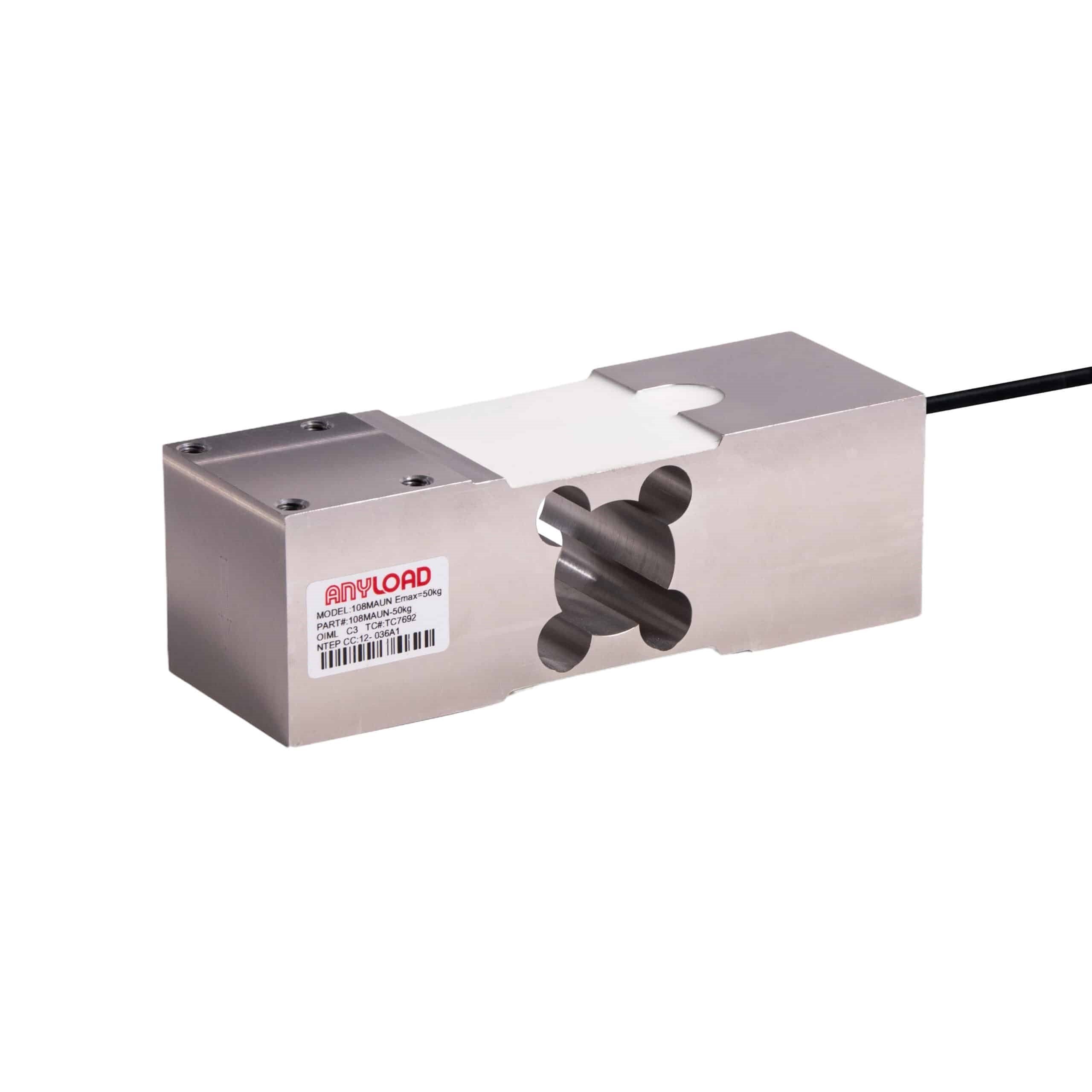

ANYLOAD 108MAUN Aluminum Single Point Load Cell
The ANYLOAD 108MAUN is a versatile, OIML C3 and NTEP-approved single-point load cell, designed for easy installation and cost-effective weighing solutions. With capacities ranging from 50kg to 660kg, it offers reliable performance in applications such as retail scales, counting scales, process supervision systems, and packaging devices. The aluminum body provides IP66-rated protection, making it suitable for mid-weight industrial applications. The 108MAUN is interchangeable with models like the HMB PW16 and Rice Lake RL1260, and features imperial mounting threads, with SI threading available in the 108MA model.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $202.00 |
10-24 | 10 - 24 | 5% $191.90 |
25-49 | 25 - 49 | 8% $185.84 |
50-99 | 50 - 99 | 11% $179.78 |
100+ | 100 + | 15% $171.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108MAUN Features
The ANYLOAD 108MAUN is a versatile single-point load cell that is OIML C3 and NTEP approved, offering a reliable and cost-effective weighing solution with excellent off-center loading compensation. It is designed for easy installation and is compatible with models such as the HMB PW16, Rice Lake RL1260, and Vishay Tedea-Huntleigh 1260, making it a flexible choice for various applications, including retail and counting scales. Popular in process supervision systems and packaging devices, the 108MAUN is suitable for mid-weight industrial applications, with capacities ranging from 50kg to 660kg. Its durable aluminum body provides IP66-rated ingress protection, ensuring reliable performance in harsh environments. Additionally, the 108MAUN features imperial mounting threads, with an option for SI threading available in the 108MA model.
- Material: Aluminum, Clear Anodized
- Mounting threads: Imperial
- Rated Capacities: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 50kg-500kg capacities: NTEP 1:5 000 Class III, Single Cell; OIML MAA C5, Y=12 300
- 635kg-660kg capacities: NTEP 1:4 000 Class III, Single Cell; OIML MAA C4, Y=4 000
- CE and RoHS-Certified
Available Options: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg & 660kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108MAUN Specifications
Rated Capacity | 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg |
Reference Max. Platform Size | 610mm x 700mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.017% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108MAUN Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
108MAUN-(50-660)kg |
Interchangeable Cross Reference
ANYLOAD 108MAUN Equivalents
Manufacturer | Equivalent Model |
Coti Global | CG-50-1 |
HBM | PW16 |
Rice Lake | RL1260 |
Vishay Tedea-Huntleigh | 1260 |
Stainless steel version of 108MAUN: ANYLOAD 651KS55UN
