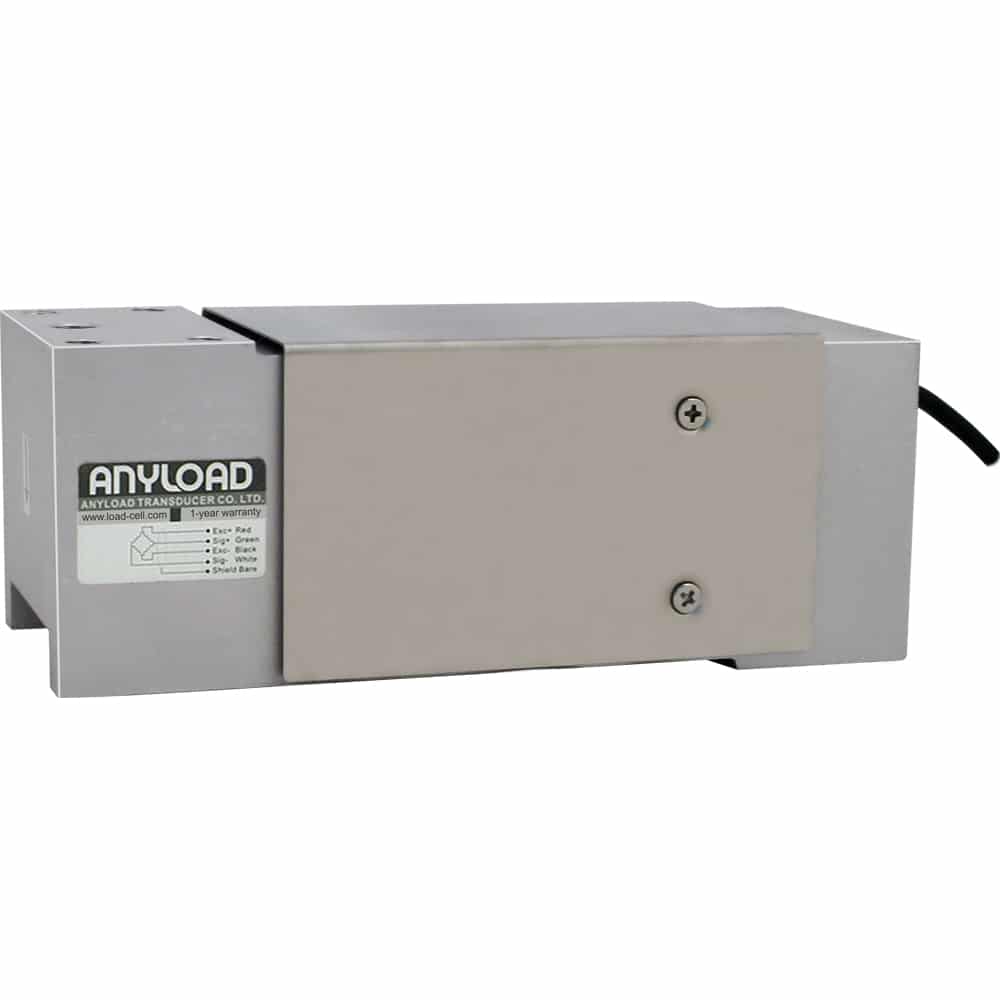

ANYLOAD 108UA Aluminum Single Point Load Cell
The ANYLOAD 108UA single-point load cell is popular for retail check-out and postal scales, packaging devices, airport baggage scales, and other applications with off-center loads. Available in capacities from 50kg to 1000kg, its aluminum body offers IP67-rated ingress protection. This model is OIML and NTEP certified and meets leading industry safety standards. The ANYLOAD 108UA has metric mounting threads; for imperial threading, see the 108UAUN.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $310.00 |
| 10 - 24 | $294.50 |
| 25 - 49 | $285.20 |
| 50 - 99 | $275.90 |
| 100 + | $263.50 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108UA Features
- Material: Aluminum, Clear Anodized
- Mounting Threads: Metric
- Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- 30kg-500kg capacities: NTEP 1:5 000 Class III, Single Cell
- 30kg: OIML MAA C6, Y=20 000; 50kg-500kg: OIML MAA C6, Y=29 000
- 635kg-1.5t capacities: NTEP 1:4 000 Class III, Single Cell; OIML MAA C4, Y=4 000
- CE and RoHS Certified
Available Options: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg & 1t.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108UA Load Cell Specifications
| Rated Capacity | 50kg, 100kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1000kg |
| Reference Max. Platform Size | 750mm x 750mm |
| Full-Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
108UA Aluminum Single Point Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity OIML Certificate of Conformity NTEP Certificate of Conformance |
3D Drawing
 |
108UA-(50-1000)kg |
Interchangeable Cross Reference
ANYLOAD 108UA Equivalents
| Manufacturer | Equivalent Model |
| ANYLOAD | 651BA |
| Cardinal | CHB* |
* Cardinal CHB is of metric threaded holes, without a U-shaped plate.
