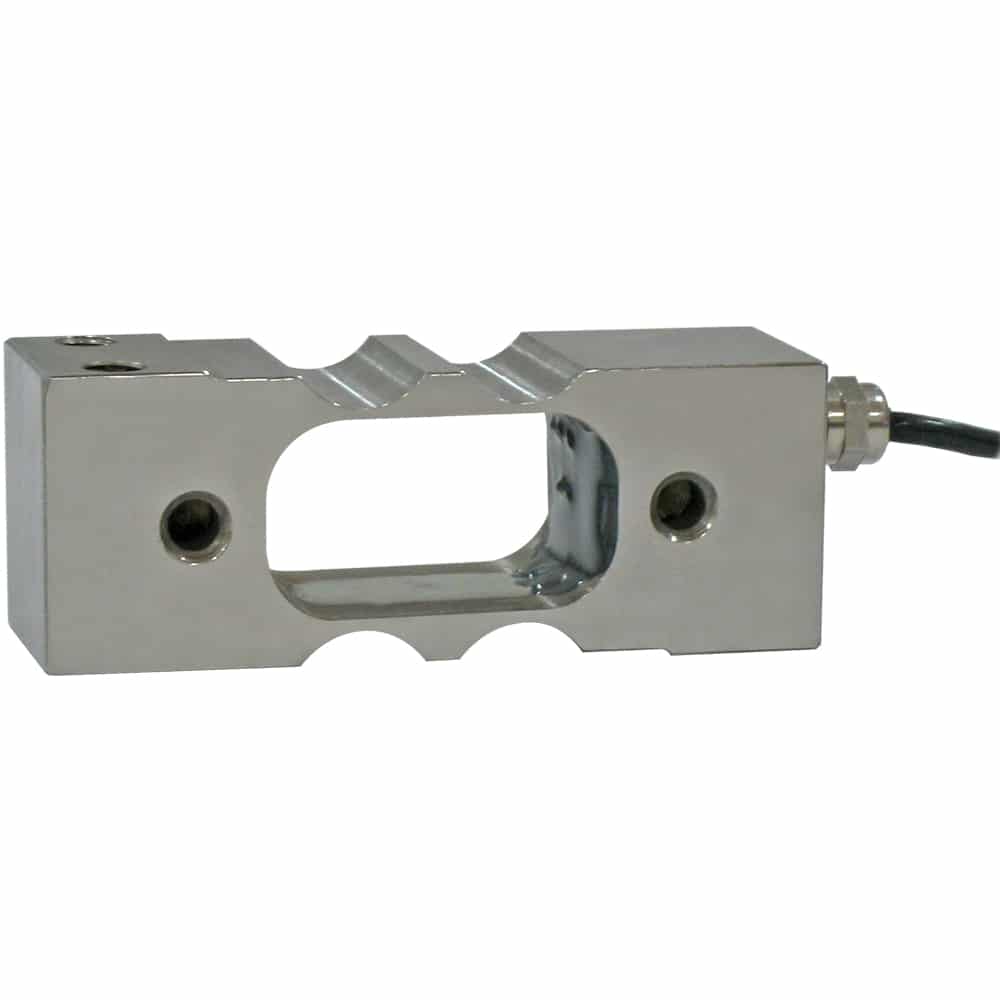

ANYLOAD 108QS Stainless Steel Single Point Load Cell
The 108QS is a durable stainless steel single-point load cell designed for stability in compact systems. With a wide range of rated capacities from 10lb to 1Klb, it offers excellent off-center loading compensation and is resistant to irregular loading. This easy-to-install and affordable model is interchangeable with the Cardinal SP6lb-100lb, making it ideal for platform scales, bench scales, check weighing, and more. The 108QS also features IP66-rated ingress protection, ensuring reliable performance in demanding environments.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $320.00 |
10-24 | 10 - 24 | 5% $304.00 |
25-49 | 25 - 49 | 8% $294.40 |
50-99 | 50 - 99 | 11% $284.80 |
100+ | 100 + | 15% $272.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108QS Features
The 108QS is a rugged and reliable stainless steel single-point load cell, designed to perform in a variety of compact weighing systems. Constructed from durable 2Cr13 stainless steel, it offers excellent resistance to irregular loading and provides superior off-center loading compensation. With rated capacities ranging from 10lb to 1Klb, the 108QS is versatile and adaptable for applications such as platform scales, bench scales, and check weighing. Its simple, easy-to-install design is interchangeable with the Cardinal SP6lb-100lb, making it a cost-effective solution for various weighing needs. Additionally, the 108QS features IP66-rated ingress protection, ensuring long-lasting performance even in challenging environments.
- Material: 2Cr13 Stainless steel
- Rated Capacities: 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS-certified
Available Options: 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb & 1Klb.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108QS Load Cell Specifications
Rated Capacity | 6lb, 10lb, 15lb, 25lb, 50lb, 100lb, 200lb, 500lb, 1Klb |
Reference Max. Platform Size = 100lb | 400mm x 450mm |
Reference Max. Platform Size 200lb | 500mm x 550mm |
Reference Max. Platform Size = 500lb | 650mm x 700mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108QS Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
108QS-6lb | |
108QS-(10-100)lb | |
108QS-200lb | |
108QS-(500-1k)lb |
Interchangeable Cross Reference
ANYLOAD 108QS Equivalents
Manufacturer | Equivalent Model |
Cardinal | SP 6lb-100lb* |
Cardinal | SP 200lb, 500lb, 1000lb |
Coti Global | CG-SPL |
Coti Global | CG-SPLM |
*Cardinal SP 6lb to 100lb capacities contain aluminum elements
