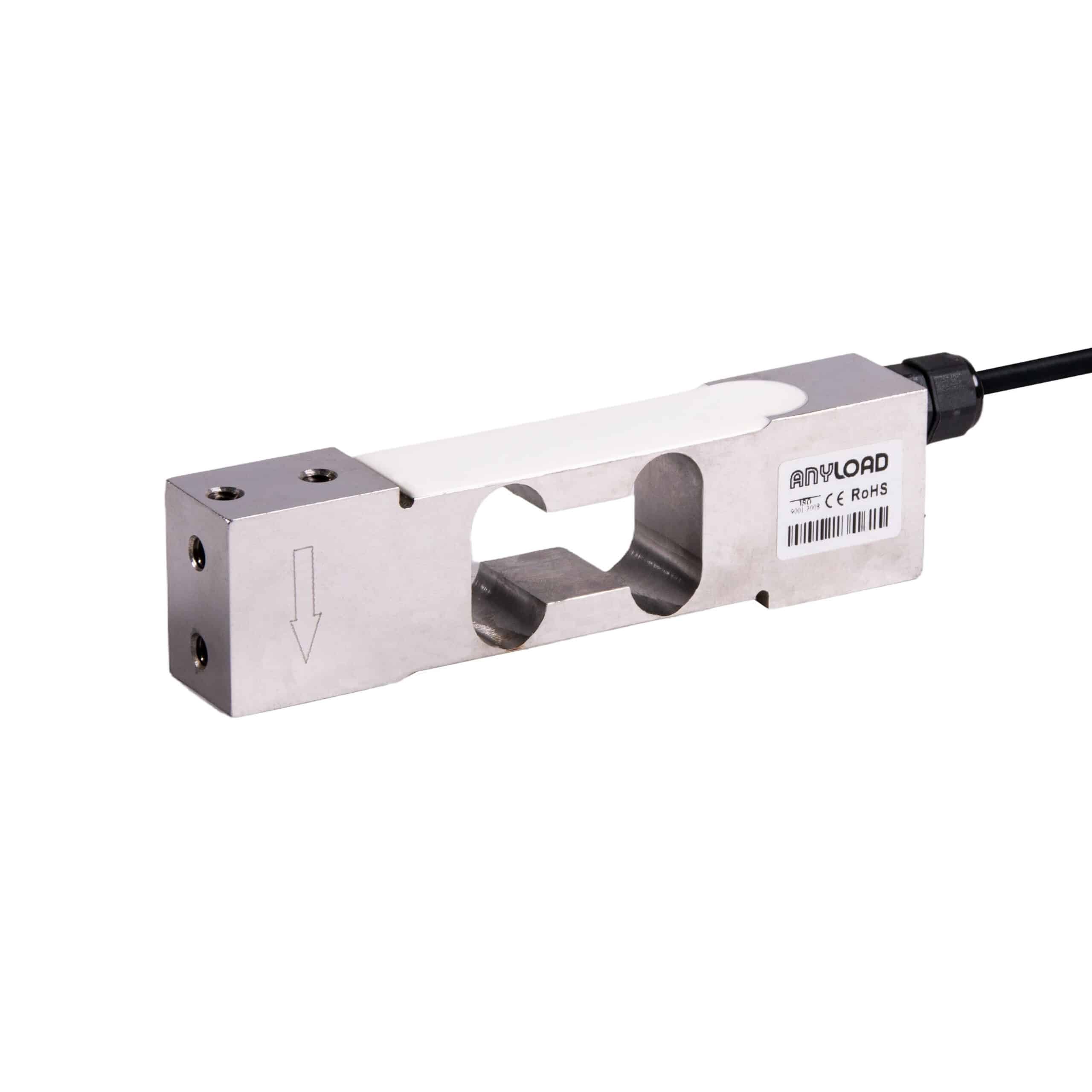

Home / Load Cells / Single Point / ANYLOAD 108TS Stainless Steel Single Point Load Cell ANYLOAD 108TS Stainless Steel Single Point Load Cell The ANYLOAD 108TS is made of 2Cr13 stainless steel and available in 5kg-150kg rated capacities. It is capable of withstanding harsh environments and has metric mounting threads. For imperial threads, see the ANYLOAD 108TSUN. Other capacities and configurations available—please contact us with any questions. $273.00 Capacity Choose an option 5kg 10kg 15kg 20kg 30kg 50kg 75kg 100kg 150kg ANYLOAD 108TS Stainless Steel Single Point Load Cell quantity Add to cart SKU: 108TS-YZ Category: Single Point Description Specifications Technical Documents Interchangeable Cross Reference Reviews (0) ANYLOAD 108TS Key Features 2Cr13 stainless steel Thread: Metric Rated Capacities: 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg Full Scale Output: 2mV/V ± 10% Safe Overload: 150% Breaking Overload: 300% IP Rating: IP66 CE and RoHS certified Available options: 108TS-5kg-YZ, 108TS-10kg-YZ, 108TS-15kg-YZ, 108TS-20kg-YZ, 108TS-30kg-YZ, 108TS-50kg-YZ, 108TS-75kg-YZ, 108TS-100kg-YZ, 108TS-150kg-YZ Please contact us with any product interfacing inquiries. Tacuna System’s Commitment We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized. SpecificationsANYLOAD 108TS Load Cell Specifications Rated Capacity 5kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg Reference Max. Platform Size 450mm x 500mm Full Scale Output 2mV/V ± 10% Zero Balance ± 0.02mV/V Non-linearity < ± 0.017% Repeatability < ± 0.017% Hysteresis Error < ± 0.017% Creep in 30 minutes < ± 0.023% Input Resistance 355Ω ± 15Ω Output Resistance 350Ω ± 3Ω Recommended Excitation 10V (15V Maximum) Insulation Resistance > 2GΩ (50V DC) Temperature Effect on Sensitivity < ± 0.0012% of Cn/k Temperature Effect on Zero Balance < ± 0.0040% of Cn/k Nominal Temperature Range -10°C to 40°C/14°F to 104°F Service Temperature Range -18°C to 65°C/0°F to 149°F Storage Temperature Range -50°C to 85°C/-58°F to 185°F Safe Overload 150% of full scale Breaking Overload 300% of full scale Seal Type Environmentally sealed IP Rating IP66 Technical Documents 108TS Stainless Steel Single Point Load Cell Datasheet 108TS (5-150)kg CE Certificate of ConformityRoHS Certificate of Conformity Interchangeable Cross ReferenceANYLOAD 108TS Interchangeable Cross Reference Manufacturer Equivalent Model Cardinal TSSP* Flintec PC1 (30kg-100kg) HBM PW15A Vishay Tedea-Huntleigh 1142 *Cardinal TSSP contains M10 mounting hole Reviews There are no reviews yet. Only logged in customers who have purchased this product may leave a review. Related products ANYLOAD 108SA Aluminum Single Point Load Cell0 out of 5 $143.00 ANYLOAD 108QS Stainless Steel Single Point Load Cell0 out of 5 $345.00 – $840.00 ANYLOAD 108TSUN Stainless Steel Single Point Load Cell0 out of 5 $273.00 ANYLOAD 108MAUN Aluminum Single Point Load Cell0 out of 5 $215.00 ANYLOAD 108PA Aluminum Single Point Load Cell0 out of 5 $98.00 ANYLOAD 108TAAL Aluminum Single Point Load Cell0 out of 5 $408.00
