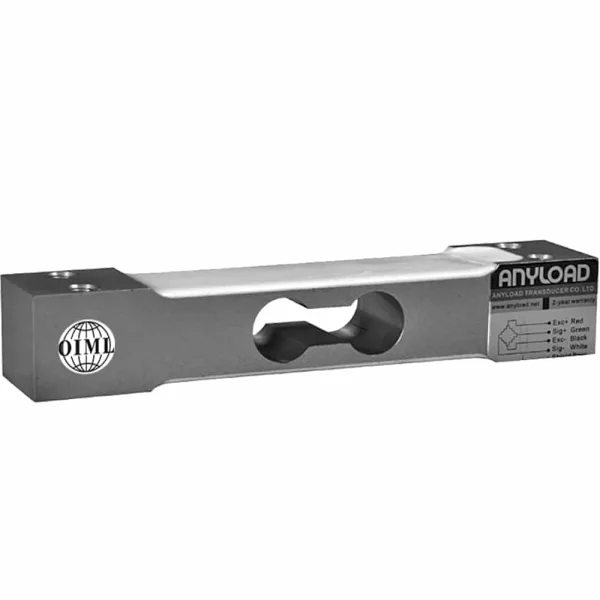

ANYLOAD 108BA Aluminum Single Point Load Cell
The ANYLOAD 108BA Aluminum Single Point Load Cell is an economical and versatile solution for lower-capacity applications, with capacities ranging from 3kg to 150kg. OIML and NTEP certified with IP66 water resistance, it offers superior safe overload tolerance and is easy to install. This model is ideal for OEM applications, retail scales, postal scales, medical devices, and other systems requiring high accuracy with off-center loads.
Other capacities and configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $82.00 |
10-24 | 10 - 24 | 5% $77.90 |
25-49 | 25 - 49 | 8% $75.44 |
50-99 | 50 - 99 | 11% $72.98 |
100+ | 100 + | 15% $69.70 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108BA Features
The ANYLOAD 108BA Aluminum Single Point Load Cell is a versatile and cost-effective weighing solution designed for lower-capacity applications, offering a range of rated capacities from 3kg to 150kg. This model is OIML and NTEP certified and features IP66 water resistance, making it both reliable and durable in various environments. Its superior safe overload tolerance and off-center load compensation ensure accurate measurements, even in challenging conditions. The 108BA is easy to install and compatible with a variety of models from other manufacturers, making it a popular choice for OEM applications, retail scales, postal scales, medical devices, and other small packaging and process weighing systems.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- 0.5m standard cable length
- IP Rating: IP66
- OIML C3, Y=4 300 certified from 10kg-150kg
- CE, RoHS, and Ex certified
Available Options: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 50kg, 60kg, 100kg & 150kg.
Some capacities may have 1m and 3m length cables available. Please contact us to check current stock, or to clarify any product-related or implementation-related questions.
Specifications
ANYLOAD 108BA Aluminum Single Point Load Cell Specifications
Rated Capacity | 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg |
Reference Max. Platform Size | 400mm x 400mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 415Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 108BA Equivalents
Manufacturer | Equivalent Model |
Artech | 61022 |
Mettler-Toledo | MT1022 |
Flintec | PC22* |
HBM | PW6C** |
HBM | PW6K |
Rice Lake | RL1521A |
Vishay Celtron | LPS ME 6-35kg |
Vishay Tedea-Huntleigh | 1022 |
