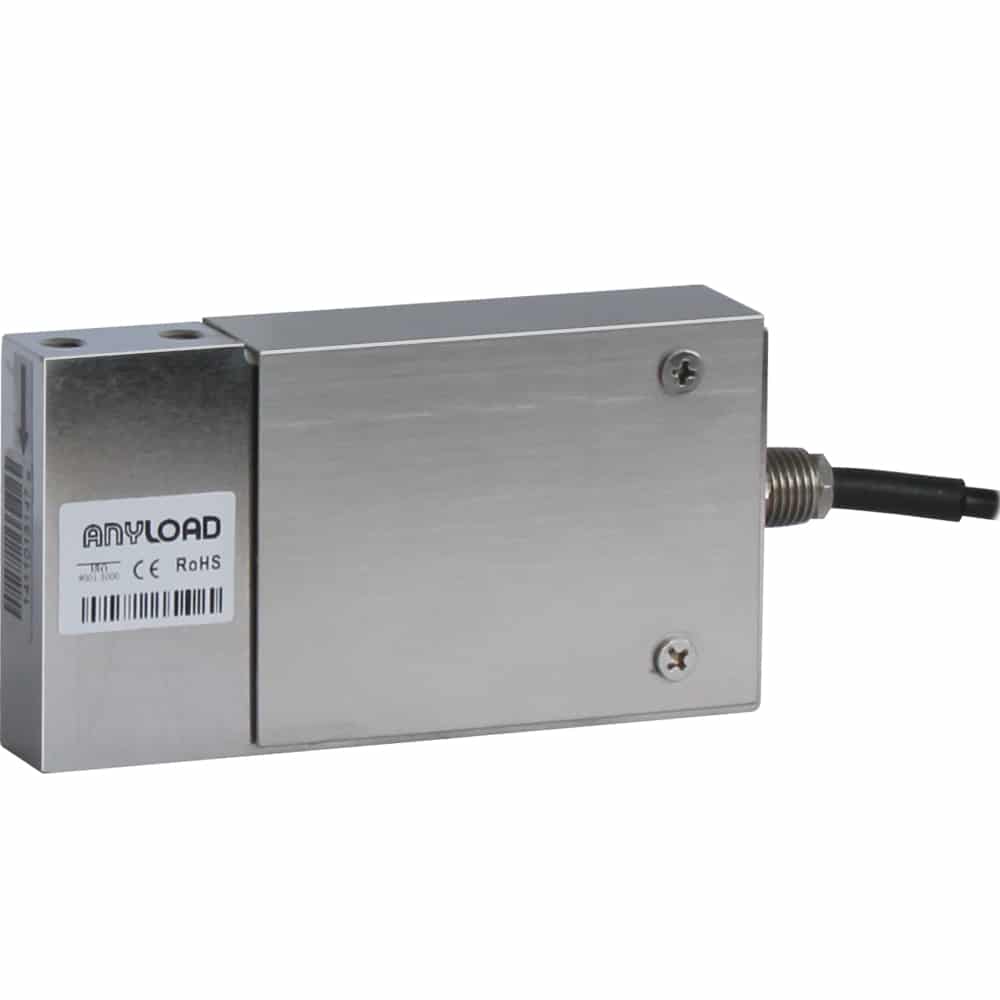

ANYLOAD 108TSST Stainless Steel Single Point Load Cell
The 108TSST Single Point Load Cell is 2Cr13 stainless steel and comes in 25lb-100lb capacities. Rated IP66, it is capable of withstanding exposure to high pressure water jets and dust.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $420.00 |
10-24 | 10 - 24 | 5% $399.00 |
25-49 | 25 - 49 | 8% $386.40 |
50-99 | 50 - 99 | 11% $373.80 |
100+ | 100 + | 15% $357.00 |
SKU: 108TSST-YZ
Category: Single Point
ANYLOAD 108TSST Key Features
- 2Cr13 Stainless steel
- Rated Capacities: 10lb, 15lb, 25lb, 50lb, 100lb
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
Available options: 108TSST-25lb-YZ, 108TSST-50lb-YZ, 108TSST-100lb-YZ
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 108TSST Load Cell Specifications
Rated Capacity | 10lb, 15lb, 25lb, 50lb, 100lb |
Reference Max. Platform Size < 25lb | 200mm x 250mm |
Reference Max. Platform Size > 50lb | 300mm x 300mm |
Full Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP66 |
Technical Documents
108TSST Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 108TSST Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Coti Global | CG-51 |
Vishay Sensortronics | 60051 |
