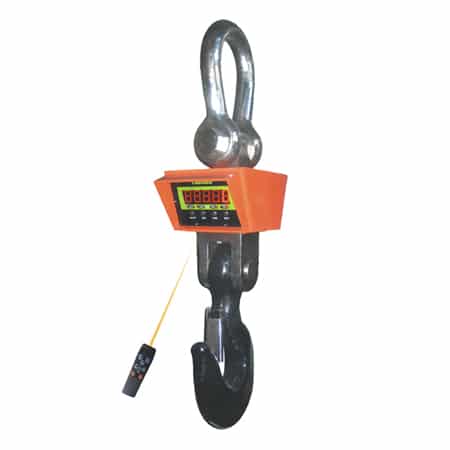

ANYLOAD OCSZ Heavy Duty Crane Scale
The ANYLOAD OCSZ heavy duty crane scale is designed to provide accurate and reliable weighing for large industrial applications. Rated OIML class III accuracy, the OCSZ is available in 20Klb, 30Klb, 40Klb, 60Klb, and 100Klb capacities. This model has a whole steel anti-collision enclosure, alloy steel load receptor, and a heavy duty bow shackle and eye hook. Its display features a 56mm 5-digit LED for easy reading at a distance, an infrared remote control and a high capacity rechargeable battery with a battery life of up to 80 hours. Not sure which ANYLOAD crane scale is the best for your application? See this comparison chart.
$2,848.00 – $17,265.00
ANYLOAD OCSZ Heavy Duty Crane Scale Features:
-
- Capacities: 20Klb, 30Klb, 40Klb, 60Klb, 100Klb
- Accuracy Class: OIML III
- Safe Overload: 120% of full scale
- Breaking Overload: 500% of full scale
- Whole steel anti-collision scale enclosure
- Alloy steel load receptor
- Heavy duty bow shackle
- Heavy duty eye hook
- Selectable units: kilograms (kg), pounds (lb)
- Rechargeable 6V / 10Ah battery included
- Power adaptor 9V / 1500mA included
- Infrared remote control included
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications & Functions
ANYLOAD OCSZ Heavy Duty Crane Scale Functions:
-
- Zero
- Tare
- Hold
- Low battery alarm
- Battery supervision
- Overload alarm
- Auto calibration
- 3-point linearity correction
- Unit switch: kg/lb
- Gravity acceleration
- Resolution switch
- Auto-off set
- Display speed set
ANYLOAD OCSZ Specifications:
| Capacity | 20Klb, 30Klb, 40Klb, 60Klb, 100Klb |
| Accuracy Class | OIML III |
| Enclosure Material | Whole Steel Anti-Collision |
| Display Type | LED |
| Display Digits | 5 digits |
| Digit Height | 56mm / 2.20in |
| Safe Overload | 120% of full scale |
| Breaking Overload | 500% of full scale |
| Rechargeable Battery | 6V/10Ah (included) |
| Battery Life | 80 hours |
| Power Adaptor | 9V / 1500mA (included) |
| Remote Distance | 10m / 32.8′ |
Technical Documents
 |
OCSZ Crane Scale Brochure and Data Sheet |
 |
OCS Series Crane Scale Technical Manual OCS Series Crane Scale User Guide |
|
Crane Scale Comparison Chart |
