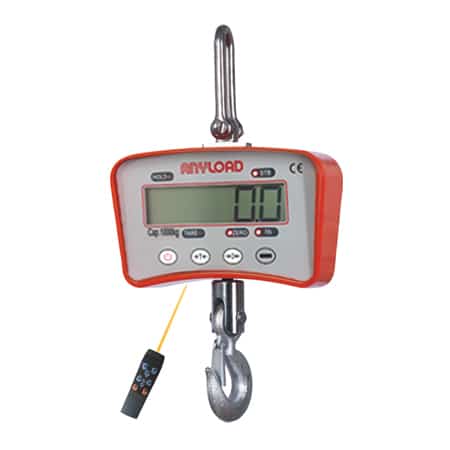

ANYLOAD OCSM2 Light Duty Crane Scale
The ANYLOAD OCSM2 light duty crane scale delivers reliable and accurate weight measurements for lighter industrial loads. Available in 200lb, 400lb, 600lb, 1000lb and 2000lb options, the OCSM2 has a die-cast aluminum waterproof enclosure, stainless steel load receptor and shackle, and rotating eye hook. This crane scale features a 30mm high, 5-digit backlit LCD display, and infrared remote control that allows operation from a distance. The OCSM1 offers auto overload alarm at 100%F.S.+9e, HOLD function, auto power-off function, tare in/tare out, and unit switching between kilograms and pounds. Not sure which crane scale is right for your application? See this comparison chart.
Note this product is special order only – please contact us for ordering information. For the stock version of this scale with LED display, see the ANYLOAD OCSM1.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $595.00 |
10-24 | 10 - 24 | 5% $565.25 |
25-49 | 25 - 49 | 8% $547.40 |
50-99 | 50 - 99 | 11% $529.55 |
100+ | 100 + | 15% $505.75 |
ANYLOAD OCSM2 Crane Scale Features:
-
- Capacities: 200lb, 400lb, 600lb, 1,000lb, 2,000lb
- Accuracy Class: OIML III
- Safe Overload: 120% of full scale
- Breaking Overload: 300% of full scale
- Aluminum die-casting scale enclosure
- Stainless steel load receptor
- Stainless steel shackle
- Rotatable hook
- Selectable units: kg & lb (lb unit annunciator will turn on if lb is selected and will turn off if set to kg)
- Rechargeable 6V/5Ah battery included
- Power adaptor 9V/1500mA included
- Infrared remote control included
ANYLOAD OCSM2 Crane Scale General Functions:
-
- Zero
- Tare
- Hold
- Low battery alarm
- Battery supervision
- Overload alarm
- Auto calibration
- 3-point linearity correction
- Unit switch: kg/lb
- Gravity acceleration
- Resolution switch
- Auto-off set
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD OCSM2 Crane Scale Specifications:
Capacity | 200lb, 400lb, 600lb, 1000lb, 2000lb |
Accuracy Class | OIML III |
Enclosure Material | Die-casting aluminum |
Display Type | Backlit LCD |
Display Digits | 5 digits |
Display Height | 30mm / 1.18in |
Working Temperature | -10°C to 40°C / 14°F to 104°F |
Safe Overload | 120% of full scale |
Breaking Overload | 300% of full scale |
Rechargeable Battery (included) | 6V / 5Ah |
Battery Life | 80 hours |
Power Adaptor (included) | 9V / 1500mA |
Remote Distance | 10m / 32.8′ |
Technical Documents
OCSM2 Crane Scale Brochure and Data Sheet | |
OCS Series Crane Scale Technical Manual OCS Series Crane Scale User Guide |
|
Crane Scale Comparison Chart |
