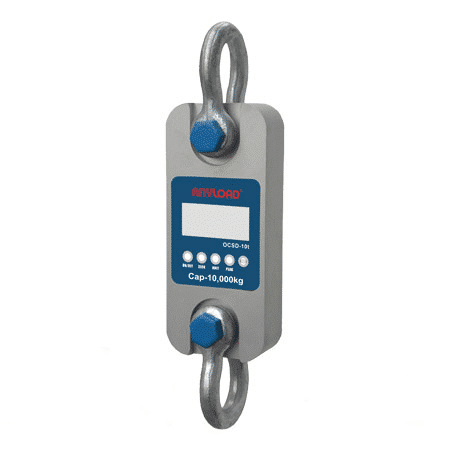

ANYLOAD OCSD Wireless Dynamometer
The ANYLOAD OCSD wireless dynamometer is designed for industrial and commercial tensile weighing applications that demand high accuracy and reliability without cabling. This device is available in 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, and 200t capacities. Enclosures for OCSD devices up to 5t capacities are constructed with aluminum while those offering 10t and above capacities have alloy steel enclosures. The OCSD dynamometer display features a 25mm 5-digits LCD with backlight to allow easy reading of measurements. Other features of this wireless dynamometer include fast resolution switching, peak hold function, auto power-off function, 2 programmable set-point and unit switching between kg, lb, t, N and kN.
An infrared remote control, a wireless indicator, a galvanized shackle hook and an indicator/printer are available as optional features. This device requires one of the P-Series displays (P180, P380 or P580) for calibration/parameter changes.
$1,030.00 – $36,900.00
ANYLOAD OCSD Wireless Dynamometer Scale Features:
- Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t
- Accuracy Class: OIML III
- Safe Overload: 120% of full scale
- Breaking Overload: 400% of full scale
- Aluminum enclosure for capacities 5t and below
- Alloy steel enclosure for capacities 10t and above
- Safe Overload: 120% of full scale
- Selectable units: kg, lb, t, N, kN
- 3 x AA batteries
- Factory calibrated
- Indicator and shackles not included
- A P-Series indicator is required to change calibration and parameter settings
Available options: Each rated capacity dynamometer can be purchased alone or with one of the following remote displays: ANYLOAD P180, ANYLOAD P380, ANYLOAD P580, ANYLOAD BD3, ANYLOAD BD5
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications & Functions
ANYLOAD OCSD Wireless Dynamometer Functions:
• Zero
• Tare
• Peak hold
• Low battery alarm
• Low battery indication
• 2-alarm set-point
• auto calibration
• 3-point linearity correction
• Unit switch: kg, lb, t, N, kN
• Gravity acceleration
• Resolution switch
• Auto power-off
ANYLOAD OCSD General Specifications:
| Capacity | 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t |
| Accuracy Class | OIML III |
| Enclosure Material OCSD 1t-5t | Aluminum |
| Enclosure Material OCSD 10t-200t | Alloy Steel |
| Display Type | LCD with backlight |
| Display Digits | 5 digits |
| Digit Height | 25mm/0.98in |
| Working Temperature | -20°C to 50°C/-4°F to 122°F |
| Safe Overload | 120% of full scale |
| Breaking Overload | 400% of full scale |
| Power Supply | 3 x AA batteries |
| Battery Life | 50 hours |
| Unit Switch | kg, t, lb, N, kN |
Shackle Guide
ANYLOAD OCSD Wireless Dynamometer Shackle Guide:
| Part Number | Corresponding Shackle |
| OCSD-1t | SBX-3.25t |
| OCSD-2t | SBX-4.75t |
| OCSD-3t | SBX-4.75t |
| OCSD-5t | SBX-6.5t |
| OCSD-10t | SBX-13.5t |
| OCSD-20t | SBX-25t |
| OCSD-30t | SBX-35t |
| OCSD-50t | SBX-55t |
Technical Documents
 |
ANYLOAD OCSD Wireless Dynamometer Datasheet |
 |
ANYLOAD OCSD Wireless Dynamometer Manual |
|
ANYLOAD Crane Scale Comparison Chart |
