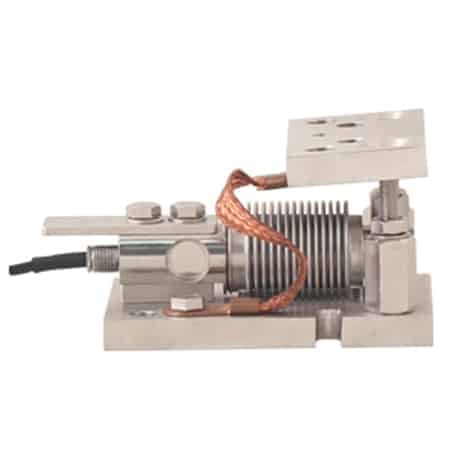

ANYLOAD 563RSM5 Stainless Steel Compression Weigh Module
The ANYLOAD 563RSM5 Compression Weigh Module improves safety and accuracy in large industrial weigh systems. Made with 304 stainless steel, it offers superior durability and corrosion resistance.
Also sold as part of: MK4-563RSM5
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $616.00 |
| 10-24 | 10 - 24 | 5% $585.20 |
| 25-49 | 25 - 49 | 8% $566.72 |
| 50-99 | 50 - 99 | 11% $548.24 |
| 100+ | 100 + | 15% $523.60 |
- Description
- Specifications
- Technical Documents
- Assembly Drawings
- Mounting Kit & Manual
- Interchangeable Cross Reference
ANYLOAD 563RSM5 Weigh Module
The ANYLOAD 563RSM5 Stainless Steel Compression Weigh Module supports the 563RS single-ended beam load cell in structures. It features both overload protection and 50% rated load anti-lifting protection.
- Material: 304 Stainless Steel
- Fits Capacities: 5-200kg
- Self-checking with 50% rated load anti-lifting protection
- Multi-directional overloading isolation for the load cell
- Equipped with lateral stops
- Protects load cells from stray currents
- 563RS Load Cell Certifications: NTEP, OIML, CE, ATEX, IECEx, FM, Ex NEPSI, and RoHS
- Load cell not included
Available Option: 5-200kg
Contact us for any inquiries on load cell interfacing.
Specifications
ANYLOAD 563RSM5 Weigh Module Specifications
The 563RSM5 assembles the ANYLOAD 563RS single-ended beam load cell. Load-cell performance specifications:
| Assembles | 563RS Single-ended Beam Load Cell (load cell not included) |
| Module Material | Stainless Steel |
| Rated Capacities | 5-200kg |
| Full-Scale Output | 2.0mV/V |
| Zero Balance | <±0.05mV/V |
| Non-linearity | <±0.017% |
| Repeatability | <±0.017% |
| Hysteresis Error | <±0.017% |
| Creep in 30 minutes | <±0.023% |
| Input Resistance | 400Ω |
| Output Resistance | 350Ω |
| Insulation Resistance | >2GΩ (50V DC) |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Load Cell Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
| 563RSM5 Datasheet |
Mounting Kit & Manual
| 563RSM5 Weigh Module Kit | |
| 563RSM5 Installation Manual |
Interchangeable Cross Reference
ANYLOAD 563RSM5 Equivalents
| Manufacturer | Equivalent Model |
| Rice Lake | 1700HE |
