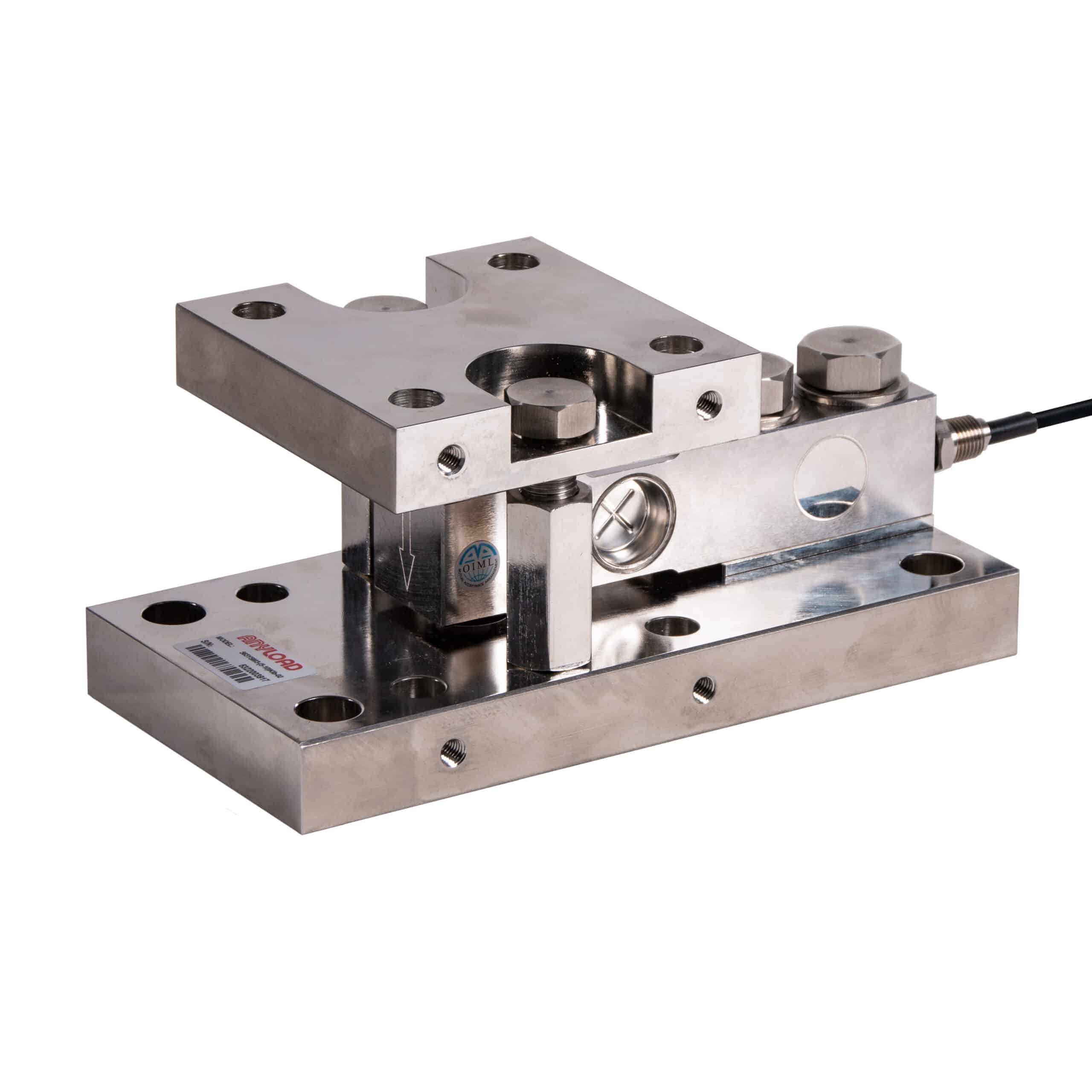

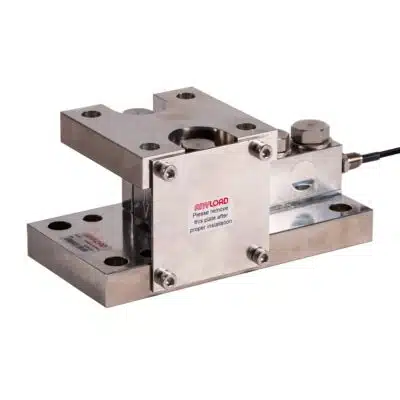

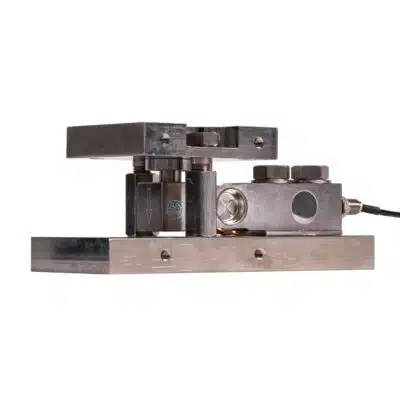

ANYLOAD 563YSM3 Stainless Steel Compression Weigh Module
The ANYLOAD 563YSM3 Compression Weigh Module ensures accuracy and safety in weighing systems using the 563YS load cell. Its highly durable 304 stainless steel construction includes lateral stops and a rocker pin design. Available in two standard options with capacities from 500lb to 10Klb.
Load cell sold separately.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $814.00 |
| 10-24 | 10 - 24 | 5% $773.30 |
| 25-49 | 25 - 49 | 8% $748.88 |
| 50-99 | 50 - 99 | 11% $724.46 |
| 100+ | 100 + | 15% $691.90 |
The ANYLOAD 563YSM3 Weigh Module integrates the 563YS single-ended beam load cell into a self-checking mounting assembly for tank, hopper, and vessel weighing. The module accommodates thermal expansion and lateral movement, while anti-lift and side-force protection keep the load cell aligned under dynamic conditions. Available in 500 lb to 10,000 lb capacities.
ANYLOAD 563YSM3 Compression Weigh Module Features
- Assembles the 563YS Single-Ended Beam Load Cell
- Stainless Steel Material
- Available Capacities: 500lb-10Klb/250kg-5t
- Rocker pin loading design
- Equipped with lateral stops
- Features both overload and 50% anti-lifting protection
- Load cell not included.
563YS Load Cell Certifications
- NTEP-certified load cells ranging from 500lb-10Klb
- CE, RoHS, and Ex ex-certified load cells
Available Options: 500lb-SE5Klb, 5Klb-10Klb
Contact us for any related questions.
Specifications
ANYLOAD 563YSM3 Weigh Module Specifications
The 563YSM3 assembles the ANYLOAD 563YS single-ended beam load cell. Load-cell performance specifications:
| Assembles | 563YS Single-ended Beam Load Cell (load cell not included) |
| Module Material | Stainless Steel |
| Rated Capacities | (0.5-SE5)klb, (5-10)klb |
| Full-Scale Output | 2.0mV/V |
| Zero Balance | <±0.02mV/V |
| Non-linearity | <±0.023% |
| Repeatability | <±0.023% |
| Hysteresis Error | <±0.023% |
| Creep in 30 minutes | <±0.030% |
| Input Resistance | 350Ω |
| Output Resistance | 350Ω |
| Insulation Resistance | >2GΩ (50V DC) |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Load Cell Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
| ANYLOAD 563YSM3 Datasheet | |
| CE Certificate of Conformity |
Assembly Drawings
| Anyload-563YSM3-0.5-SE5Klb | |
| Anyload-563YSM3-5-10Klb |
Mounting Kit
| 563YSM3-02 Module Kit |
