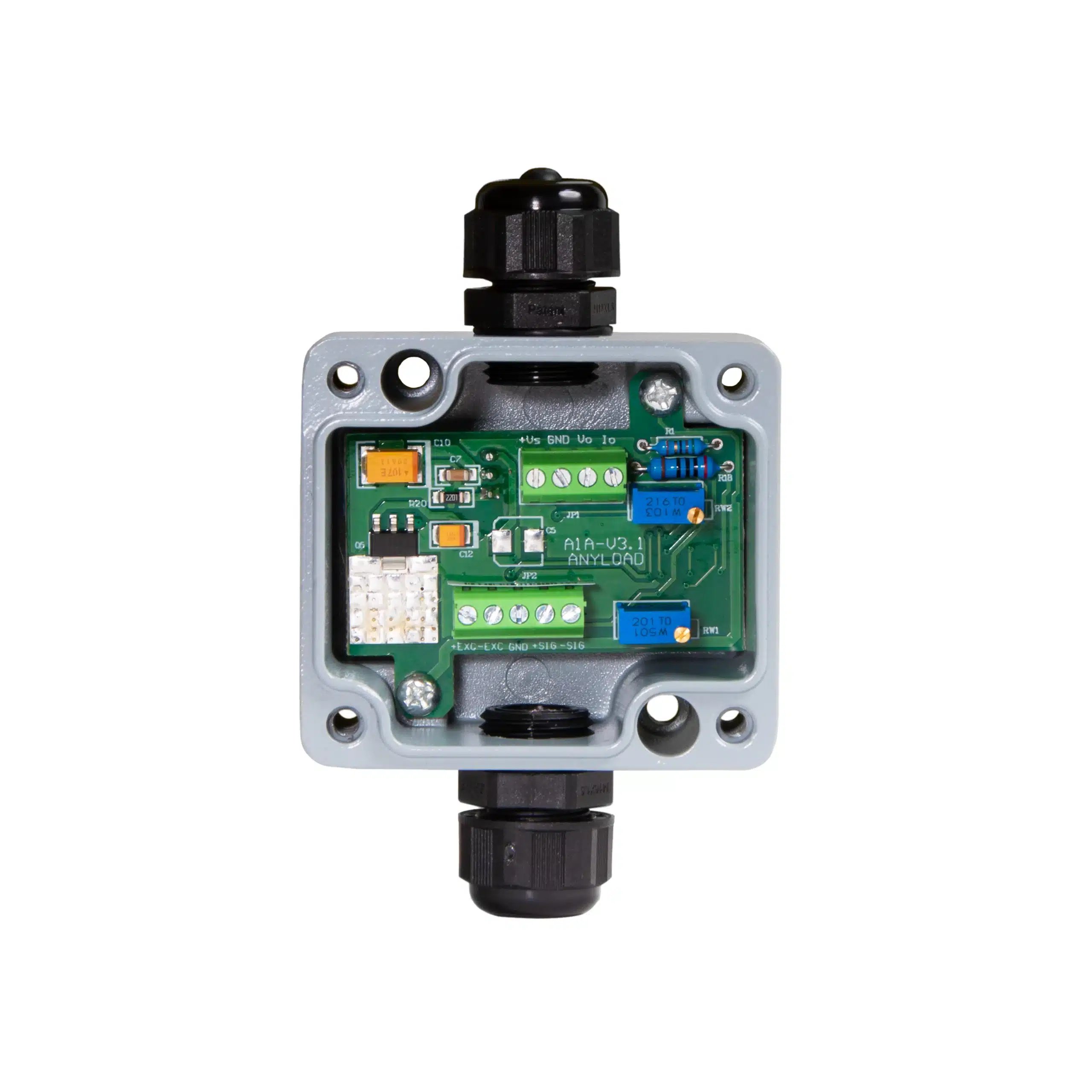

• a photo of the inside of a load cell amplifier

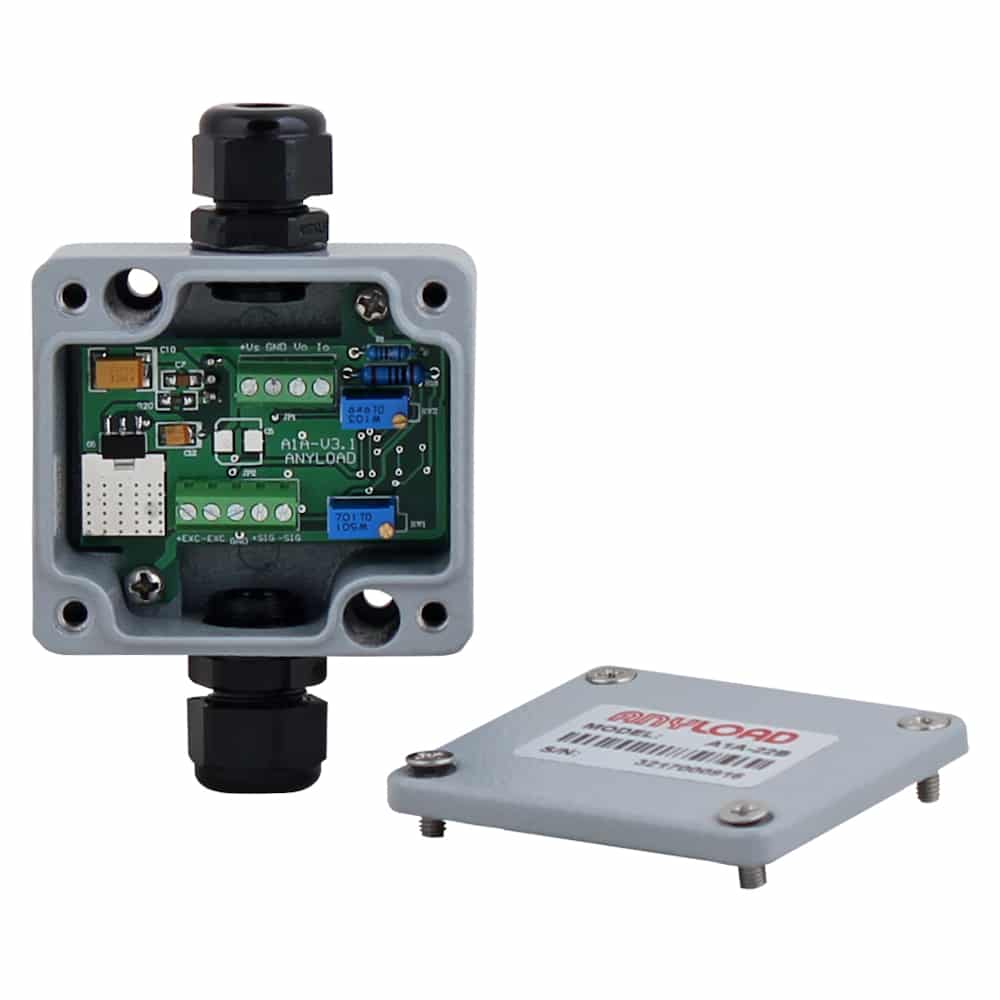

ANYLOAD A1A-22B Load Cell Amplifier

5.00 out of 5
(1 customer review)

This ANYLOAD A1A-22B Load Cell Amplifier provides signal conditioning for a single load cell, or multiple through a junction box. Its aluminum casting enclosure offers IP66 rated ingress protection. The A1A series amplifiers are best used for single-ended operations such as tension or compression; however transitioning between the two is possible by setting zero at half the amplifier’s span.  Note, the ANYLOAD A1A-22B is the upgraded version of the discontinued A1A-22.

For a quick comparison of this product to our other amplifier products, see our Load Cell Amplifier Comparison Table in our Knowledge Base.

$228.00

Quantity Price
1 - 9 $228.00
10 - 24 $216.60
25 - 49 $209.76
50 - 99 $202.92
100 + $193.80
Tacuna Systems Price Match Guarantee

ANYLOAD A1A-22 Load Cell Amplifier

The A1A-22 amplifier has one input port and can connect directly to a single load cell. With a junction box, the A1A-22 amplifier can drive up to 4 x 350Ω load cells or 8 X 700Ω load cells, making it suitable for varying applications.

  • DC-powered
  • Suitable for all strain gauge types
  • Enclosed in aluminum casting
  • Broad output signal range: 0V – 10V or 4mA – 20mA
  • Contains 2 through holes for quick installation
  • Zero Calibration and Span Calibration settable via potentiometer

Available options: A1A-22
Please contact us with any load cell interfacing inquiries.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Specifications

ANYLOAD A1A-22 Load Cell Amplifier Specifications

Load Cell Type All strain gauge types
Capacity 1×350Ω directly connected or 4×350Ω or 8×700Ω through a junction box
Power Supply 24V DC ± 10%
Input Range 0mV- 30mV
Maximum Power Voltage (DC) 30V, 2.5A
Output Signal (Voltage) 0V-10V
Output Signal (Current) 4mA-20mA
Enclosure Material Aluminum casting
Operating Temperature Range -10 to 50°C or 14 to 122°F
IP Rating IP66

Technical Documents

ANYLOAD A1A-22 and A1A-22B Datasheet
Series Manual: ANYLOAD A1A

3D Model: ANYLOAD A1A-22
