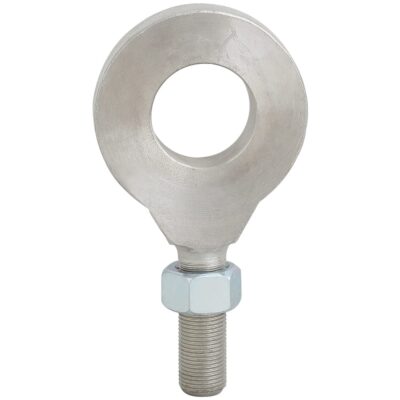

ANYLOAD EYH-DA Eye Bolt
The ANYLOAD EYH-DA Eye Bolt features forged, medium carbon alloy steel construction for a higher safe loading capacity. This eye bolt is ideal for heavy-duty tension-weighing assemblies. A single jam nut comes with each order.
| Quantity | Price |
|---|---|
| 1 - 9 | $142.00 |
| 10 - 24 | $134.90 |
| 25 - 49 | $130.64 |
| 50 - 99 | $126.38 |
| 100 + | $120.70 |
ANYLOAD EYH-DA Eye Bolt
Available in imperial and metric threads, the EYH eye bolts are manufactured from alloy steel and have a higher safe loading rate for tension weighing applications.
This product is similar to the cast alloy steel ANYLOAD EYE Eye Bolt but for larger loads.
- Alloy steel construction
- Includes 1 jam nut
- Safe working loads: 11Klb to 22Klb (3t-55t)
- Imperial thread sizes: 3/4″, 1″, 1 1/4″
- Metric thread sizes: M16, M18, M24, M30, M36, M42
Available Options: 3/4″ & 1 1/4″.
Please contact us with any product interfacing inquiries.
Specifications
EYH-DA Bolt Specifications
| Part No. | Safe Working Load | Shipping Weight (kg) Approx. |
|---|---|---|
| EYH-DA-3/4 | 11Klb | 0.8 |
| EYH-DA-1-1/4 | 22Klb | 2.7 |
Technical Documents
 |
EYH Eye Bolt Datasheet |
