ANYLOAD CB6 6-Wire Load Cell Cable



The ANYLOAD CB6 Load Cell Cable is a 6-wire conductor with a PVC exterior with copper and aluminum foil shielding. See the ANYLOAD CB4 for a 4-wire version of this product.

Before ordering, feel free to skim the articles External Wiring in Strain Gauge Load Cells, and Reducing Noise in Very Sensitive Load Cell Applications. These articles review how cable lengths and the number of wires affect load cell calibration, and RFI/EMI considerations, respectively.

Quantity Price
1 - 9 $553.00
10 - 24 $525.35
25 - 49 $508.76
50 - 99 $492.17
100 + $470.05
Tacuna Systems Price Match Guarantee
SKU: CB6 Category:

ANYLOAD CB6 Load Cell Cable Features

  • PVC jacket material
  • Copper shield and aluminum foil protection to reduce RFI and EMI
  • Outer diameter: 7.6mm ± 0.3mm
  • Standard black 6-wire load cell cable
  • ANYLOAD color-compliant wiring

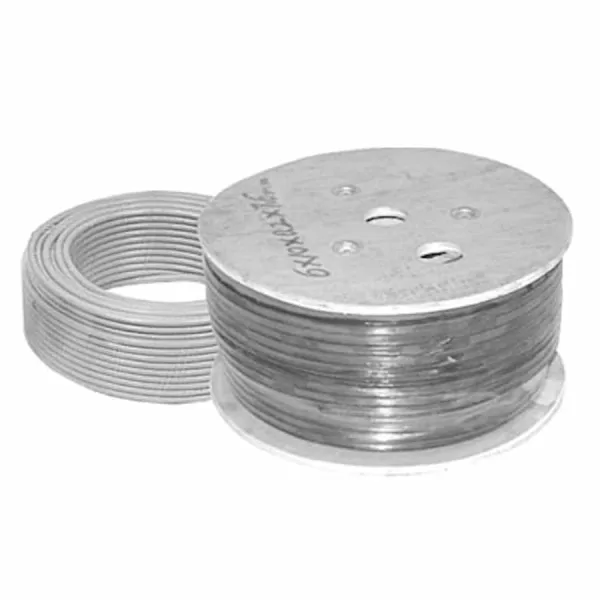

  • 100m length without reel (300m with reel)
  • Custom lengths available; consult with us before choosing this option

Available options: CB6-7.6mm-100m,  CB6-7.6mm-300m

Please contact us with any product-related questions.

Tacuna Systems Commitment

We strive to help our diverse customer base achieve their desired outcomes. As a small business, we take great pride in providing free consultation for product design & prototyping to ensure our valued clients have the right equipment to be successful. Our engineering specialists have extensive R&D experience in strain gauge load cell technology, and we are well-known for our in-house designed customizable signal conditioners and amplifiers.

Specifications

CB6 Load Cell Cable Specifications

Number of Wires 6 wires
Outside Diameter 7.6mm ± 0.3mm
Working Temperature 30°C to 85°C/-22°F to 185°F
Wire Resistance ≤ 0.9Ω/mm
Screen 1
Capacitance ≤ 80PF/m
Length without Reel 100m/328.08′
Length with Reel 300m/984.25′
Jacket Material PVC
Jacket Color Black
Cross Section/AWG 0.2mm2/22 gauge

Technical Documents

 CB6 Load Cell Cable Datasheet
