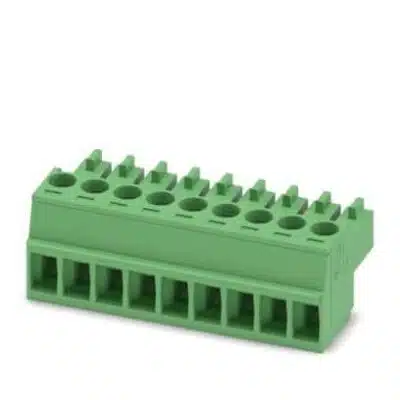

• A green, nearly rectangular prison whose length is about two and a half times its almost equivalent width and depth. The side away from the viewer appears to have an indent along the lower edge such that the object's cross-section looks like a fat, inverted "L". Nine square holes of nearly equal height and width appear along the lower edge of the object's long side. Nine round holes appear on the top of the object, along the closest edge to the viewer. Slightly raised "fins" appear between the round holes.

9-Pin Detachable Screw Terminal Block


This 9-pin terminal block quickly changes load cell connections without the need for special tools. This makes this product ideal for creating semi-permanent configurations. For a 6-pin version, see our 6-pin terminal block product.



Quantity Price
1 - 9 $4.70
10 - 24 $4.47
25 - 49 $4.32
50 - 99 $4.18
100 + $4.00
Tacuna Systems Price Match Guarantee

9-Pin Terminal Block Features

  • 9-pin – for use with the EMBSGB200 Amplifier
  • Features a detachable screw (Do not over-tighten the screw as it may damage the inserted wire)
  • Terminal block is useful for situations that require semi-permanent connections
  • Learn more about the basics of terminal blocks and available types here

Contact us with any product-related questions.


Tacuna Systems Commitment

We strive to help our diverse customer base achieve their desired outcomes. As a small business, we take great pride in providing free consultation for product design & prototyping to ensure our valued clients have the right equipment to be successful. Our engineering specialists have extensive R&D experience in strain gauge load cell technology, and we are well-known for our in-house designed customizable signal conditioners and amplifiers.


Nominal Cross Section 1.5 mm
Nominal Current 8 A
Rated Voltage (III/2) 160 V
Contact Surface Material Tin
Contact Connection Type Socket
Number of Potentials 9
Number of Rows 1
Number of Positions 9
Number of Connections 9
Product range MC 1,5/..-ST
Pitch 3.5 mm
Connection Method Screw connection with tension sleeve
Screw Head Form L Slotted
Conductor/PCB Connection Direction 0 °
Plug-in System COMBICON MC 1,5
Locking Without
Mounting Flange Without

Technical Documents

9-Pin Terminal Block Data Sheet
Phoenix Contact Terminal Block Family CAD Drawing
Certificate Icon UL Compliance Phoenix Contact GmbH
