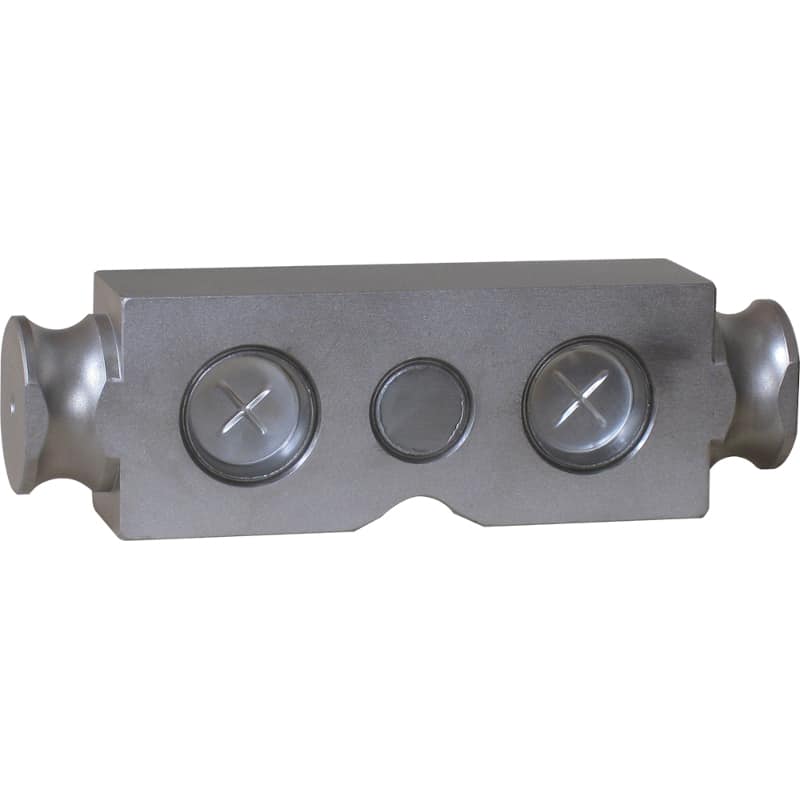

photo of anyload link end double ended beam load cell

ANYLOAD 102RHGT Alloy Steel Double-Ended Beam Load Cell

The ANYLOAD 102RHGT Double-Ended Beam Load Cell is a heavy-duty, IP68 water-resistant solution designed for high-capacity applications, particularly in truck scales. With a 60Klb rated capacity and weld-sealed alloy steel construction, it ensures reliable performance in harsh environments. This model is interchangeable with BIM SDB60Klb and meets leading international safety standards.

Capacity

Clear

Title	Quantity	Price
1-9	1 - 9	0% $1,012.00
10-24	10 - 24	5% $961.40
25-49	25 - 49	8% $931.04
50-99	50 - 99	11% $900.68
100+	100 +	15% $860.20

Tacuna Systems Price Match Guarantee

SKU: 102RHGT Category: Double-Ended Shear Beam

ANYLOAD 102RHGT Features

The ANYLOAD 102RHGT Double-Ended Beam Load Cell is a heavy-duty, high-capacity weighing solution designed for demanding applications, particularly in truck scales. With a 60Klb rated capacity, this load cell features a weld-sealed alloy steel construction that provides IP68 water resistance, ensuring reliable performance in harsh environments. The design includes link ends that allow for movement during the weighing process, enhancing its durability and accuracy under heavy loads. Interchangeable with the BIM SDB60Klb model, the 102RHGT also meets leading international safety standards, making it a robust and dependable choice for critical weighing applications.

Material: Nickel-plated alloy Steel
Rated Capacity: 60Klb
Full-Scale Output: 3mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP68
CE, RoHS, and Ex-certified

Available Option: 60Klb

Please contact us with product-related questions.

Specifications

ANYLOAD 102RHGT Load Cell Specifications

Rated Capacity	60Klb
Full-Scale Output	3mV/V ± 0.25%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.030%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.023%
Creep in 30 minutes	< ± 0.023%
Input Resistance	700Ω ± 10Ω
Output Resistance	700Ω ± 5Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0040% of Cn/k
Compensated Temperature Range	-10°C to 50°C/14°F to 122°F
Service Temperature Range	-30°C to 70°C/-20°F to 160°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Welded Seal
IP Rating	IP68

Technical Documents

	102RHGT Double-Ended Beam Load Cell Datasheet
	CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity
