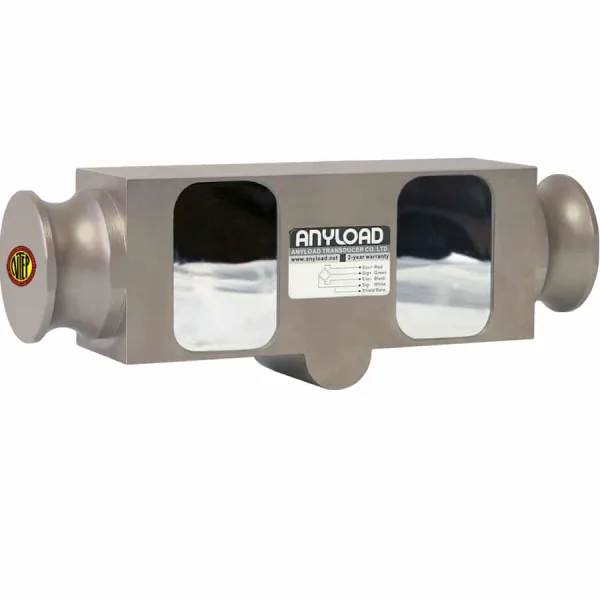

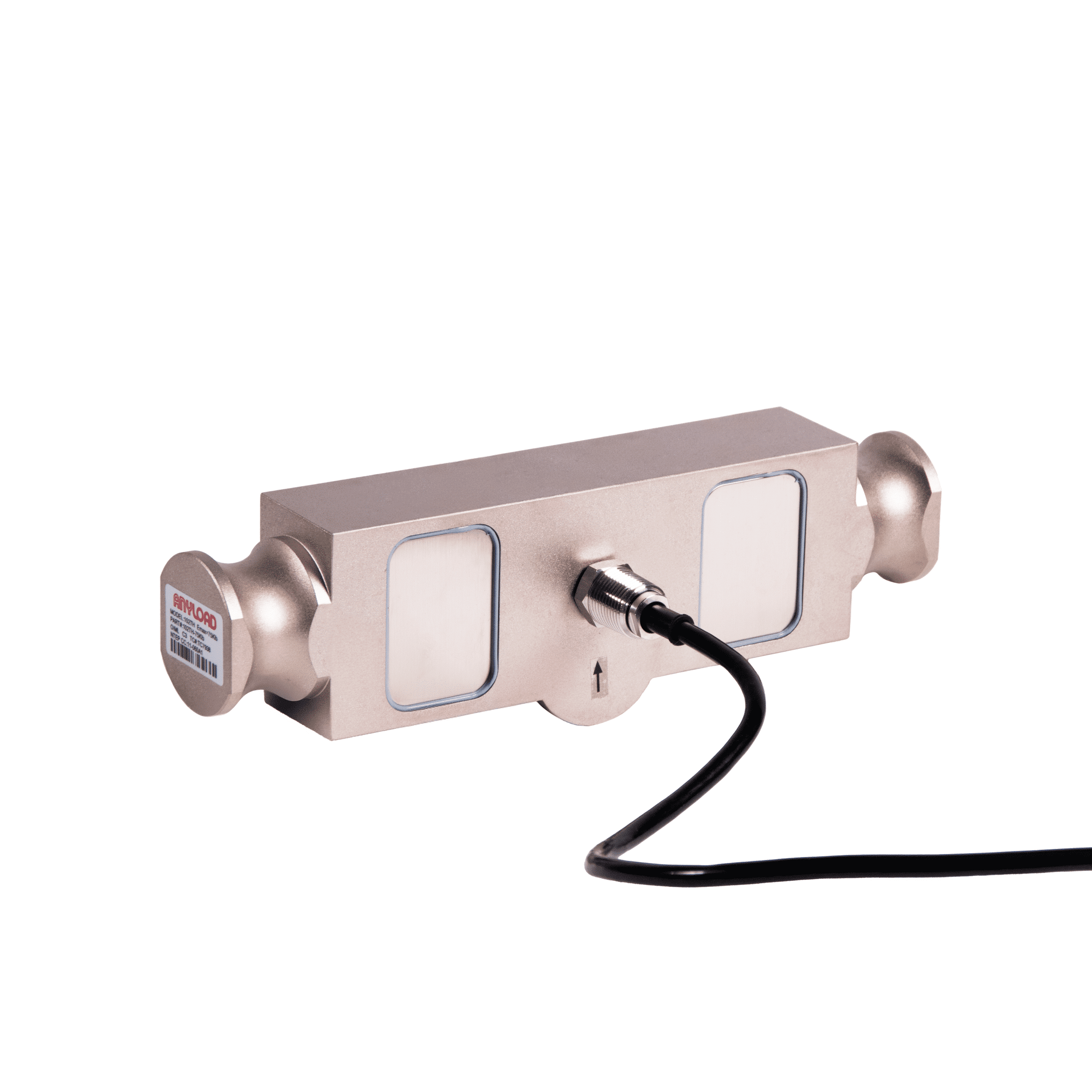

ANYLOAD 102TH Alloy Steel Double-Ended Beam Load Cell
The ANYLOAD 102TH Double-Ended Beam Load Cell is a compact, cost-effective solution for higher-capacity applications, available in 25Klb to 125Klb capacities. NTEP and OIML certified with IP67 water resistance, it features a durable, single-piece alloy steel construction with a nose bottom resistant to shearing and shock loading. Ideal for truck scales, this load cell is interchangeable with several industry-standard models.
This product offers surge-protected and rodent-protected options for the 75Klb capacity, along with an installation module for 50Klb-75Klb capacities to compensate for non-axial forces.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $526.00 |
10-24 | 10 - 24 | 5% $499.70 |
25-49 | 25 - 49 | 8% $483.92 |
50-99 | 50 - 99 | 11% $468.14 |
100+ | 100 + | 15% $447.10 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 102TH Features
The ANYLOAD 102TH Double-Ended Beam Load Cell is a robust and cost-effective compression weighing solution designed for higher-capacity applications, with rated capacities ranging from 25Klb to 125Klb. This NTEP and OIML-certified load cell features a compact, single-piece element construction with a nose bottom that is resistant to shearing and shock loading, making it ideal for demanding environments such as truck scales. Its environmentally sealed alloy steel construction provides IP67 water resistance, ensuring durability and reliability in harsh conditions. The 102TH is interchangeable with several industry-standard models, including Rice Lake RL 75040, Vishay Revere 9323, and Sensortronics 65040. Additionally, a lightning protection version is available for the 75Klb capacity, offering resistance to electrical surges, while an installation module is available for the 50Klb-75Klb capacities to compensate for non-axial forces and protect the load cell during operation.
- Material: Alloy Steel
- Rated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 30%
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
- OIML MAA C4, Y=15 000 certified from 11t-55t
- CE, RoHS, and Ex-certified
- Lightning Protection Version (75Klb-01 and 75Klb-02)
- Rodent Protection Version (75Klb-01 and 75Klb-RP)
Available Options: 25Klb, 40Klb, SE50Klb, SE60Klb, SE75Klb, 50Klb, 60Klb, 75Klb, 100Klb, 125Klb, SE50Klb-01-RP50ft, 60Klb-RP50ft, 60Klb-01-RP50ft, 75Klb-RP, 75Klb-01 & 75Klb-02.
Installation Module: ANYLOAD 102THM5
Please contact us with product-related questions.
Specifications
ANYLOAD 102TH Load Cell Specifications
Rated Capacity | 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb |
Full Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 700Ω ± 10Ω |
Output Resistance | 705Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
Interchangeable Cross Reference
ANYLOAD 102TH Equivalents
Manufacturer | Equivalent Model | Info |
Coti Global | CG-BE40 | |
Rice Lake | RL75040 | |
Vishay Celtron | DLB | |
Vishay Revere Transducers | 9323 | Vishay Revere Transducers 9323 has a stainless steel element for capacities 25Klb, 40Klb, SE50Klb, SE60Klb, SE75Klb |
Vishay Revere Transducers | 9903 | Vishay Revere Transducers 9903 has a stainless steel element for capacities 50Klb, 60Klb, 75Klb |
Vishay Sensortronics | 65040A |
