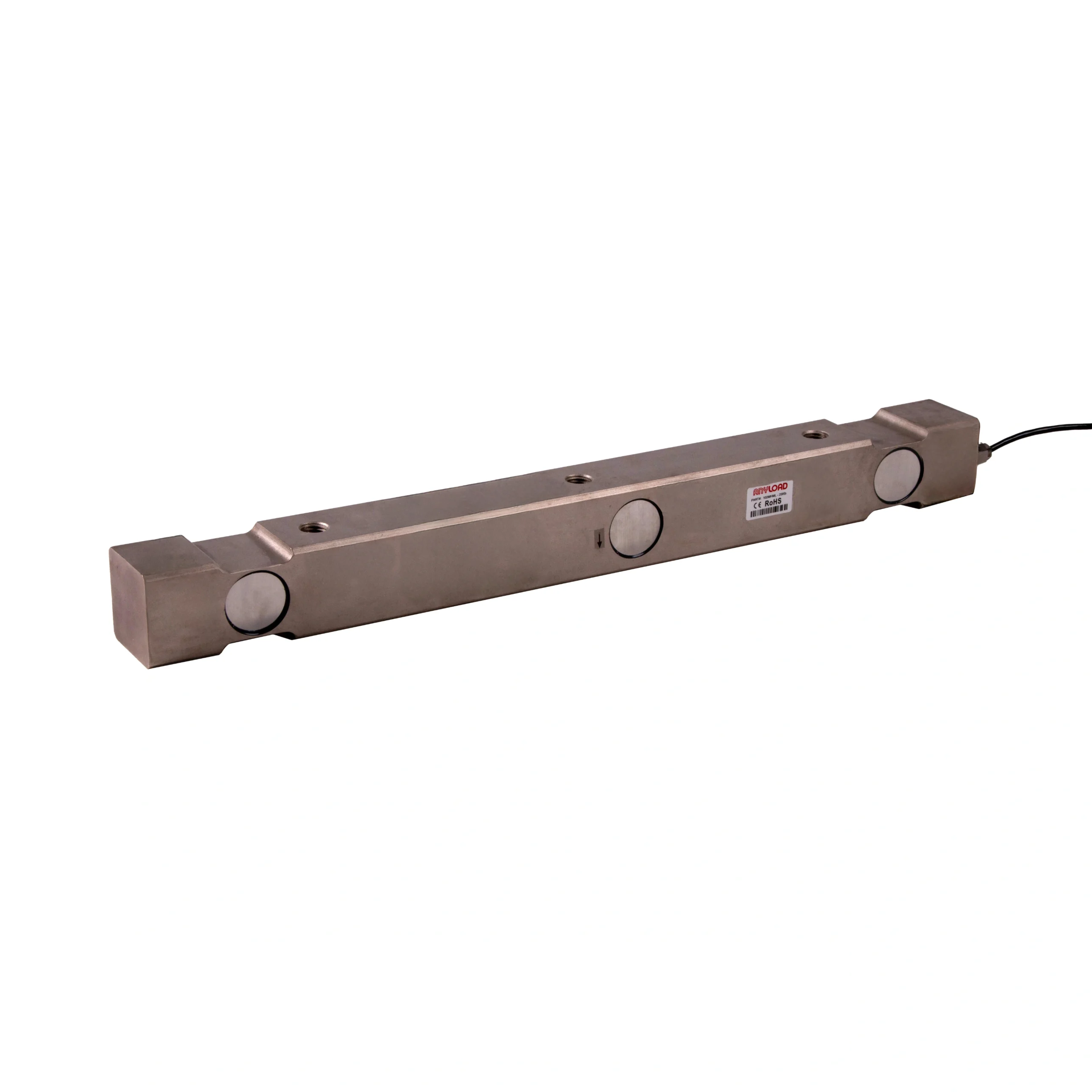

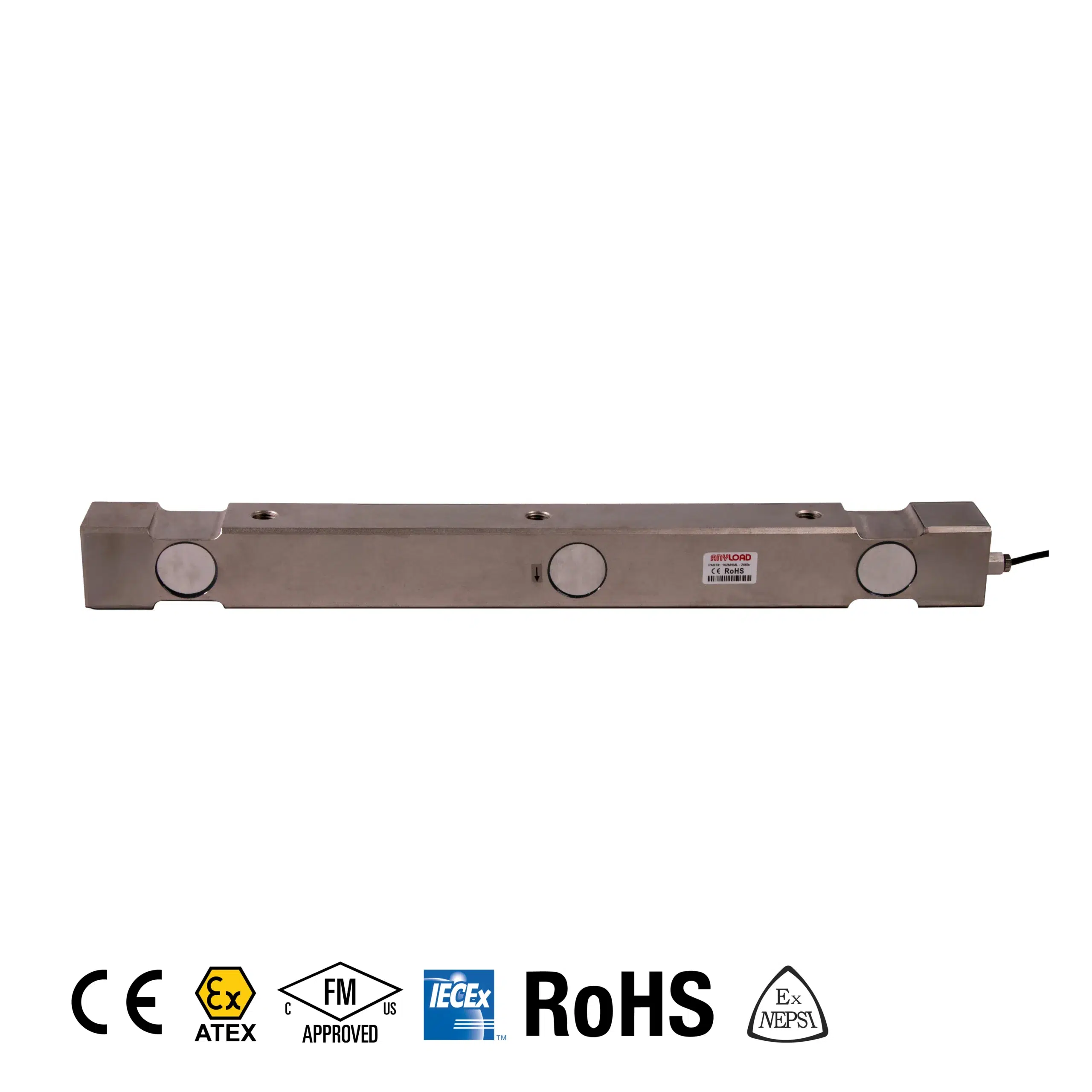

ANYLOAD 102MHML Alloy Steel Double-Ended Beam Load Cell
The ANYLOAD 102MHML Double-Ended Beam Load Cell is a robust, medium-capacity load cell with a 25Klb rating. Constructed from environmentally sealed alloy steel, it offers IP67 water resistance, making it ideal for onboard weighing and weighing-in-motion applications. This heavy-duty model meets leading international safety standards.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $988.00 |
10-24 | 10 - 24 | 5% $938.60 |
25-49 | 25 - 49 | 8% $908.96 |
50-99 | 50 - 99 | 11% $879.32 |
100+ | 100 + | 15% $839.80 |
ANYLOAD 102MHML Alloy Steel Double-Ended Beam Load Cell Features
The 102MHML Double-Ended Beam Load Cell is a heavy-duty, medium-capacity load cell with a 25Klb rated capacity. Constructed from environmentally sealed alloy steel, it boasts IP67 water resistance, ensuring reliable performance in harsh environments. This load cell is particularly well-suited for onboard weighing and weighing-in-motion applications, providing accurate and consistent measurements. Its robust design and superior construction meet leading international safety standards, making it a trusted choice for demanding weighing tasks. With its combination of durability and precision, the 102MHML is an excellent solution for various industrial applications.
- Material: Alloy Steel
- Rated Capacity: 25Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex certified
Available Option: 25Klb
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 102MHML Load Cell Specifications
Rated Capacity | 25Klb |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.030% |
Repeatability | < ± 0.010% |
Hysteresis Error | < ± 0.020% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 700Ω ± 15Ω |
Output Resistance | 700Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP67 |
Technical Documents
102MHML Double-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 102MHML Equivalents
Manufacturer | Model |
---|---|
Coti Global | CG-SLS* |
Massload | ML1100 |
