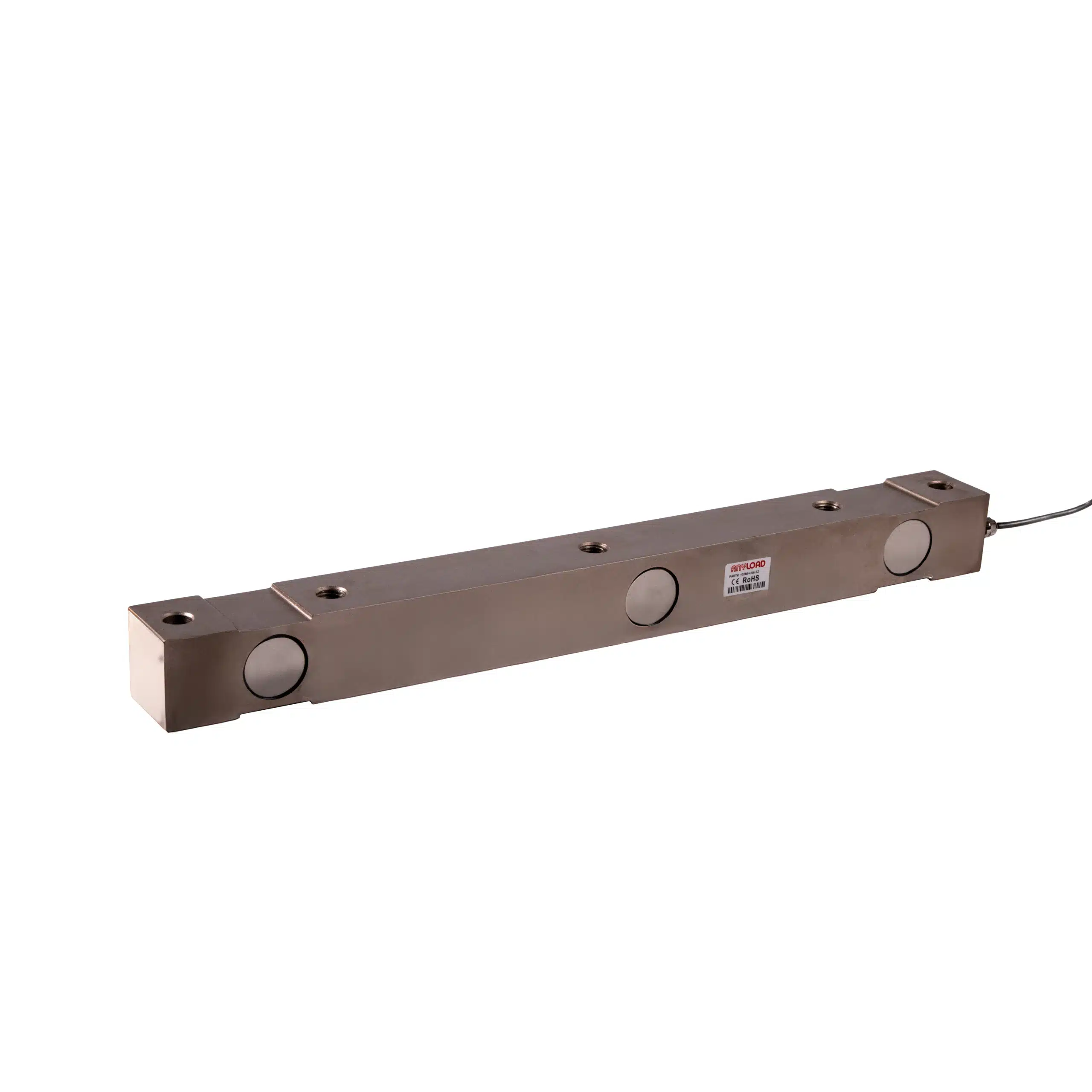

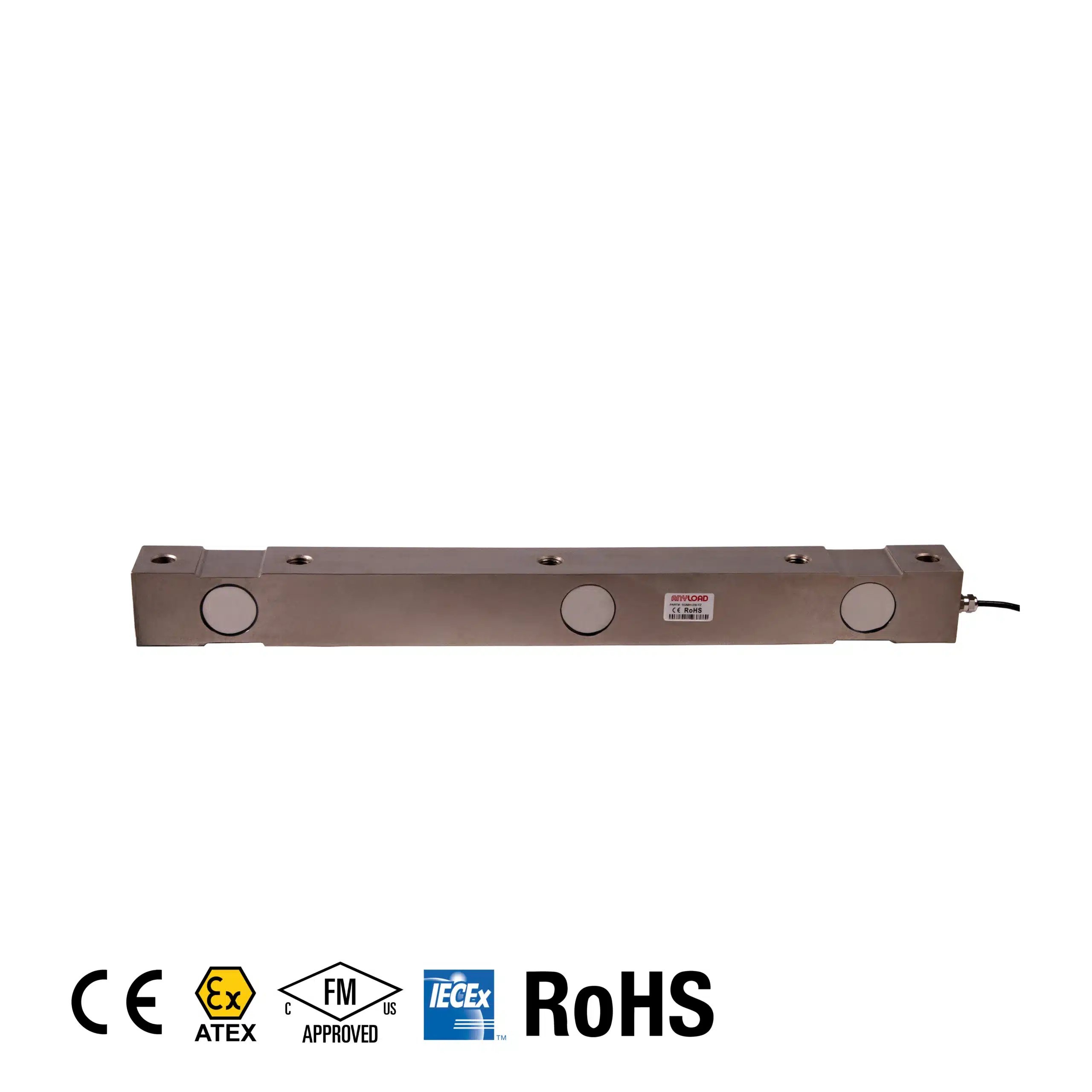

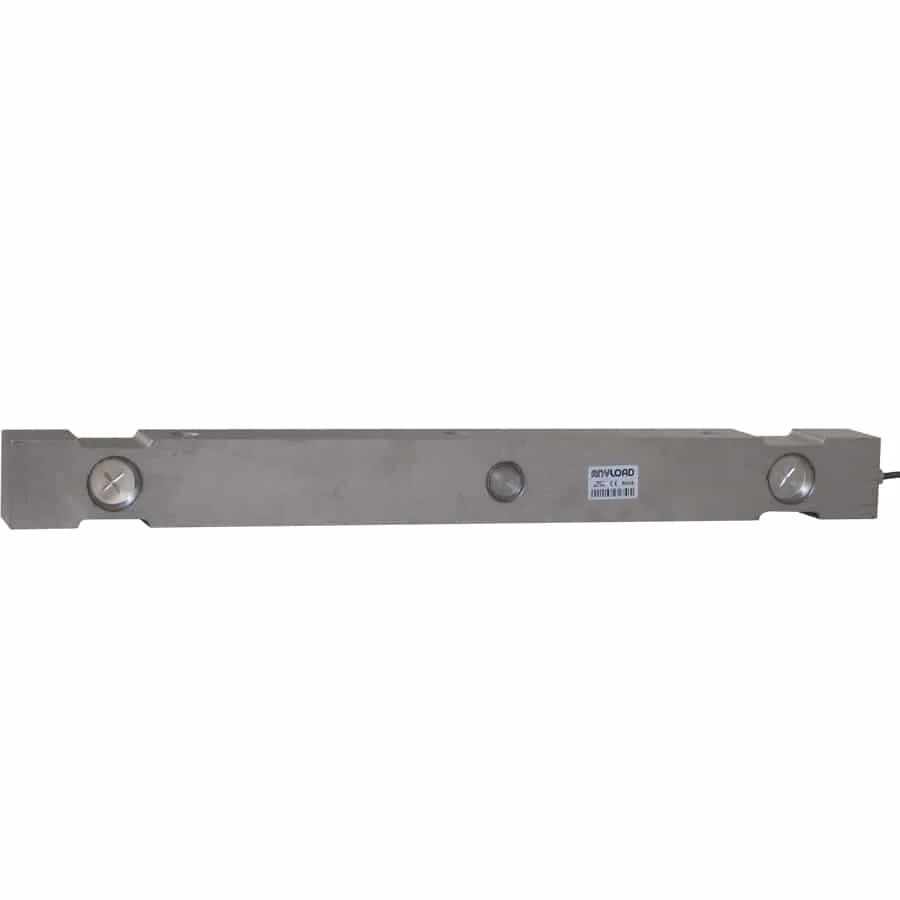

ANYLOAD 102MH Alloy Steel Double-Ended Beam Load Cell
The 102MH is a heavy-duty, double-ended beam load cell with a 25-ton capacity and IP67 water resistance. Built with welded seal alloy steel, it is ideal for onboard and in-motion weighing applications and meets international safety standards.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $996.00 |
10-24 | 10 - 24 | 5% $946.20 |
25-49 | 25 - 49 | 8% $916.32 |
50-99 | 50 - 99 | 11% $886.44 |
100+ | 100 + | 15% $846.60 |
ANYLOAD 102MH Features
The 102MH is a robust, heavy-duty double-ended beam load cell designed for medium-capacity applications, offering a rated capacity of up to 25 tons. Constructed from welded seal alloy steel, it provides exceptional durability and meets the stringent IP67 water resistance standard, making it ideal for use in harsh environments. This load cell is particularly well-suited for onboard weighing and weighing-in-motion applications, where accuracy and resilience are paramount. Its design ensures reliable performance even in demanding conditions, and it complies with leading international safety standards, ensuring both precision and safety. The 102MH combines strength, durability, and versatility, making it a top choice for industrial weighing needs.
- Material: Alloy Steel
- Rated Capacity: 25t
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex-certified
Available Option: 25t
Please contact us with any product-related questions.
Specifications
ANYLOAD 102MH Load Cell Specifications
Rated Capacity | 25t |
Full-Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.030% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 700Ω ± 10Ω |
Output Resistance | 700Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP67 |
Technical Documents
102MH Double-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
102MH-25t |
---|
