ANYLOAD QS3-S4 Stainless Steel Load Cell Kit
This ANYLOAD QS3-S4 load cell kit features NTEP/OIML approved load cells (2mV/V sensitivity), junction box, mounting feet and spacers, and a 20m PVC cable. All components are stainless steel for maximum durability in industrial weighing applications.
Other capacities and configurations available – please contact us with any questions.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,908.00 |
| 10 - 24 | $1,812.60 |
| 25 - 49 | $1,755.36 |
| 50 - 99 | $1,698.12 |
| 100 + | $1,621.80 |
ANYLOAD QS3-S4 Key Features

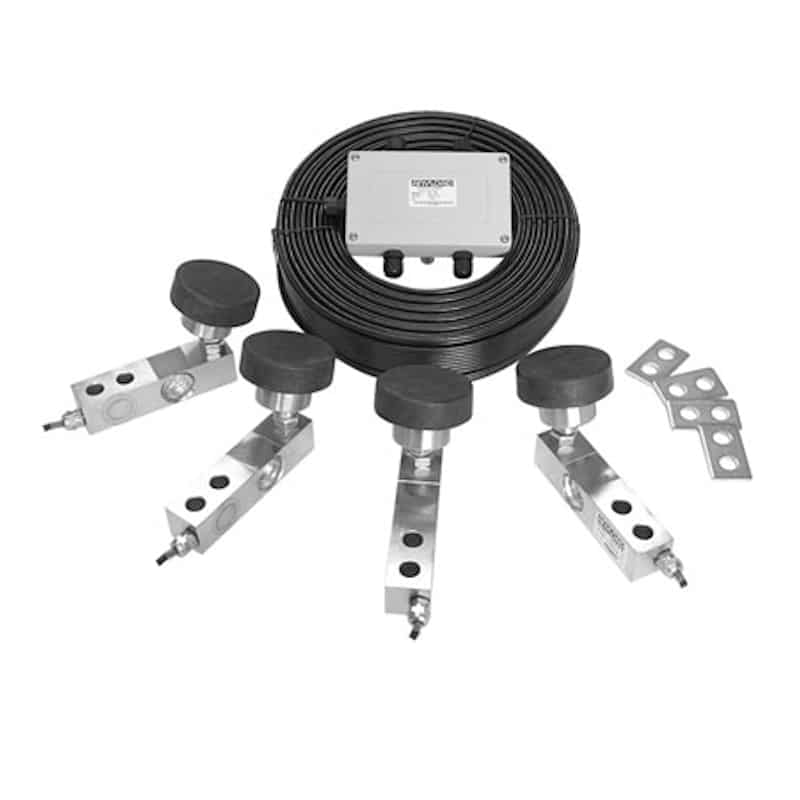

The complete ANYLOAD QS3-S4 set consists of 4 563YS single-ended shear beam load cells, 4 SPACERSS load cell spacers, 4 AMFSS active mounting feet, a J04ES-FS stainless junction box, and a CB4 20m PVC cable.
- All components other than cable are stainless steel
- NTEP certified load cells from 1Klb-10Klb
- OIML certified load cells from 3t-5t
- CE , RoHS and ExNepsi certified load cells
- Full Scale Output: 2mV/V ± 0.25%
- Junction box has integrated resistor networks
- Cable colors follow the ANYLOAD color code
Available options: QS3-S4-500lb, QS3-S4-1000lb, QS3-S4-2500lb, QS3-S4-4000lb, QS3-S4-5000lb, QS3-S4-50000lb SE, QS3-S4-10000lb, QS3-S4-15000lb, QS3-S4-20000lb
Please contact us with any product interfacing inquiries.
Specifications
QS3-S4 Stainless Steel Load Cell Kit Specifications
| Load Cell Capacity | Part No. | Shipping Weight (kg) |
| 250kg | QS3-S4-250kg | 7.6 |
| 500kg | QS3-S4-500kg | 7.6 |
| 1t | QS3-S4-1t | 7.6 |
| 2t | QS3-S4-2t | 7.6 |
| 3t | QS3-S4-3t | 11.4 |
| 5t | QS3-S4-5t | 11.4 |
| 500lb | QS3-S4-500lb | 7.6 |
| 1Klb | QS3-S4-1Klb | 7.6 |
| 2.5Klb | QS3-S4-2.5Klb | 7.6 |
| 4Klb | QS3-S4-4Klb | 7.6 |
| SE5Klb | QS3-S4-SE5Klb | 7.6 |
| 5Klb | QS3-S4-5Klb | 11.4 |
| 10Klb | QS3-S4-10Klb | 11.4 |
Technical Documents
QS3-S4 Stainless Steel Load Cell Kit DatasheetOnly logged in customers who have purchased this product may leave a review.
