ANYLOAD MK4-563RSM5 Weigh Module Kit
The ANYLOAD MK4-563RSM5 Kit is a complete solution for tank and hopper weighing, featuring four stainless steel single-ended beam load cells and modules. Designed for harsh and washdown environments, it is IP68/69K certified waterproof and ideal for chemical and food processing applications. The kit supports capacities up to 500kg and includes an IP67 water-resistant junction box and 65ft (20m) shielded cable. With OIML and NTEP-approved load cells, it ensures accurate readings and reliable performance in demanding conditions.
See the MK4-563YHM4 for an alloy steel single-ended shear beam option, or the MK4-102EHM2 for a double-ended shear beam option.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $4,082.00 |
10-24 | 10 - 24 | 5% $3,877.90 |
25-49 | 25 - 49 | 8% $3,755.44 |
50-99 | 50 - 99 | 11% $3,632.98 |
100+ | 100 + | 15% $3,469.70 |
ANYLOAD MK4-563RSM5 Features
The ANYLOAD MK4-563RSM5 Kit is a comprehensive solution for tank and hopper weighing, featuring four stainless steel single-ended beam load cells and modules. The kit is IP68/69K certified waterproof, making it ideal for chemical and food-related applications where harsh and washdown environments are common. Each load cell is OIML and NTEP-approved, ensuring accurate readings for capacities up to 500kg. Designed for ease of use, the baseplate includes two slots to facilitate installation. Common applications include batching, blending, and chemical and food processing. Additionally, the kit comes with an IP67 water-resistant junction box and 65ft (20m) of shielded cable, providing durability and reliability in demanding conditions.

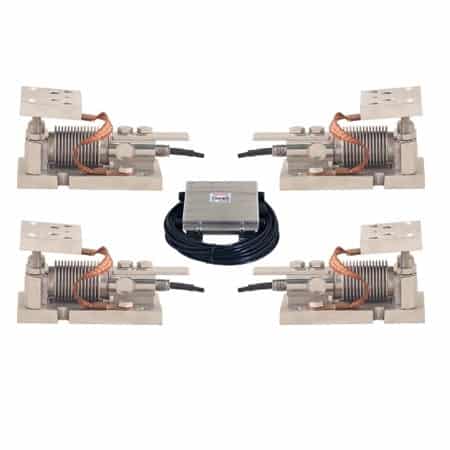

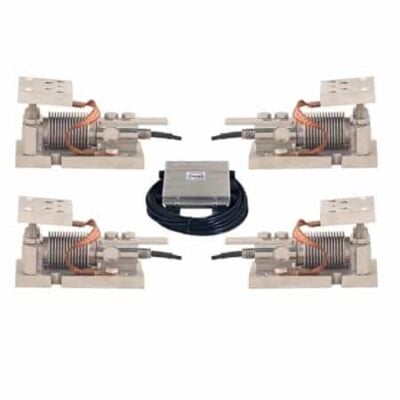

The complete ANYLOAD MK4-563RSM5 set consists of 4 ANYLOAD 563RS single-ended shear beam load cells, 4 563RSM5 stainless weigh modules, a J04SS junction box, and a CB4 20m PVC cable (5.1mm x20m) with both copper braid & foil shielding.
- CE, RoHS, and ExNepsi-certified, stainless steel load cells
- Uplift protection and overload protection
- Allowance for thermal expansion
- Water-resistant, stainless steel junction box equipped with corner (signal) trim potentiometers
- Conventional wiring and color code
Available Options: 10kg, 20kg, 50kg, 100kg, 200kg & 500kg.
Please contact us with any product-related questions.
Part Numbers
MK4-563RSM5 Load Cell Kit Options
Load Cell Capacity | Part No. | Shipping Weight (kg/lb) Approx. |
10kg | MK4-563RSM5-10kg-S | 12.0kg / 26.5lb |
20kg | MK4-563RSM5-20kg-S | 12.0kg / 26.5lb |
50kg | MK4-563RSM5-50kg-S | 12.0kg / 26.5lb |
100kg | MK4-563RSM5-100kg-S | 12.0kg / 26.5lb |
200kg | MK4-563RSM5-200kg-S | 12.0kg / 26.5lb |
500kg | MK4-563RSM5-500kg-S | 12.0kg / 26.5lb |
Product Documents
MK4-563RSM5 Data Sheet | |
MK4-563RSM5 Product Brochure |
Interchangeable Cross Reference
Manufacturer | Model |
---|---|
Rice Lake | 1700HE |
